Inconel Needle Valves Manufacturer, Supplier & Exporter
From cryogenic LNG terminals to high-temperature gas turbines, from offshore oil platforms to nuclear reactors — Inconel needle valves by Kalpataru Piping Solutions are engineered for precision flow control where no other alloy survives. Manufactured in Inconel 600, Inconel 625, Inconel 601, Inconel 718 and Incoloy 825, our needle valves deliver exceptional resistance to oxidation, pitting, crevice corrosion and chloride stress corrosion cracking at pressures from 3,000 PSI to 60,000 PSI.
Each valve is precision-forged or bar-stock machined from mill-certified material, tested to API 598 and stamped with EN 10204 3.1 Mill Test Reports. Special services include NACE MR0175/ISO 15156 compliance for sour-gas duty, PMI verification, fire-safe design per API 607, and low-temperature sub-zero testing to −120°C.
With 13+ needle valve configurations — compression, instrument, hydraulic, high-pressure, 3-way, panel-mounted, block & bleed, gauge and bleed — Kalpataru supplies manifold valves, ball valves and instrumentation fittings to refineries, chemical plants and marine engineers across 80+ countries.
Inconel Needle Valves Grade Selection Guide
Grade | Best For | Limitation |
|---|---|---|

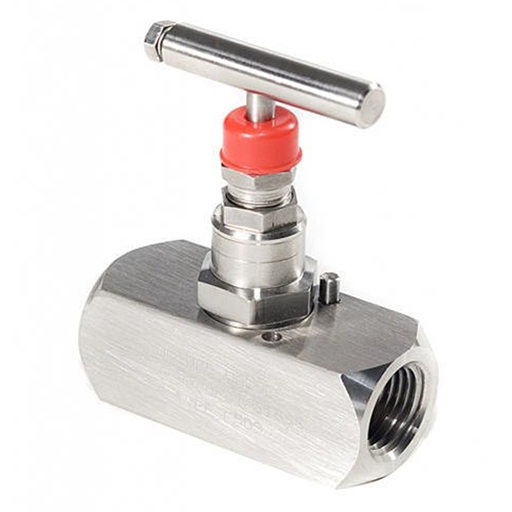

Inconel 600 | High-temp oxidising service, nuclear, furnace | Lower strength vs 625; limited Mo |
Inconel 625 | Seawater, sour gas, cryogenic, offshore | Higher cost; precipitation-hardened only above 650°C |

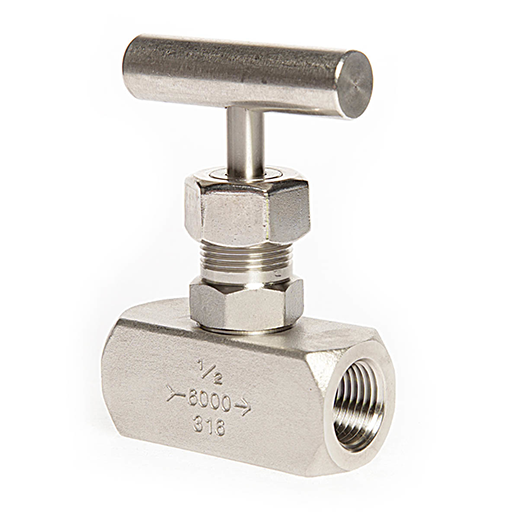

Inconel 601 | High-temp oxidation >1150°C, thermal cycling | Less corrosion resistance in aqueous chloride |
Inconel 718 | Ultra-high strength, aerospace, rocket components | Complex heat treatment; not for >700°C sustained |

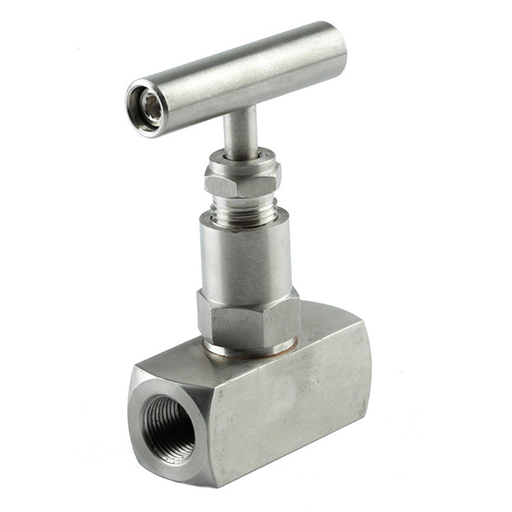

Incoloy 825 | H₂SO₄ / H₃PO₄ / sour gas / reducing acids | Lower strength than 625 or 718 |
Technical Data
Inconel Needle Valves Chemical Composition
Grade | UNS | Ni (%) | Cr (%) | Mo (%) | Fe (%) | Nb+Ta (%) | Other |
|---|---|---|---|---|---|---|---|
Inconel 600 | N06600 | 72 min | 14–17 | — | 6–10 | — | Cu ≤0.5, C ≤0.15 |
Inconel 625 | N06625 | 58 min | 20–23 | 8–10 | 5 max | 3.15–4.15 | C ≤0.10, Mn ≤0.50 |
Inconel 601 | N06601 | 58–63 | 21–25 | — | Bal | — | Al 1.0–1.7, C ≤0.10 |
Inconel 718 | N07718 | 50–55 | 17–21 | 2.8–3.3 | Bal | 4.75–5.50 | Ti 0.65–1.15, Al 0.20–0.80 |
Incoloy 825 | N08825 | 38–46 | 19.5–23.5 | 2.5–3.5 | Bal | — | Ti 0.6–1.2, Cu 1.5–3.0 |
Inconel Needle Valves Mechanical Properties
Grade | Tensile Strength | Yield Strength (0.2%) | Elongation | Density | Melting Range |
|---|---|---|---|---|---|
Inconel 600 | 655 MPa (95 ksi) | 310 MPa (45 ksi) | 40% | 8.47 g/cm³ | 1354–1413°C |
Inconel 625 | 930 MPa (135 ksi) | 517 MPa (75 ksi) | 42.5% | 8.44 g/cm³ | 1290–1350°C |
Inconel 601 | 689 MPa (100 ksi) | 276 MPa (40 ksi) | 30% | 8.11 g/cm³ | 1320–1370°C |
Inconel 718 | 1241 MPa (180 ksi) | 1034 MPa (150 ksi) | 12% | 8.19 g/cm³ | 1260–1336°C |
Incoloy 825 | 586 MPa (85 ksi) | 241 MPa (35 ksi) | 30% | 8.14 g/cm³ | 1370–1400°C |
Inconel Needle Valves Equivalent Grades
Grade | ASTM | Werkstoff Nr. | JIS | EN |
|---|---|---|---|---|
Inconel 600 | B166 / B167 / B168 | 2.4816 | NCF600 | NiCr15Fe |
Inconel 625 | B443 / B444 / B446 | 2.4856 | NCF625 | NiCr22Mo9Nb |
Inconel 601 | B166 / B168 | 2.4851 | NCF601 | NiCr23Fe |
Inconel 718 | B637 | 2.4668 | NCF718 | NiCr19Fe19Nb5Mo3 |
Incoloy 825 | B424 / B425 / B423 | 2.4858 | NCF825 | NiCr21Mo |
All grades supplied with EN 10204 3.1 Mill Test Reports (3.2 on request). Raw material sourced from Special Metals, Haynes, VDM Metals and other approved mills.
Pressure-Temperature Ratings
Kalpataru Inconel needle valves are rated from −120°C cryogenic service up to +1,100°C for high-temperature furnace and gas turbine applications depending on grade. Pressure ratings vary by size, body type (forged bar stock vs. casting) and service class.
Pressure Ratings by Grade and Size (Threaded NPT / BSP Body)
Grade | Size | Standard Pressure | High Pressure | Ultra HP |
|---|---|---|---|---|
Inconel 600 | 1/8″ – 1″ | 6,000 PSI | 15,000 PSI | 20,000 PSI |
Inconel 600 | 1/4″ – 9/16″ | 15,000 PSI | 30,000 PSI | 60,000 PSI |
Inconel 625 | 1/8″ – 2″ | 6,000 PSI | 10,000 PSI | 20,000 PSI |
Inconel 601 | 1/8″ – 1″ | 6,000 PSI | 10,000 PSI | 15,000 PSI |
Inconel 718 | 1/4″ – 1″ | 10,000 PSI | 20,000 PSI | 30,000 PSI |
Incoloy 825 | 1/8″ – 2″ | 6,000 PSI | 10,000 PSI | 20,000 PSI |
Temperature Range by Grade
Grade | Minimum Temperature | Maximum Temperature | Notes |
|---|---|---|---|
Inconel 600 | −196°C (−321°F) | +1,100°C (+2,012°F) | Excellent strength retention up to 650°C; oxidation resistance above 650°C |
Inconel 625 | −196°C (−321°F) | +980°C (+1,800°F) | Superior corrosion + cryogenic performance; solution-annealed for sub-zero |
Inconel 601 | −40°C (−40°F) | +1,250°C (+2,282°F) | Best oxidation resistance of all grades; limited cryogenic use |
Inconel 718 | −120°C (−184°F) | +700°C (+1,292°F) | Highest strength; preferred for aerospace and high-pressure hydraulics |
Incoloy 825 | −196°C (−321°F) | +450°C (+842°F) | Best aqueous corrosion resistance; not for sustained high-temperature |
Pressure Ratings by Valve Body Type
Body Type | Pressure Class | Typical Application |
|---|---|---|
Forged body (bar stock) | 6,000 – 60,000 PSI | Instrumentation, process, HP hydraulic |
Round / square hex body | 3,000 – 20,000 PSI | Metric tube systems, DIN applications |
Flanged body | ASME Class 900 – 2500 | Pipeline isolation, block & bleed |
Socket weld / butt weld | 3,000 – 15,000 PSI | Crevice-free piping, high-purity |
Panel mount body | 3,000 – 10,000 PSI | Instrument panels, manifold systems |
Thermal expansion coefficient (Inconel 600, cryogenic): 12.8 μm/m°C. Thermal conductivity: 9.70 W/mK. All P-T ratings subject to ASME B16.34 and manufacturer hydrostatic test certificates.
Design Standards & End Connections
Applicable Design & Testing Standards
Standard | Scope |
|---|---|
ASME B16.34 | Pressure-temperature ratings; valve materials and dimensions |
BS 1868 | Steel check valves; dimensional requirements for flanged and butt-weld |
ASME B16.10 | Face-to-face and end-to-end dimensions of valves |
ASME B16.5 | Pipe flanges and flanged fittings up to NPS 24 / Class 2500 |
API 598 | Valve inspection and testing; shell, seat and closure tests |
API 6D | Pipeline valves; design, manufacture and testing |
MSS SP-55 | Quality standard for steel castings (visual examination) |
MSS SP-25 | Standard marking system for valves, fittings, flanges and unions |
MSS SP-110 | Ball valves threaded, socket-welding, solder-joint or flanged |
NACE MR0175 / ISO 15156 | Sour-gas (H₂S) service; material requirements and hardness limits |
API 607 | Fire-testing for soft-seated valves |
PIP PNDMV09N | Instrumentation needle valve specifications (3-way) |
BS 7174 Part 4 | Manual valves for process applications |
MIL-V-24586 | Military specification for needle valves |
EN 10204 | Inspection certificate types (3.1 mill test report, 3.2 on request) |
ANSI B1.20.1 | Pipe threads (NPT) |
ASME B16.11 | Forged fittings, socket-welding and threaded |
End Connection Types
Connection | Standard | Available Sizes |
|---|---|---|
NPT (National Pipe Thread) | ANSI B1.20.1 | 1/8″ – 2″ |
BSPP (British Standard Parallel Pipe) | BS 2779 | 1/8″ – 2″ |
BSPT (British Standard Taper Pipe) | BS 21 / ISO 7/1 | 1/8″ – 2″ |
SAE (Society of Automotive Engineers) | SAE J514 | 1/4″ – 1″ |
JIC (Joint Industry Council) | 37° flare | 1/4″ – 1″ |
UNF (Unified National Fine thread) | ASME B1.1 | 1/4″ – 1″ |
Metric Thread | DIN 13 | 6 mm – 50 mm |
Socket Weld | ASME B16.11 | 1/4″ – 2″ |
Butt Weld | ASME B16.25 | 1/4″ – 2″ |
Tube End (compression) | Double ferrule | 6 mm – 25 mm OD |
Flanged | ASME B16.5 Class 150–2500 | 1/2″ – 2″ |
Panel Mount | Bulkhead locknut | 1/4″ – 1/2″ |
Inconel Needle Valve Types
Valve Type | Size Range | Pressure Rating | End Connection | Key Features |
|---|---|---|---|---|

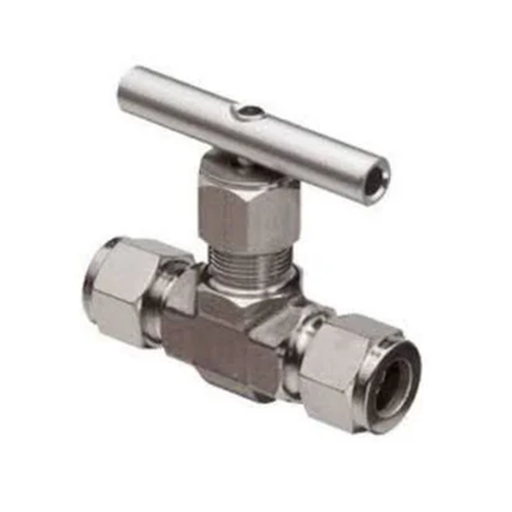

Compression Needle Valve | 1/4″ – 1″ | Up to 20,000 PSI | Compression fitting | Double-ferrule tube grip, leak-tight seal |
Instrument Needle Valve | 1/4″ – 1″ | Up to 10,000 PSI | NPT / BSPP / SAE | Precision orifice, low Cv for metering |
Hydraulic Needle Valve | 1/4″ – 2″ | Up to 15,000 PSI | NPT / BSP / Flange | High-cycle rated, metal-to-metal seat |
High Pressure Needle Valve | 1/4″ – 9/16″ | 30,000–60,000 PSI | NPT / Tube end | Ultra-HP rated, used in test & hydraulic rigs |
Angle Needle Valve | 1/4″ – 1″ | Up to 10,000 PSI | NPT / BSPP | 90° flow turn, compact installation |
Flow Control Needle Valve | 1/4″ – 1″ | Up to 15,000 PSI | NPT / BSP / SAE | Fine metering stem, lock nut, graduated handle |
3-Way Needle Valve | 1/4″ – 1″ | Up to 10,000 PSI | NPT / BSPP | T-flow or L-flow diversion; double-orifice body |
Panel Mounted Needle Valve | 1/4″ – 1/2″ | Up to 10,000 PSI | NPT / BSPP | Bulkhead mount, knurled locknut |
Socket Weld Needle Valve | 1/4″ – 2″ | Up to 15,000 PSI | Socket weld (SW) | Weld-end body, crevice-free joint |
Butt Weld Needle Valve | 1/4″ – 2″ | Up to 15,000 PSI | Butt weld (BW) | Full-bore weld, used in high-purity systems |
Tube End Needle Valve | 6 mm – 25 mm | Up to 15,000 PSI | Tube end / Ferrule | Metric / imperial tube OD, orbital-weld ready |
Block & Bleed Needle Valve | 1/4″ – 1″ | Up to 10,000 PSI | NPT / SW / Flange | Isolation + bleed in one body; safe venting |
Gauge Needle Valve | 1/4″ – 1/2″ | Up to 10,000 PSI | NPT / BSPP | Root isolation for pressure gauges |
Bleed Needle Valve | 1/4″ – 1/2″ | Up to 6,000 PSI | NPT | Vent / purge port; spring-loaded or manual |
All types available in Inconel 600, Inconel 625, Inconel 601, Inconel 718 and Incoloy 825 on request. Metric sizes 6 mm – 50 mm also available.
Applications of Inconel Needle Valves
Inconel needle valves are specified wherever standard stainless or carbon steel fails — high temperature, aggressive corrosion, extreme pressure or nuclear-grade cleanliness. Kalpataru supplies these industries globally:
| Industry | Typical Application | Grade Preferred |
|---|---|---|
| Oil & Gas (Upstream) | Wellhead instrumentation, HP choke lines, sour-gas service | Inconel 625, Incoloy 825 |
| Oil & Gas (Downstream) | Refinery instrument manifolds, hydrogen service lines | Inconel 600, 625 |
| Offshore Platforms | Subsea control systems, seawater cooling lines, umbilical fittings | Inconel 625 |
| Petrochemical | Chlorine, hydrochloric acid, sulfuric acid metering, polymer reactors | Inconel 625, Incoloy 825 |
| Chemical Processing | Nitric acid, organic acid, halide-bearing process streams | Inconel 600, 625 |
| Nuclear Power | Reactor coolant loop isolation, radioactive fluid metering | Inconel 600, 718 |
| Aerospace | Hydraulic test rigs, fuel metering, rocket engine propellant lines | Inconel 718, 625 |
| Marine / Naval | Seawater cooling, ballast systems, bilge instrumentation | Inconel 625, Incoloy 825 |
| Gas Turbines | Fuel gas metering, compressor bleed air, combustion zone isolation | Inconel 718, 601 |
| Power Generation | Heat recovery steam generators, supercritical boiler instrumentation | Inconel 601, 625 |
| Pollution Control | Flue gas desulphurisation (FGD) slurry lines, wet scrubber controls | Incoloy 825, Inconel 625 |
| Cryogenics / LNG | Liquefied natural gas transfer, cryogenic sampling, N₂ / O₂ service | Inconel 625 |
| Pharmaceutical | High-purity gas metering, CIP/SIP systems (BW/SW connections) | Inconel 625 |
| Defence / Military | Submarine hydraulic systems, MIL-V-24586 qualified valve assemblies | Inconel 718 |
Why Inconel Outperforms Stainless in These Services
- Chloride SCC Immunity: Inconel 625 and Incoloy 825 are free from chloride stress corrosion cracking that fails 316L at >60°C.
- High-Temperature Strength: Inconel 718 retains 1,034 MPa yield at room temperature and over 800 MPa above 500°C.
- Oxidation Resistance: Inconel 601’s aluminium-enhanced Cr₂O₃/Al₂O₃ scale survives 1,250°C continuous service.
- Pitting & Crevice Resistance: Mo+Nb matrix of Inconel 625 resists pitting and crevice corrosion in seawater, FGD slurry and acid chloride environments where 317L or duplex stainless would corrode.
- Precipitation Hardening: Inconel 718’s niobium-stabilised γ’’ phase provides double the strength of 625 without brittle transformation.
Dimensional Data
All dimensions in millimetres (mm). Face-to-face (F×F) measurements per ASME B16.10 / manufacturer standard. Custom face-to-face available on request.
Inconel 600 (UNS N06600) — Threaded NPT Needle Valve F×F Dimensions
Size (NPS) | Port / Orifice (A mm) | Body Length (B mm) | Face-to-Face (C mm) | End-to-End (D mm) |
|---|---|---|---|---|
1/8″ | 19 | 50 | 65 | 45 |
1/4″ | 22 | 50 | 70 | 50 |
3/8″ | — | 55 | 75 | 55 |
1/2″ | 30 | 65 | 85 | 55 |
3/4″ | 36 | 75 | 95 | 65 |
1″ | 40 | 85 | 100 | 65 |
1-1/4″ | 54 | 90 | 120 | 80 |
1-1/2″ | 62 | 110 | 130 | 88 |
2″ | 72 | 120 | 160 | 95 |
Inconel 625 (UNS N06625) — Threaded NPT Needle Valve F×F Dimensions
Size (NPS) | Port / Orifice (A mm) | Body Length (B mm) | Face-to-Face (C mm) | End-to-End (D mm) |
|---|---|---|---|---|
1/8″ | 19 | 50 | 65 | 45 |
1/4″ | 22 | 50 | 72 | 52 |
1/2″ | 30 | 65 | 88 | 58 |
3/4″ | 36 | 75 | 97 | 67 |
1″ | 40 | 85 | 103 | 68 |
1-1/2″ | 62 | 112 | 133 | 90 |
2″ | 72 | 122 | 163 | 97 |
Compression / Tube End Needle Valve — Metric Sizes (Inconel 600 / 625)
Tube OD | A (mm) | B (mm) |
|---|---|---|
6 mm | 32 | 16 |
8 mm | 33 | 16.5 |
10 mm | 34 | 17 |
12 mm | 35 | 17.5 |
1/4″ (6.35 mm) | 32 | 16 |
1/2″ (12.70 mm) | 35 | 17.5 |
1″ (25.40 mm) | 70 | 35 |
A = Overall length; B = Orifice depth / bonnet length. Socket weld and butt weld F×F per ASME B16.10. Flanged end F×F per ASME B16.10 / API 6D per class rating.
Testing, Inspection & Quality Control
Every Kalpataru Inconel needle valve undergoes an 8-stage QC process before despatch. No valve leaves the facility without a full test dossier traceable to mill heat number.
API 598 Hydrostatic & Seat Tests
Test Type | Medium | Test Pressure | Duration | Acceptance |
|---|---|---|---|---|
Shell (Body) Hydrostatic | Water / Kerosene | 1.5 × rated CWP | 2 min (NPS ≤1″) | Zero visible leakage |
Seat (Closure) Test | Water / Kerosene | 1.1 × rated CWP | 2 min (NPS ≤1″) | Zero seat leakage |
Low-Pressure Closure | Air / Nitrogen | 80–10 PSI | 15 sec | Zero leakage (API 598 § 5.5) |
Backseat Hydrostatic | Water | 1.5 × rated CWP | 2 min | Zero backseat leakage |
High-Pressure Gas Test (optional) | Nitrogen / He | Per rated CWP | Per customer spec | 0 bubble / 0 ppm leak |
Non-Destructive Examination (NDE)
NDE Method | Scope | Standard |
|---|---|---|
PMI (Positive Material Identification) | 100% of bodies and bonnets | ASTM E1476 / client spec |
Dye Penetrant (PT) | Weld areas and machined surfaces | ASME Sec. V Art. 6 |
Magnetic Particle (MT) | Ferromagnetic components | ASTM E709 |
Radiography (RT) | Cast or welded critical sections | ASME Sec. V Art. 2 |
Ultrasonic (UT) | Forged bodies above DN 50 | ASME Sec. V Art. 5 |
Hardness Testing | NACE sour-gas duty valves (HRC ≤22) | NACE MR0175 |
Certificates & Documentation Available
- EN 10204 3.1 Mill Test Reports (standard)
- EN 10204 3.2 Third-Party Witnessed MTRs (on request)
- API 598 Hydrostatic Test Certificate
- NACE MR0175 / ISO 15156 Compliance Certificate
- PMI Report with XRF spectrometer printout
- Dimensional Inspection Report (per ASME B16.34 / B16.10)
- Paint / Surface Finish Certificate
- Packing List, COO (Certificate of Origin), Health Certificate for export
- ASME B31.3 Weld Procedure Qualification (SW / BW valve bodies)
- API 607 Fire Test Certificate (on request)
8-Stage QC Process
- Raw Material Verification — PMI + review of mill heat certificates before production release
- Dimensional Inspection — CNC-machined dimensions checked to drawing tolerance ±0.05 mm
- Surface Finish Check — Ra verified (polished or as-machined per order spec)
- Seat & Stem Leak Test — bench test at 1.5× CWP before assembly
- Assembly Torque Check — packing gland torque and stem travel verified
- API 598 Final Test — hydrostatic shell, seat and backseat tests; results logged
- Marking & Identification — stamped per MSS SP-25 (size, material, pressure class, heat no.)
- Final Documentation & Packing — test dossier, MTR, certificates packed with valve; export crating where required
Why Kalpataru Piping Solutions
Kalpataru Piping Solutions is a PED-compliant, ISO 9001:2015 certified manufacturer and exporter of Inconel valves, Inconel pipe fittings and Inconel tube fittings headquartered in India, with active export operations to 80+ countries across the Middle East, Europe, Southeast Asia, the Americas and Africa.
Manufacturing Capabilities
Capability | Detail |
|---|---|
In-house CNC machining | Precision turning and milling to ±0.05 mm dimensional tolerance |
Forging facility | Bar-stock and die-forged bodies up to NPS 2″ |
Heat treatment | Solution annealing, stress relief, age hardening (Inconel 718) in-house |
Surface treatment | Electropolishing, passivation, Xylan/PTFE coating, zinc plating |
Testing lab | API 598 hydro bench, PMI (XRF), hardness tester, PT/MT/UT on-site |
Material traceability | Heat-to-heat traceability from mill to finished valve |
Certifications & Approvals
- ISO 9001:2015 Quality Management System
- PED 2014/68/EU (Pressure Equipment Directive)
- EN 10204 3.1 / 3.2 Mill Test Reports
- NACE MR0175 / ISO 15156 (sour service)
- API 607 Fire-Safe design (on request)
- ASME B31.3 Weld Procedure Qualification
- Lloyd’s / Bureau Veritas / DNV Third-Party Inspection (on request)
Special Services
- NACE / Sour Gas: Hardness controlled to HRC ≤22; HIC-tested material available; full NACE compliance dossier.
- Low Temperature: Cryogenic valves tested to −196°C (Inconel 625 / 600); Charpy impact tested per ASTM A370.
- High Pressure: Ultra-HP valves rated to 60,000 PSI with CNC-machined mono-block bodies.
- Fire Safe: API 607 fire test certification for soft-seated configurations.
- PMI Verified: 100% positive material identification with XRF printout in the test dossier.
- Short Lead Time: Standard grades ex-stock or 4–6 weeks from raw material order.
- Custom Machining: Custom face-to-face, ported bodies, dual-orifice, ANSI Class 2500 flanged ends.
Why Buyers Choose Kalpataru
- Grade Depth: Five Inconel/Incoloy grades with individual Inconel 600, Inconel 601 and Inconel 625 needle valve product pages — more specification detail than any competitor.
- Cross-Supply: Single-source supply for Inconel ball valves, manifold valves, instrumentation ball valves and tubes reduces vendor qualification effort.
- Export Expertise: DDP, FOB, CIF Incoterms; ATA carnet, ECGC-backed shipments; experience in US, EU, GCC and ASEAN import compliance.
- Responsive Engineering: Dedicated technical sales team for material selection, NACE compliance queries and custom drawing review within 24 hours.
Related Products — Inconel & Nickel Alloy Range
Product | Grade(s) | URL |
|---|---|---|
Inconel 600 (N06600) | /inconel-600-needle-valve-supplier-exporter/ | |
Inconel 625 (N06625) | /inconel-625-needle-valve-supplier-exporter/ | |
Inconel 601 (N06601) | /inconel-601-needle-valve-supplier-exporter/ | |
600, 625, 601 | /inconel-ball-valves-supplier/ | |
Inconel 600 | /inconel-600-manifold-valves-supplier-exporter/ | |
Inconel 625 | /inconel-625-manifold-valves-supplier-exporter/ | |
Inconel 601 | /inconel-601-manifold-valves-supplier-exporter/ | |
Inconel 600 | /inconel-600-instrumentation-ball-valves-supplier-exporter/ | |
Inconel 625 | /inconel-625-instrumentation-ball-valves-supplier-exporter/ | |
600, 601, 625 | /inconel-pipe-fittings/ | |
Inconel 625 | /inconel-625-tube-fittings-supplier-exporter/ | |
Inconel 600 | /inconel-600-tube-fittings-supplier-exporter/ | |
600, 601, 625 | /inconel-tubes/ | |
600, 625 | /inconel-flanges/ | |
All grades | /valves/ |
FAQs Inconel Needle Valves
Kalpataru Inconel 625 needle valves are available up to 20,000 PSI in standard forged bodies and up to 60,000 PSI in ultra-high-pressure mono-block configurations (sizes 1/4″ – 9/16″). Temperature range: −196°C to +980°C.
Inconel 600 excels in high-temperature oxidising environments (up to 1,100°C) and nuclear applications; it lacks molybdenum so has lower resistance to chloride pitting. Inconel 625 adds 8–10% Mo and 3.15–4.15% Nb, making it superior for seawater, sour gas, cryogenic and chloride-bearing services. Inconel 625 offers higher tensile strength (930 MPa vs 655 MPa).
Yes. Kalpataru supplies NACE MR0175 / ISO 15156 compliant Inconel needle valves with hardness controlled to HRC ≤22. Full NACE compliance dossiers, HIC test reports and sour-service material certs are available on request.
We supply NPT, BSPP, BSPT, SAE, JIC, UNF, metric thread, socket weld, butt weld, tube end (compression / ferrule), flanged (ASME B16.5 Class 150–2500) and panel mount configurations. Custom connections available on request.
Yes. Inconel 601 needle valves are stocked for high-temperature oxidation service up to 1,250°C. Inconel 718 needle valves are available for ultra-high-strength aerospace and hydraulic test rig applications (tensile strength 1,241 MPa).
There is no fixed MOQ. Single valves can be ordered for maintenance and repair. OEM / project orders of 50+ pieces attract volume pricing. Contact Kalpataru for a quote.
Request a Quote or Technical Datasheet
Kalpataru Piping Solutions' technical sales team responds within 24 hours for:
- Material grade selection assistance (600 vs 625 vs 601 vs 718 vs 825)
- NACE / sour-gas compliance documentation
- Cryogenic or fire-safe certification requirements
- Custom end connections, face-to-face or porting configurations
- OEM / project batch pricing
Have Any Questions ?
Please feel free to contact us. We will get back to you with 2 business days. Or just call us now.
