Certified Manufacturer & Exporter of Super Duplex S32760 Pipe Fittings in India
Kalpataru Piping Solution is a well-known exporting unit of Super Duplex Steel UNS S32750 Pipe Fittings / Super Duplex Steel S32760 Pipe Fittings, which is moderately ductile and forms effortlessly. Meanwhile, Kalpataru Piping is a leading exporter of Super Duplex Steel UNS S32750 and S32760 Pipe Fittings, manufactured under ASTM A815 / ASME SA815 standards. These fittings combine a duplex austenite-ferrite microstructure, delivering approximately twice the yield strength of standard austenitic stainless steels. Their high chromium (24–26%), molybdenum (3–5%), and nitrogen content provides exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking in aggressive chloride and sulphide-rich environments. UNS S32750 and S32760 fittings are engineered for demanding service conditions including offshore oil and gas platforms, desalination plants, and chemical processing units. With a Pitting Resistance Equivalent Number (PREN) exceeding 40, they outperform standard 316L and duplex 2205 grades in environments with high chloride concentrations, acidic media, and elevated temperatures. S32760 includes additional copper and tungsten, making it the preferred choice for the most aggressive process environments.
Super Duplex UNS S32760 Welded Pipe Fittings, Super Duplex UNS S32750 Piggable Bend, B16.9 Super Duplex Steel S32760 Pipe Elbow, DIN 1.4410 Equal Tee Stockist, Super Duplex Steel S32750 Reducer, MSS-SP-43 Super Duplex Steel UNS S32750 LR & SR Elbow, Super Duplex Steel UNS S32760 Long Radius Bend Exporters in India.
Table of Contents
- Super Duplex Steel UNS S32750 / S32760 Butt Weld Pipe Fittings Specification
- Super Duplex Steel Equivalent Standard Grades
- UNS S32750 & S32760 Pipe Fittings Types
- ASTM A815 Chemical Composition
- ASME SA815 Mechanical Properties
- Dimensional Tolerances
- Weight Chart
- S32750 vs S32760
- Packing & Delivery Details
- Available Stock of ASTM A815 S32760 Pipe Fittings
- Applications of Super Duplex Pipe Fittings
- FAQ’s About Super Duplex Steel Pipe
Super Duplex Steel UNS S32750/S32760 Butt weld Pipe Fittings Specification
| Specifications | ASTM A815 / ASME SA815 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ | Welded Butt Weld Fittings : 1/2″ – 48″ |
| Schedule | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Thickness | 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc. |
| Type | Seamless / ERW / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
Super Duplex Steel UNS S32750/S32760 Buttweld Fittings Equivalent Standard Grade
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex 2507 | S32750 / S32760 | 1.4410 |

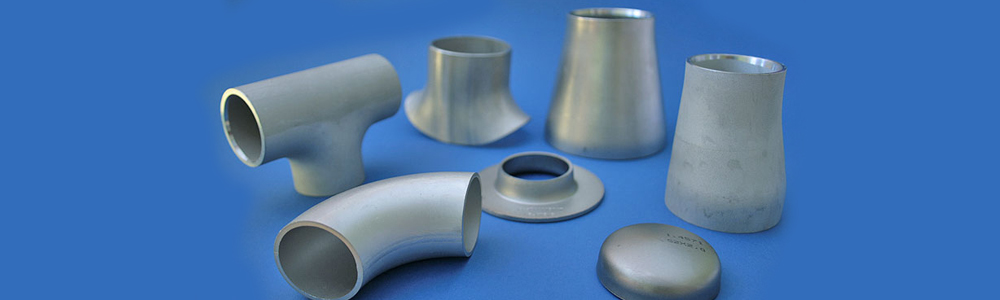

UNS S32750 & S32760 Super Duplex Stainless Steel Pipe Fittings Types
ASTM A815 Super Duplex Stainless Steel Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
ASME SA815 Super Duplex Steel Buttweld Pipe Fittings Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| S32750 / S32760 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000, MPa – 800 | Psi – 80000, MPa – 550 | 15 % |
Super Duplex Stainless Steel UNS S32750 / S32760 Pipe Fittings – Dimensional Tolerances
Notes:
1) Out-of-round = sum of positive and negative tolerances
2) OD = Outside Diameter, ID = Inside Diameter
3) Wall thickness and ID must be specified by the purchaser
All values are in inches
NPS (Nominal Pipe Size) | Outside Diameter (OD) Tolerance | Inside Diameter (ID) Tolerance | Wall Thickness | Centre-to-End (A, B, C, M) | Centre-to-Centre (O) | Back-to-Face (K) | Alignment (U) | Overall Length (H) | Overall Length (E) |
½” – 2½” | +0.06 / -0.03 | ±0.03 | ≥ 87.5% nominal | ±0.06 | ±0.25 | ±0.25 | ±0.03 | ±0.06 | ±0.12 |
3″ – 3½” | ±0.06 | ±0.06 | ≥ 87.5% nominal | ±0.06 | ±0.25 | ±0.25 | ±0.03 | ±0.06 | ±0.12 |
4″ | ±0.06 | ±0.06 | ≥ 87.5% nominal | ±0.06 | ±0.25 | ±0.25 | ±0.03 | ±0.06 | ±0.12 |
5″ – 8″ | +0.09 / -0.06 | ±0.06 | ≥ 87.5% nominal | ±0.06 | ±0.25 | ±0.25 | ±0.03 | ±0.06 | ±0.25 |
10″ – 18″ | +0.16 / -0.12 | ±0.12 | ≥ 87.5% nominal | ±0.09 | ±0.38 | ±0.25 | ±0.06 | ±0.09 | ±0.25 |
20″ – 24″ | +0.25 / -0.19 | ±0.19 | ≥ 87.5% nominal | ±0.09 | ±0.38 | ±0.25 | ±0.06 | ±0.09 | ±0.25 |
26″ – 30″ | +0.25 / -0.19 | ±0.19 | ≥ 87.5% nominal | ±0.12 | — | — | — | ±0.19 | ±0.38 |
32″ – 48″ | +0.25 / -0.19 | ±0.19 | ≥ 87.5% nominal | ±0.19 | — | — | — | ±0.19 | ±0.38 |
Other Available Stock of ASTM A815 Super Duplex Steel UNS 32750-32760 Pipe Fittings
Size | Elbow (kg) | Tee (kg) | Reducer (kg) |
1/2″ | 0.15 | 0.20 | 0.18 |
1″ | 0.35 | 0.50 | 0.45 |
2″ | 1.20 | 1.80 | 1.50 |
4″ | 3.50 | 5.00 | 4.20 |
6″ | 7.80 | 11.00 | 9.50 |
Super Duplex S32750 Pipe Fittings Weight Chart
Size | Elbow (kg) | Tee (kg) | Reducer (kg) |
1/2″ | 0.15 | 0.20 | 0.18 |
1″ | 0.35 | 0.50 | 0.45 |
2″ | 1.20 | 1.80 | 1.50 |
4″ | 3.50 | 5.00 | 4.20 |
6″ | 7.80 | 11.00 | 9.50 |
Super Duplex S32750 vs S32760
Property | S32750 | S32760 |
UNS | S32750 | S32760 |
Werkstoff No. | 1.4410 | 1.4501 |
PREN Value | ≥ 40 | ≥ 40 |
Copper Content | No | Yes (improves corrosion resistance) |
Tungsten | No | Yes |
Application | General offshore & chemical | More aggressive environments |
Cost | Lower | Slightly higher |
Packing & Delivery Details
- Wooden boxes / crates for export shipments
- Fumigated packaging as per international standards
- Plastic end caps for protection
- Wrapped with bubble sheet / shrink film
- Marking with grade, size, and heat number
- Fast delivery from ready stock
Other Available Stock of ASTM A815 Super Duplex S32760 Pipe Fittings
- Super Duplex Steel UNS S32760 90 Deg Elbow Dealer
- Super Duplex Steel UNS S32750 45 Deg Elbow Stockist
- ASTM A815 Super Duplex Steel UNS S32760 Equal Tee
- Super Duplex Steel UNS S32750 Unequal / Reducing Tee
- Super Duplex Steel S32760 Eccentric Reducer Supplier
- ANSI/ ASME B16.9 Super Duplex Steel S32750 End Cap
- Super Duplex UNS S32750 Reducing Nipple Trader
- SA815 Super Duplex S32760 Concentric Reducer
- UNS S32750 90 Deg Short Radius Elbow
- S32760 Super Duplex Steel Short Stub End Stockholder
- ASME SA815 Super Duplex UNS S32750 Barrel Nipple
- B16.9 Super Duplex Steel S32760 45 Deg Long Radius Elbow
- Super Duplex Steel UNS S32750 Long Stub End
- Super Duplex Steel S32760 Straight Tee in India
- Super Duplex Steel UNS S32750 Lap Joint Stub End
- ASTM A815 Super Duplex Steel S32750 /S32760 Tee
- UNS S32750 /S32760 Super Duplex Steel Cross Fitting
- ASTM A815 S32750 /S32760 Super Duplex Steel Stub End
- ASTM A815 Super Duplex Steel S32760 Piggable Bend
- Grade S32750 Super Duplex Steel Long Radius Elbow
- SA815 Super Duplex Steel S32760 Short Radius Elbow
- Super Duplex 2507 Swage Nipple / Reducing Nipple
- B16.9 Super Duplex Steel UNS S32760 Unequal Cross
- Super Duplex UNS S32750/S32760 Bend in Mumbai
- Super Duplex UNS S32750 U Bend Wholesaler
- Super Duplex Steel S32750 Pipe End Cap
- Super Duplex Steel S32760 Seamless Pipe Fittings
- S32750/S32760 Super Duplex Steel Buttweld Cap
- Super Duplex S32760 Pipe Nipple Distributors
- Super Duplex Steel 2507 Pipe Fittings Exporter
- Super Duplex Steel DIN 1.4410 Pipe Fittings
- Super Duplex UNS 32750/32760 Long Radius Bend
- DIN 1.4410 180° Return Bends Supplier
- 2507 Super Duplex Stainless Steel 1D / 3D / 5D Elbow
- Super Duplex S32750/S32760 ASME B16.9 Buttweld Bend
- Super Duplex Steel 2507 Seamless / Welded Elbow
Applications of Super Duplex Steel UNS S32750 / S32760 Pipe Fittings
Super Duplex Stainless Steel UNS S32750 / S32760 Pipe Fittings are widely used in industries that require exceptional strength, corrosion resistance, and durability in extreme environments. Their superior performance makes them suitable for both industrial and structural applications.
Key Application Industries
- Oil & Gas Industry – Used in offshore platforms, subsea pipelines, and processing systems exposed to harsh conditions.
- Power Generation & Energy Sector – Ideal for high-pressure systems, turbines, and energy production facilities.
- Chemical & Pharmaceutical Processing – Suitable for handling aggressive chemicals and maintaining high purity standards.
- Pulp & Paper Industry – Applied in bleaching plants and chemical processing units.
- Water Treatment & Wastewater Projects – Used in desalination plants and water management systems due to excellent corrosion resistance.
- Heat Exchangers & Fluid Handling Systems – Ensures reliable performance in high-temperature and high-pressure applications.
- Textile & Synthetic Fiber Industry – Used in machinery and processing equipment exposed to chemicals.
- Food & Dairy Processing Industry – Preferred for hygienic and corrosion-resistant piping systems.
- Modern Architecture & Structural Applications – Utilized in construction, furniture, and decorative structures for strength and durability.
- Home Appliances & General Engineering – Used in components requiring corrosion resistance and long service life.
FAQ’s About Super Duplex Steel S32750 / S32760 Pipe
Super Duplex Steel S32750 and S32760 are high-alloy stainless steels with a dual microstructure of austenite and ferrite. They offer excellent strength and superior resistance to corrosion. These grades are ideal for harsh and high-pressure environments.
Both grades offer similar corrosion resistance and strength, but S32760 contains additional elements for enhanced corrosion resistance and improved toughness. It is often preferred for more aggressive environments.
Yes, due to their high yield strength and durability, Super Duplex fittings perform exceptionally well in high-pressure and high-temperature systems. They are widely used in critical industrial piping systems.
