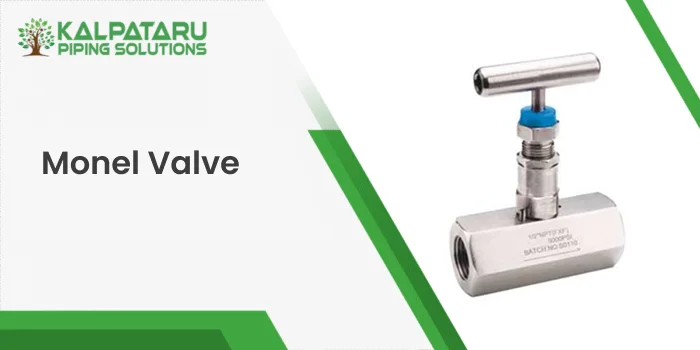

Monel Valve

What Is a Monel Valve?

A Monel valve is an industrial shut-off, control, or check valve manufactured from Monel — a family of nickel-copper alloys that combine the corrosion resistance of nickel with the toughness and fabricability of copper. Monel was originally developed by the International Nickel Company (INCO) and is named after INCO president Ambrose Monell. The alloy typically consists of approximately 67% nickel and 23–28% copper, with small additions of iron, manganese, silicon, and carbon.

Monel valves are specified wherever process conditions involve hydrofluoric acid (HF), seawater, brine, reducing acids, alkali solutions, and dry chlorine gas — environments in which stainless steel, carbon steel, and most other structural alloys fail through pitting, crevice corrosion, or general corrosion at unacceptable rates.

Monel Valve Grades — Material Overview

Monel Ball Valve Monel Needle Valve Monel Manifold Valve

Key Takeaway: Monel 400 (UNS N04400 / ASTM A494 M35-1) is the most widely used grade for process valves. Monel K-500 (UNS N05500) is preferred for valve stems, balls, and trim components where high strength and hardness are needed alongside corrosion resistance — such as in HF alkylation units and seawater injection pump valves.

Monel Valve Specifications

All Kalpataru Monel valves are manufactured and tested to internationally recognized standards. The table below covers our standard technical offering for Monel 400 and Monel K-500 valves.

Note: All Monel valve specifications are subject to customization. Contact Kalpataru Piping Solution for project-specific MTRs, TPI packages, and NACE MR0175-compliant documentation.

Types of Monel Valves Supplied by Kalpataru

We supply a complete portfolio of Monel valve types in Monel 400 and Monel K-500 grades to cover every isolation, control, non-return, and instrumentation requirement.

1. Monel Ball Valves

Quarter-turn shut-off valves for fast, reliable isolation in corrosive fluid services. Available as 2-piece and 3-piece floating ball, and trunnion-mounted designs in full-bore and reduced-bore configurations. PTFE, Grafoil, or metal seat options available. See our Monel 400 instrumentation ball valves for sizes 1/4” to 2” in high-pressure instrumentation service.

2. Monel Needle Valves

Precision flow control valves for instrumentation, gauge isolation, and sampling lines. Supplied in standard and integral-bonnet designs, 1/8” to 2”, rated up to 6,000 PSIG. Our Monel 400 needle valves feature PTFE or Grafoil packing options and NPT or compression tube end connections.

3. Monel Gate Valves

Full-bore, minimum-restriction gate valves for on/off service in large-bore and high-pressure pipelines. Manufactured in forged (ASTM B564) and cast (ASTM A494 M35-1) body materials, NPS 1/2” to 14”, Class 150 to 2500. Ideal for seawater injection lines, brine headers, and caustic soda (NaOH) pipelines.

4. Monel Check Valves (NRV)

Swing-type and piston-type non-return valves to prevent backflow in corrosive process lines. Available in wafer, flanged, and screwed-end designs per API 594 and API 6D. Ideal for seawater lift pump discharge and HF acid service headers.

5. Monel Manifold Valves

2-valve, 3-valve, and 5-valve manifold assemblies for differential pressure transmitter isolation and equalization in corrosive instrumentation services. Available in Monel 400 manifold valves and Monel K-500 manifold valves.

6. Monel Globe Valves

Throttle and control valves in straight-pattern, angle-pattern, and Y-pattern configurations for precise flow regulation. Supplied in forged Monel 400 and cast M35-1 body materials, conforming to ASME B16.34 and MSS SP-42.

7. Monel Monoflange & Double Block-and-Bleed (DBB) Valves

Double-block-and-bleed (DBB) and single-block-and-bleed (SBB) primary isolation valves that replace traditional 3-piece impulse line assemblies. Compact Monel 400 body with integrated needle valves for offshore topsides, marine, and HF acid service. See our monoflange valves range.

Monel Valve Applications & Industries

Oil & Gas — HF Acid Alkylation Units

Hydrofluoric acid alkylation is one of the most critical and hazardous processes in petroleum refining, producing high-octane alkylate gasoline. Monel 400 is the industry-standard material for all valves, piping, and fittings in HF service. Our Monel gate valves, globe valves, and check valves are specified in HF acid regeneration columns, settler vessels, and acid transfer headers.

Offshore Oil & Gas — Seawater Injection & Topsides

Monel 400 and K-500 resist seawater corrosion without cathodic protection requirements. Our Monel 400 instrumentation ball valves and manifold valves are used in seawater lift pump isolation, water injection headers, produced water treatment, and topsides instrumentation tubing.

Marine & Shipbuilding

Monel 400 is the preferred material for seawater valves in naval vessels, commercial ships, and offshore support vessels. Applications include seawater cooling system valves, ballast water treatment system valves, and desalination feed valves in marine SWRO systems.

Desalination & Water Treatment

Reverse osmosis (SWRO) desalination plants operate at high pressure with aggressive seawater and brine streams. Monel 400 ball valves and needle valves handle the high-pressure brine rejection side, chemical dosing lines (acid cleaning, antiscalant), and CIP skid isolation without corrosion-induced failure.

Chemical & Pharmaceutical Processing

Monel valves are used in caustic soda (NaOH) handling, hydrofluoric acid scrubbers, chlorine gas drying systems, and pharmaceutical API synthesis reactors where a combination of corrosive media and purity requirements rules out carbon and low-alloy steels. Our Monel 400 needle valves and tube fittings provide complete corrosion-resistant instrumentation packages for these services.

Pulp & Paper — Alkali Bleaching Lines

NaOH and other alkali bleaching chemicals in the kraft pulping process corrode stainless steel over time. Monel 400 gate and globe valves resist concentrated caustic at elevated temperatures in brown stock washers, evaporator circulation, and green liquor (Na₂CO₃ + Na₂S) service.

Power Generation — Condenser & Cooling Water Systems

Power plants on coastal sites use seawater as cooling water. Monel valves isolate and control seawater through condensers, heat exchangers, and cooling towers where stainless steel would fail through pitting and erosion-corrosion.

Food & Beverage — Brine and Acid CIP Systems

Monel 400’s resistance to food-grade acids, brines, and cleaning-in-place (CIP) solutions makes it suitable for valve applications in food processing plants handling pickles, salt brines, citric acid, and other mildly corrosive media requiring non-contaminating metallic construction.

Application Where Monel Valves Are Used

Monel Valve vs Other Alloy Valves — Material Comparison

Choosing the right valve material for aggressive service requires a side-by-side comparison. The table below compares Monel 400 against the most commonly specified alternatives.

Key Takeaway: Monel 400 is the only practical choice for hydrofluoric acid (HF) valve service — neither stainless steel, duplex, nor most nickel alloys (except Hastelloy B3) match its HF resistance. For seawater and marine service, Monel 400 and K-500 compete directly with Hastelloy C276 and Inconel 625 at a generally lower material cost. Monel K-500’s exceptional yield strength makes it the preferred choice for valve balls, stems, and trim in HF and high-pressure seawater service.
