In seawater systems, offshore instrument tubing, and chemical process lines where chloride concentrations make standard stainless steel needle valves unreliable, duplex steel needle valves are the engineered answer. Manufactured from Duplex 2205 (UNS S31803 / S32205, DIN 1.4462) or Super Duplex 2507 (UNS S32750), they combine the precise fine-thread flow control of an instrument needle valve with the chloride stress corrosion cracking (SCC) resistance, pitting resistance (PREN 34–42), and high strength that duplex alloys are specified for. At Kalpataru Piping Solution, we supply Duplex S31803/S32205 needle valves and Super Duplex S32750/S32760 needle valves in sizes ⅛” to 2″, pressure ratings 1500 to 6000 PSI, and end connections NPT, BSPT, tube end (single and double ferrule), socket weld, butt weld, and flange end — each issued with an EN 10204 3.1 mill test certificate. Equivalent to Swagelok, Parker, DK-LOK, Hamlet, and Oliver Valves in duplex grade.
- What is a Duplex Steel Needle Valve?
- Duplex Steel Valves Materials Grades
- Technical Data
- Applications of Duplex Steel Needle Valves
- Quality Testing, Certifications & Alloy 2205 Plunger Valve Characteristics
- Types & Configurations of Duplex Steel Needle Valves
- Frequently Asked Questions – Stainless Steel Manifold Valves

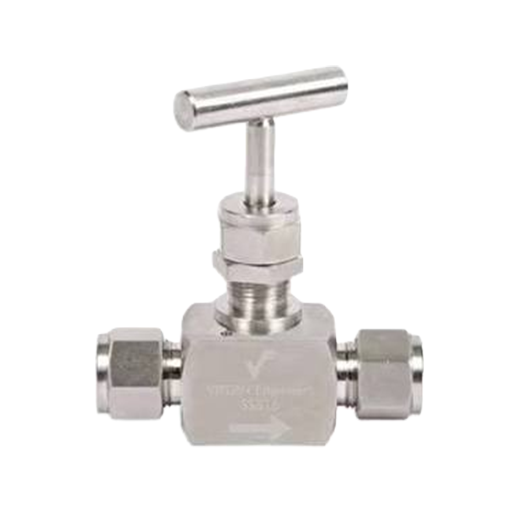

What is a Duplex Steel Needle Valve?
A duplex steel needle valve is a precision fine-thread flow-control valve with a long tapered needle (plug) that seats against a matching conical seat. Rotating the stem threads the needle into or out of the seat, providing precise metering and shutoff capability in small-bore instrument and process lines. The fine-thread design allows the valve to be set at any position between fully open and fully closed, giving the user exact control over flow rate — unlike ball valves, which are essentially on/off.
Duplex Steel Valves Materials Grades
Why Duplex Steel for Needle Valves?
Needle valves are used in instrument isolation lines, sampling connections, analyser take-offs, and gauge root connections — all locations where the fluid being handled is identical to the main process stream. In offshore, marine, desalination, and chloride-bearing chemical process services, that main process stream contains chloride ions that cause:
- Chloride Stress Corrosion Cracking (SCC) in standard austenitic SS 316L needle valves — particularly at the valve stem thread, a naturally stress-concentrated location
- Pitting corrosion on internal surfaces — starting at the needle tip and seating area
- Crevice corrosion at the stem packing and ferrule connections
Duplex 2205 (UNS S31803 / S32205) resists all three mechanisms at ambient to moderate temperatures. Super Duplex 2507 (UNS S32750) extends this resistance to hot seawater and concentrated brine. Neither is susceptible to chloride SCC under the conditions that reliably destroy SS 316L needle valves — making duplex needle valves the standard specification for instrument take-offs in offshore, marine, desalination, and chemical process facilities.
Technical Data
Duplex vs SS 316L Needle Valve Comparison
| Property | Duplex 2205 Needle Valve | SS 316L Needle Valve |
|---|---|---|
| Chloride SCC Resistance | Highly resistant | Susceptible above ~60°C |
| PREN | ~35 | ~24 |
| Yield Strength | 450 MPa min | 170 MPa min |
| Max Working Pressure | 6000 PSI (same body size) | 6000 PSI (larger body needed) |
| Body Size for Same Rating | Smaller / lighter | Larger due to lower yield |
| Cost vs SS 316L | Moderate premium | Baseline |
| Recommended Service | Seawater, chloride, offshore | General corrosion, indoor process |
| DIN Equivalent | 1.4462 | 1.4404 |
Duplex Steel Needle Valve Specification
Specification Table — Duplex 2205 / Super Duplex 2507 Needle Valve
| Parameter | Details |
|---|---|
| Material | Duplex 2205 (UNS S31803 / S32205) / Super Duplex 2507 (UNS S32750 / S32760) |
| Material Standard | ASTM A182 F51 (S31803 forged) / A182 F53 (S32750 forged) / A276 / A479 |
| Corrosion Resistance | Excellent resistance to pitting, crevice corrosion, and chloride stress corrosion cracking |
| Valve Size | ⅛” to 2″ (6mm to 50mm); larger sizes available on request |
| Orifice Size | 2mm to 9.5mm |
| Thread | NPT, BSPP, BSPT, JIC, Metric, UNF |
| Connection | Threaded, Tube End (single/double ferrule), Butt Weld, Socket Weld, Flange End |
| Flow Pattern | Straight, Angle, Cross patterns |
| Function | 2-Way, 3-Way |
| Body Shape | Square, Round, Hexagonal |
| Pressure Rating | 1500 PSI, 3000 PSI, 6000 PSI, 10,000 PSI, 15,000 PSI, 20,000 PSI |
| Working Pressure | Up to 6000 PSI (413 bar) standard; higher pressure on request |
| Test Pressure | 1.5 × working pressure |
| Temperature Rating | –120°C to +500°C (range as per pressure and seat material) |
| Operating Temperature | –50°F to +600°F (–45°C to +315°C) |
| Media | Hydraulic oil, air, water, gas, steam, hot water, cold water, seawater, chemical |
| Body Type | Bar stock, Forged |
| Handle | Bar T-handle, Knob handle, Wheel handle |
| Packing Details | Box packing, Wooden pallet |
| Equivalent Brands | Swagelok, Parker, DK-LOK, Hamlet, Oliver Valves, HOKE |
| Certification | ISO 9001, ASTM, and relevant international standards |
| DIN Equivalent | 1.4462 (Duplex 2205) / 1.4410 (Super Duplex 2507) |
Duplex Needle Valve Type Matrix
| Configuration | Sizes | Pressure Rating | End Connection | Application |
|---|---|---|---|---|
| Straight 2-Way | ⅛” – 2″ | 1500–20,000 PSI | NPT, BSPT, SW, BW, Tube, Flange | General instrument isolation |
| Angle 2-Way | ⅛” – 1″ | 1500–6000 PSI | NPT, BSPT, Tube | Space-constrained installations |
| 3-Way | ¼” – 1″ | 1500–6000 PSI | NPT, Tube | Source selection, divert |
| Instrumentation HP | ⅛” – 1″ | 6000 PSI | NPT, Dual Ferrule Tube | Offshore instrument take-off |
| High Pressure | ⅛” – ½” | 10,000–20,000 PSI | NPT, SW | Hydraulic test, wellhead |
| Socket Weld | ½” – 2″ | 3000–6000 PSI | Socket Weld (SW) | High-pressure piping |
| Butt Weld | ½” – 2″ | 3000–6000 PSI | Butt Weld (BW) | Permanent weld-in |
Duplex Steel Needle Valve Dimensional Standards
Dimensional Standards — Duplex Needle Valve Female End (mm)
| Size (NPS) | A (mm) | B (mm) | ±C (mm) | D (mm) |
|---|---|---|---|---|
| ⅛” | 19 | 50 | 65 | 45 |
| ¼” | 22 | 50 | 70 | 50 |
| ⅜” | 25 | 55 | 75 | 55 |
| ½” | 30 | 65 | 85 | 55 |
| ¾” | 34 | 75 | 92 | 60 |
| 1″ | 40 | 85 | 100 | 65 |
| 1¼” | 54 | 90 | 120 | 80 |
| 1½” | 62 | 110 | 130 | 88 |
| 2″ | 72 | 120 | 150 | 95 |
Duplex Needle Valve Female End — Swagelok-Compatible Sizes (NPT, 6000 PSI)
| Size | Thread | Pressure Rating | Grade |
| ⅛” | NPT Female | 6000 PSI | Duplex 2205 |
| ¼” | NPT Female | 6000 PSI | Duplex 2205 |
| ⅜” | NPT Female | 6000 PSI | Duplex 2205 |
| ½” | NPT Female | 6000 PSI | Duplex 2205 / S31803 |
| ¾” | NPT Female | 6000 PSI | Duplex 2205 |
| 1″ | NPT Female | 6000 PSI | Duplex 2205 |
Chemical Composition of Duplex Steel Needle Valve Grades
2205 Stainless Steel Compression Needle Valve
| Element | Duplex 2205 (S32205) | Duplex S31803 |
|---|---|---|
| Nickel (Ni) | 4.50 – 6.50 | 4.50 – 6.50 |
| Carbon (C) | 0.030 max | 0.030 max |
| Manganese (Mn) | 2.00 max | 2.00 max |
| Phosphorus (P) | 0.030 max | 0.030 max |
| Sulphur (S) | 0.020 max | 0.020 max |
| Silicon (Si) | 1.00 max | 1.00 max |
| Chromium (Cr) | 21.0 – 23.0 | 22.0 – 23.0 |
| Molybdenum (Mo) | 2.50 – 3.50 | 3.0 – 3.5 |
| Nitrogen (N) | 0.08 – 0.20 | 0.14 – 0.20 |
| Iron (Fe) | 63.54 min | 63.72 min |
Super Duplex 2507 Needle Valve — Chemical Composition
| Element | Super Duplex 2507 (S32750) |
|---|---|
| Chromium (Cr) | 24.0 – 26.0 |
| Nickel (Ni) | 6.0 – 8.0 |
| Molybdenum (Mo) | 3.0 – 5.0 |
| Nitrogen (N) | 0.24 – 0.32 |
| Carbon (C) | 0.030 max |
| Manganese (Mn) | 1.20 max |
| Silicon (Si) | 0.80 max |
| Copper (Cu) | 0.50 max |
| Iron (Fe) | Balance |
Equivalent Grade Table — DIN 1.4462 Instrumentation Needle Valve
| Standard | Werkstoff Nr. (DIN) | UNS |
|---|---|---|
| Duplex 2205 | 1.4462 | S31803 / S32205 |
| Super Duplex 2507 | 1.4410 | S32750 |
| Zeron 100 | 1.4501 | S32760 |
Mechanical Properties of Duplex Steel Needle Valve Grades
Mechanical Behaviour — UNS S32205 Hydraulic Needle Valve (ASTM A182 F51)
| Grade | Yield Strength (MPa) min | Tensile Strength (MPa) min | Elongation (%) min | Hardness (BHN) max |
| S31803 (Duplex 2205) | 450 | 620 | 25 | 293 |
| S32205 (Duplex 2205 revised) | 450 | 655 | 25 | 293 |
| S32750 (Super Duplex 2507) | 550 | 800 | 15 | 310 |
| S32760 (Zeron 100) | 550 | 750 | 15 | 290 |
Physical Properties
| Property | Duplex 2205 | Super Duplex 2507 |
| Density (g/cm³) | 7.80 | 7.84 |
| Melting Point (°C) | 1350–1390 | 1350–1390 |
| Thermal Conductivity (W/m·K) | 19 | 14 |
| Max Service Temperature (°C) | 300 | 300 |
| Min Service Temperature (°C) | –50 | –50 |
| Magnetic | Weakly (ferritic phase) | Weakly |
| PREN | 34–36 | 41–43 |
PREN — Pitting Resistance Compared
| Grade | PREN (approx.) | Seawater Suitability |
| SS 316L | ~24 | Limited |
| Duplex 2205 (S31803) | ~35 | Good — ambient seawater |
| Super Duplex 2507 (S32750) | ~42 | Excellent — hot seawater, brines |
Applications of Duplex Steel Needle Valves
- Oil and gas equipment — wellhead and platform instrument take-off valves; pressure gauge root valves on production manifolds
- Offshore technology — instrument isolation on topsides, subsea jumpers, and riser instrumentation where seawater contact is continuous
- Pulp and paper industry — bleaching stage instrument valves where chlorine dioxide and hypochlorite are present
- Cargo tanks and pipe systems in chemical tankers — isolation of level gauges and pressure transmitters on tanks carrying chlorinated solvents, acids, and seawater ballast
- Firewalls and blast walls on offshore platforms — instrument penetrations where fire-side exposure and seawater deluge coincide
- Bridges — instrument connections on marine bridge structures in coastal environments
- Storage tanks — level instrument isolation valves on tanks storing seawater, chlorinated water, or acidic chemicals
- Pressure vessels, reactor tanks, and heat exchangers — process side instrument take-offs in chemical reactors and desalination evaporators
- Rotating machinery skids — isolation valves for lube oil and coolant lines on marine pumps, compressors, and turbines operating in chloride environments
- Seawater desalination plants — instrument isolation on high-pressure membranes (RO), multi-stage flash evaporators, and brine headers
- Chemical industry — chloride handling — sample points, analyser take-offs, and gauge connections on chloride-containing chemical process streams
- Flue-gas cleaning (FGD) — instrument valves on scrubber vessels handling chloride-rich flue gas desulphurisation slurries
- Desalination plants and seawater systems — all instrumentation on seawater intake, pre-treatment, and brine discharge
| Industry | Specific Use | Recommended Grade | Pressure Rating |
|---|---|---|---|
| Oil & Gas Offshore | Instrument root valves, gauge connections, DP transmitters | Duplex S31803 (NACE MR0175) | 6000 PSI |
| Desalination (RO, MSF) | Pressure and DP instrument isolation on brine and permeate lines | Super Duplex S32750 | 3000–6000 PSI |
| Marine / Shipbuilding | Seawater system instruments, ballast, bilge | Duplex S31803 | 3000–6000 PSI |
| Chemical Processing | Chloride-containing acid and solvent sampling | Super Duplex S32750 | 3000–6000 PSI |
| Pulp & Paper | Bleach liquor and washing circuit instruments | Duplex S31803 | 3000 PSI |
| Power Generation (FGD) | Wet gas scrubber instrument valves | Duplex S31803 | 1500–3000 PSI |
| Offshore Firewater | High-pressure deluge line instruments | Duplex S31803 | 3000–6000 PSI |
Quality Testing, Certifications & Alloy 2205 Plunger Valve Characteristics
| Test | Standard | Purpose |
|---|---|---|
| Chemical Analysis | ASTM A751 / OES | Grade identity — Cr, Ni, Mo, N, C confirmed per heat |
| Tensile & Yield Testing | ASTM A370 | Mechanical property compliance per ASTM A182 |
| Hardness Testing | ASTM E18 / E10 | Grade and phase balance confirmation |
| Ferrite Content | ASTM E562 / Feritscope | 40–60% ferrite target for duplex microstructure |
| Pitting Resistance Test | ASTM G48 | Confirms chloride pitting resistance at PREN level |
| Hydrostatic Shell Test | API 598 | Body integrity at 1.5× rated working pressure |
| Seat Leakage Test | API 598 | Zero leakage confirmation at rated pressure |
| PMI (Positive Material ID) | XRF Gun | Grade verified at final dispatch |
| Dimensional Inspection | Drawing / customer spec | All end connection sizes, orifice, body dimensions |
Alloy 2205 Duplex Needle Valve
- High resistance to chloride stress corrosion cracking — the defining failure mode for SS 316L needle valves in seawater service
- High strength — yield strength 450 MPa minimum, approximately 2.6× higher than SS 316L (170 MPa), enabling smaller valve bodies for the same pressure rating
- Combination of austenitic and ferritic structure — the two-phase microstructure gives duplex its unique balance of strength, toughness, and corrosion resistance
- Good weldability and workability — better than fully ferritic grades; suitable for tube-to-valve welding without post-weld heat treatment in most service conditions
- Superior resistance to chloride pitting and crevice corrosion — PREN ~35 vs PREN ~24 for SS 316L; the needle tip, seat, and stem thread areas that are most susceptible to pitting are protected
- Good general corrosion resistance — performs well in a wide range of acidic and alkaline environments, not only in chloride service
- Suggested for applications up to 600°F (315°C) — temperature limit for standard PTFE packing; higher temperature packing (Grafoil) extends this further
- Low rate of thermal expansion — approximately 13 × 10⁻⁶/°C vs 17.2 × 10⁻⁶/°C for SS 316L; reduces thermal cycling stress at the valve stem seal
Certifications
- ASTM A182 F51 / F53 — forged duplex needle valve body and stem
- ISO 9001:2015 — quality management system compliance
- NACE MR0175 / ISO 15156 — sour gas (H₂S) service compliance (on request)
- EN 10204 Type 3.1 — mill test certificate per heat (standard)
- EN 10204 Type 3.2 — with client-nominated TPI countersignature (on request)
Types & Configurations of Duplex Steel Needle Valves
Kalpataru Piping Solution supplies duplex needle valves in all standard configurations, matching the end connections, flow patterns, and pressure ratings specified on engineering drawings and instrument datasheets.
By End Connection
- Screwed End / Threaded Duplex Needle Valve Male or female NPT, BSPT, BSPP threads on both ends. The most common configuration for instrument root valves, gauge connections, and small-bore process take-offs. Available in ⅛” to 1″ sizes.
- Tube End Duplex Needle Valve (Ferrule) Compression fitting end — single ferrule or double (dual) ferrule for direct connection to instrument tubing. Compatible with Swagelok, Parker, and DK-LOK type compression fittings. The standard for offshore and instrumentation tubing runs where tube-to-valve connections must be leak-free.
- Common sizes: ⅛”, ¼”, ⅜”, ½”, ¾”, 1″ OD tube
- Popular as: Duplex UNS S31803 Needle Valve ¼” NPTF 6000 Psi, Duplex 2205 Needle Valve ½” NPTF 6000 Psi
- Socket Weld Duplex Needle Valve Socket weld (SW) end connections for high-pressure small-bore piping where threaded connections are not permitted by design code. Per ASME B16.11. ½” to 2″ sizes.
- Butt Weld Duplex Needle Valve Butt weld (BW) ends for permanent weld-in installations in high-pressure corrosive service. Per ASME B16.25.
- Flange End Duplex Needle Valve Raised face (RF) or ring-type joint (RTJ) flanged ends for large-bore or high-pressure needle valve applications requiring bolted connections.
By Flow Pattern
- Straight Pattern (2-way): Inline flow — the most common needle valve configuration for isolation and metering
- Angle Pattern (90° body): 90° flow path change in a single valve — used where space is limited or piping must change direction at the valve
- 3-Way Pattern: Three connections; used for selecting between two sources or splitting to two destinations
- Cross Pattern: Four-way connection for complex instrument manifold arrangements
By Application Type
- Instrumentation Duplex Needle Valve Compact forged body; NPT or dual-ferrule tube end; rated to 6000 PSIG. The standard for instrument take-off connections on offshore platforms and desalination plants.
- High-Pressure Duplex Needle Valve Forged duplex bar stock; working pressure 6000 to 20,000 PSI; used in hydraulic test lines, high-pressure process sampling, and wellhead instrument connections.
- Forged Duplex Needle Valve All duplex needle valve bodies are forged from bar stock — not cast — providing superior grain structure, density, and pressure-containment integrity compared to cast bodies.
- Male × Female Duplex 2205 Needle Valve Male inlet thread on one side; female on the other — the standard for compact instrument manifold block connections.
- Screwed End Duplex 2205 Needle Valve Both ends male or female NPT/BSPT; used for gauge root valves, transmitter block valves, and sample point isolation.
Common Duplex Swagelok-Equivalent Needle Valve Sizes (NPT, 6000 PSI)
- Needle Valve, ⅛” NPTF, 6000 Psi
- Duplex 2205, Needle Valve, ¼” NPTF, 6000 Psi
- Needle Valve, ⅜” NPTF, 6000 Psi
- Duplex UNS S31803, Needle Valve, ½” NPTF, 6000 Psi
- Duplex 2205, Needle Valve, ¾” NPTF, 6000 Psi
- Needle Valve, 1″ NPTF, 6000 Psi
Duplex Product Navigation — Full Range at Kalpataru
| Product | Duplex S31803 / S32205 | Super Duplex S32750 / S32760 |
|---|---|---|
| Needle Valve | Duplex S31803 Needle Valve | Super Duplex S32750 Needle Valve |
| Ball Valve | Duplex Ball Valve | Super Duplex Ball Valve |
| Manifold Valve | Duplex Manifold Valve | Super Duplex Manifold Valve |
| Pipe Fittings | Duplex Pipe Fittings | Super Duplex Pipe Fittings |
| Flanges | Duplex Flanges | Super Duplex Flanges |
| Tubes | Duplex Tubes | Super Duplex Tubes |
| Tube Fittings | Duplex Tube Fittings | Super Duplex Tube Fittings |
FAQs – Duplex Steel Needle Valves
A duplex steel needle valve is a forged fine-thread flow-control valve manufactured from Duplex 2205 (UNS S31803 / S32205) or Super Duplex 2507 (UNS S32750) — alloys that resist chloride stress corrosion cracking and pitting that destroys standard SS 316L needle valves. It is used for instrument isolation, flow metering, and sampling in seawater, offshore platform, desalination, marine, chemical, and pulp and paper service.
S31803 is the original UNS designation for Duplex 2205; S32205 is the revised designation with tighter composition limits (higher minimum Cr, Mo, and N). Both are covered by ASTM A182 F51. For needle valve service, the two are interchangeable. S32205 is the preferred current specification as it has a slightly tighter PREN floor.
DIN 1.4462 is the Werkstoff Nr. (material number in the European DIN system) for Duplex 2205 stainless steel — equivalent to UNS S31803 / S32205. When a valve drawing specifies “1.4462 needle valve”, it is calling for a Duplex 2205 body. Kalpataru supplies 1.4462 / S31803 needle valves with full EN 10204 3.1 documentation.
Duplex needle valves are available with NPT, BSPT, BSPP, JIC, Metric, and UNF threaded ends; single and double (dual) ferrule tube end connections compatible with Swagelok and Parker compression fittings; socket weld (SW) per ASME B16.11; butt weld (BW) per ASME B16.25; and flange end connections.
Standard duplex steel needle valves are available from ⅛” to 2″ NPS. Larger sizes (up to 4″) are available on request. The most common offshore instrumentation sizes are ¼”, ⅜”, and ½” NPT or tube end at 6000 PSI.
Duplex needle valve price depends on grade (Duplex 2205 or Super Duplex 2507), size, pressure rating (3000 or 6000 PSI), end connection (NPT, tube, SW), and order quantity. Super Duplex 2507 costs more than Duplex 2205. Contact Kalpataru with your grade, size, pressure, and quantity for a confirmed price within 24 hours.
Need Duplex 2205 or Super Duplex 2507 Needle Valves with Full MTC & NACE Certification?
Specify your grade (S31803, S32205, S32750), size, pressure rating (3000 or 6000 PSI), and end connection (NPT, tube, SW). We respond with a confirmed price within 24 hours — every valve shipped with API 598 test record and EN 10204 3.1 MTC.
Get a Free Quote in 24 HoursHave Any Questions ?
Please feel free to contact us. We will get back to you with 2 business days. Or just call us now.
