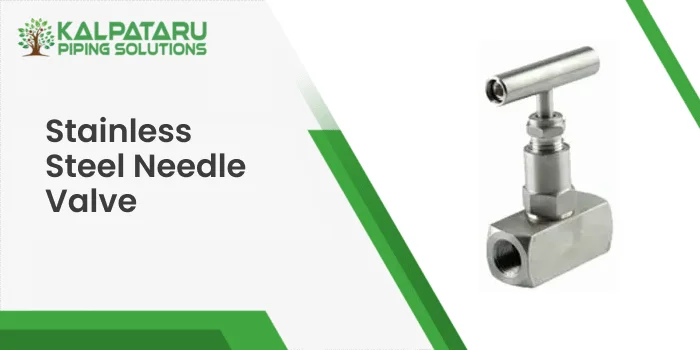

Stainless Steel Needle Valve

What Is a Stainless Steel Needle Valve?

A stainless steel needle valve is a precision flow-control device that uses a long, tapered needle-shaped plunger moving axially through a small orifice to regulate fluid or gas flow with exceptional accuracy. Unlike ball or gate valves, which are designed primarily for on/off isolation, an SS needle valve excels at throttling – allowing operators to make fine, incremental adjustments to flow rate even at high pressures.

The operating principle is straightforward: rotating the handwheel or handle drives the needle stem into or out of the seat. As the needle advances into the seat, the annular flow area decreases, restricting flow. At full closure, the tapered tip seats tightly against the valve seat, providing a bubble-tight, zero-leakage shutoff. This design makes the needle valve stainless steel construction ideal for hydraulic, pneumatic, and instrumentation applications where precise metering is essential.

Key Design Features

• Tapered needle stem: Provides leak-tight shutoff and smooth, repeatable throttling
• Forged body: Manufactured from ASTM A182 F304, F316, or F316L forged bar for maximum strength
• Fine-thread spindle: Enables precise incremental flow adjustment – critical in instrument isolation and sampling circuits
• Rising stem: Gives visual indication of valve position (open or closed)
• Packing gland: PTFE or graphite packing ensures zero fugitive emissions
• Multiple end connections: NPT, BSPT, socket weld, butt weld, or tube end (Swagelok-compatible)
• High pressure rating: Available in 800 PSI, 3,000 PSI, 6,000 PSI, 10,000 PSI, and 20,000 PSI classes

Stainless Steel Needle Valve Materials Grades

Stainless Steel Needle Valve Specifications

Types & Configurations of SS Needle Valves

Kalpataru manufactures every major type of stainless steel needle valve to suit diverse piping and instrumentation requirements. Each configuration is available in SS 304, SS 316, SS 316L, SS 321, SS 317L, and SS 347H grades.

Screwed End Needle Valve (Threaded Needle Valve)

The most widely used type. The body is threaded NPT or BSPT for direct connection to pipe fittings, manifolds, or instrument impulse lines. Available in straight and angle patterns. Pressure ratings: 800 PSI to 6,000 PSI. These screwed end needle valves are standard in instrumentation tubing circuits and sampling systems.

Socket Weld Needle Valve

Designed for socket weld connections to ASME B16.11 socket weld fittings. Preferred where vibration or high-cycle operation demands a permanent, leak-free joint. Pressure rating up to 6,000 PSI. Common in refineries and chemical plants.

Butt Weld Needle Valve

Features butt weld ends per ASME B16.25 for full-penetration weld joints. Offers the highest structural integrity and is preferred in cryogenic, steam, and high-purity applications. Suitable for pressures up to 10,000 PSI.

Tube End / Compression Needle Valve (Instrumentation Needle Valve)

Compatible with Swagelok, Parker, DK-LOK style compression tube fittings — pair these with our stainless steel instrumentation fittings for complete instrument loop assemblies. Also see our stainless steel check valve for flow protection in these circuits. Used extensively in instrumentation needle valve assemblies for 1/4″, 3/8″, 1/2″, and 3/4″ OD tubing. Delivers leak-free connections without threading.

High Pressure Needle Valve (10,000 PSI / 20,000 PSI)

Heavy-duty forged body with reinforced stem and packing. Used in hydraulic test rigs, gas injection wellheads, and high-pressure water-jet systems. Available in 10,000 PSI and 20,000 PSI ratings. These high pressure needle valves are also called ultra-high-pressure (UHP) needle valves.

Angle Needle Valve

Body is machined at 90 degrees, allowing installation in tight spaces where a straight-through valve won’t fit. The angle needle valve also produces less flow resistance than the straight pattern, making it useful in instrument air and hydraulic circuits.

Way Needle Valve

Features three ports allowing flow to be directed between two paths or vented. Commonly used as block-and-bleed valves in differential pressure transmitter circuits. A 3 way needle valve can isolate the instrument and vent it to atmosphere in a single operation.

Panel Mounted Needle Valve

Designed for direct panel mounting on instrument boards and control panels. Low-profile body with locknut for secure panel fixation. Ideal for panel mounted needle valve installations in process analyzers, test panels, and manifold assemblies.

Forged Needle Valve

Manufactured entirely from forged bar stock (ASTM A182 F304 / F316 / F316L) rather than cast bodies, delivering superior mechanical strength, finer grain structure, and higher pressure retention. All Kalpataru needle valves use forged bodies by default.

Knob Handle & Wheel Handle Needle Valve

The standard T-bar handle or knob handle suits bench and field service. For larger valves requiring higher torque, a knob handle needle valve with non-sparking handwheel is available for hazardous area service.

Dimensional Reference Table – SS Needle Valve (Female End)

Dimensions per ASME B16.34 / manufacturer standard. All measurements in millimetres (mm).

Note: Dimensions may vary slightly by pressure class (3,000 PSI vs 6,000 PSI bodies). Custom dimensions available on request. Consult Kalpataru engineering for 10,000 PSI and 20,000 PSI body dimensions.

Common Sizes for SS Swagelok-Compatible Needle Valves (Tube End)

• SS Needle Valve, 1/4″ NPT, 6,000 PSI
• SS Needle Valve, 3/8″ NPT, 6,000 PSI
• SS Needle Valve, 1/2″ NPT, 6,000 PSI
• SS 316 Needle Valve, 1/4″ BSPT, 3,000 PSI
• SS 304 Needle Valve, 1/2″ BSPT, 800 PSI
• Instrumentation Needle Valve, 6mm tube OD, 6,000 PSI
• High Pressure Needle Valve, 1/4″ NPT, 10,000 PSI
• High Pressure Needle Valve, 1/2″ NPT, 20,000 PSI

Chemical Composition of SS Needle Valve Materials

All Kalpataru stainless steel needle valves are manufactured from ASTM A182 forged bar conforming to the following chemical composition requirements:

CF8 vs F304: CF8 is the cast equivalent of wrought F304; Kalpataru uses forged F304/F316 for needle valves, not cast bodies. CF8M needle valve terminology commonly refers to SS 316 forged needle valves.

Stainless Steel Needle Valve Equivalent Grade Designations:

Mechanical Properties of SS Needle Valve Materials

Note: Minimum values per ASTM A182. Actual test results reported on EN 10204 Type 3.1 MTC supplied with every shipment. Higher strength levels available with cold-worked bar on special request.

Applications of Stainless Steel Needle Valves

Kalpataru SS needle valves serve critical flow-control functions across a broad range of industries. Their precision throttling capability, high pressure tolerance, and corrosion resistance make them indispensable wherever fine flow metering, instrument isolation, or sampling is required.

Oil & Gas – Upstream and Midstream

Used in wellhead instrumentation, gas metering skids, manifold headers, and chemical injection packages. Our SS 316 needle valves and SS 316L needle valves are preferred for sour gas service in compliance with NACE MR0175 / ISO 15156. High pressure needle valves rated at 10,000 PSI and 20,000 PSI serve hydraulic fracturing and well control circuits.

Petrochemical & Refining

Installed in process analyzer samplers, differential pressure transmitter impulse lines, and pressure gauge isolation. The SS 321 needle valve is specified for high-temperature hydrocarbon service where carbide precipitation (sensitization) is a concern. SS 347H needle valves are used in elevated temperature zones above 400 degC.

Power Generation

IBR-approved stainless steel needle valves are used in boiler feed water sampling systems, steam drain lines, and HP/LP bypass instrumentation. The fine-thread stem allows operators to precisely set steam bleed rates during startup.

Chemical & Pharmaceutical Processing

SS 316L needle valves (CF3M grade) with electropolished internals are specified for sterile process piping, CIP/SIP systems, and high-purity chemical dosing. The low carbon content prevents chromium carbide precipitation and ensures crevice corrosion resistance.

Hydraulics & Pneumatics

High pressure needle valves rated 3,000 PSI to 20,000 PSI serve hydraulic test stands, pressure calibration rigs, and pneumatic control panels. The fine-thread spindle provides the precise, stable throttling hydraulic circuits require.

Shipbuilding & Marine

SS 316 needle valves with BSPT threads and NACE-compliant packing are used in seawater ballast systems, bilge systems, and fire suppression circuits on offshore platforms, FPSOs, and naval vessels.

Instrumentation & Process Control

Instrumentation needle valves form the heart of 2-valve, 3-valve, and 5-valve manifold assemblies for differential pressure (DP) transmitters, flow computers, and level gauges. Also used as root isolation valves, equalizing valves, and vent/drain valves in instrument hook-up circuits.

Food & Beverage

Electropolished SS 304 needle valves and SS 316L needle valves comply with hygienic design standards and are used for precise dosing of flavourings, CO2 injection, and CIP chemical delivery in breweries, dairies, and bottling plants.

Quality Testing & Certifications

Kalpataru Piping Solution maintains a fully equipped in-house quality assurance laboratory and applies a multi-stage inspection protocol to every batch of stainless steel needle valves before dispatch.

Testing Programme

Certifications & Documentation

• EN 10204 Type 3.1 Mill Test Certificate (standard with every order)
• EN 10204 Type 3.2 Third-party witnessed inspection (on request)
• API 598 Valve Testing Certification
• ISO 9001:2015 Quality Management System
• IBR (Indian Boiler Regulations) approval for steam-service valves
• NACE MR0175 / ISO 15156 compliance for sour gas service SS 316 needle valves
• PED (Pressure Equipment Directive) compliance for EU export
• CE Marking available on request for European markets
• Country of Origin Certificate, Packing List, Commercial Invoice for export clearance

Stainless Steel Needle Valve Price

The stainless steel needle valve price in India generally ranges from ₹190 to ₹650 per piece, depending on the SS grade, size, pressure rating, end connection, and valve configuration. SS 316 needle valves and high-pressure or double-ferrule designs are typically priced higher than standard SS 304 models.
