Every piping system that handles a fluid eventually needs a valve to isolate, throttle, divert, or prevent backflow. When that fluid is corrosive, high-pressure, or temperature-extreme, the valve body material becomes as critical as the valve design itself. Stainless steel valves manufactured in Grade 304, 316, and 316L are the workhorse of the chemical, oil and gas, pharmaceutical, and water treatment industries precisely because they combine corrosion resistance, mechanical strength, and pressure-temperature capability that carbon steel cannot match. At Kalpataru Piping Solution, we supply the complete family of stainless steel valves ss ball valves, stainless steel gate valves, globe valves, needle valves, check valves, manifold valves, and butterfly valves in grades SS 304, 304L, 316, 316L, 316Ti, 317L, 321, 347H, and 904L, manufactured to API 600, ASME B16.34, and MSS SP-80 standards. Tell us your grade, type, size, pressure class, and end connection we respond with a confirmed quote within 24 hours.
- What are Stainless Steel Valves?
- Stainless Steel Valves Materials Grade
- Types of Stainless Steel Valves
- Technical Data
- Quality Testing & Certifications
- Why Choose Kalpataru Piping Solution for Stainless Steel Valves?
- Kalpataru Stainless Steel Valve Grade Pages — Quick Navigation
- Frequently Asked Questions – Stainless Steel Manifold Valves
What are Stainless Steel Valves?
A stainless steel valve is a pressure-rated flow-control device whose body, bonnet, and trim are manufactured from austenitic or other stainless steel alloys — typically SS 304, 316, 316L, or their variants. Unlike carbon steel valves that corrode in wet, acidic, or chloride-bearing process streams, stainless steel valves maintain their mechanical integrity and sealing surface quality across a wide range of temperatures and chemical environments, making them the default choice for process industries.
Stainless Steel Valves Materials Grade
Technical Data
Stainless Steel Valve Standard Specification
Kalpataru Piping Solution supplies stainless steel valves manufactured to the following international standards. The applicable standard depends on valve type, pressure class, and service:
| Parameter | Details |
| Material Standards | ASTM A182 (forged), ASTM A351 (cast), ASTM A276 (bar) |
| Design / Rating Standard | ASME B16.34, API 600, API 598, API 6D |
| Dimensional Standards | ASME B16.10 (face-to-face), ASME B16.5 (flanged), ASME B16.25 (buttweld ends), ASME B16.11 (socket weld / threaded) |
| Inspection & Test Standard | API 598, BS EN 12266-1, MSS SP-61 |
| Material Grades | SS 304 (CF8), 304L (CF3), 316 (CF8M), 316L (CF3M), 316Ti, 317L, 321, 347H, 904L |
| Size Range | ⅛” NB to 48″ NB (type dependent) |
| Pressure Class | 150#, 300#, 600#, 800#, 900#, 1500#, 2500# |
| Working Pressure | Up to 6000 PSIG (instrumentation / high-pressure types) |
| End Connection | Flanged (RF, RTJ, FF), Socket Weld (SW), Butt Weld (BW), Threaded (NPT / BSP / BSPT), Dual Ferrule Tube |
| Temperature Range | –196°C to +870°C (grade and seat material dependent) |
| Seat / Packing Materials | PTFE (up to 232°C / 450°F), Grafoil (up to 371°C / 700°F), PEEK, metal-seated |
| Pressure Rating | 150#, 300#, 600#, 800#, 1500# (per ASME B16.34) |
| Leakage Class | API 598 Class A (metal-seated), Class B (soft-seated) |
| Material Proof | EN 10204 Type 3.1 Mill Test Certificate |
Chemical Composition of Stainless Steel Valve Grades
Chemical Composition (%) — Wrought Grades (ASTM A182 / A276)
| Grade | C (Max) | Si (Max) | Mn (Max) | P (Max) | S (Max) | Cr | Mo | Ni |
| 304L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 18.00–20.00 | — | 8.00–13.00 |
| 304 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.00–20.00 | — | 8.00–11.00 |
| 316L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 16.00–18.00 | 2.00–3.00 | 10.00–15.00 |
| 316 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.00–18.00 | 2.00–3.00 | 10.00–14.00 |
| 317L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 18.00–20.00 | 3.00–4.00 | 11.00–15.00 |
| 321 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.00–19.00 | — | 9.00–12.00 |
| 347H | 0.040–0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.00–19.00 | — | 9.00–13.00 |
| 904L | 0.020 | 1.00 | 2.00 | 0.045 | 0.035 | 19.00–23.00 | 4.00–5.00 | 23.00–28.00 |
Source: ASTM A182 / A276 / A351. Values shown are typical composition ranges.
Chemical Composition — Cast Grades (ASTM A351) Used in Valve Bodies
| Cast Grade | Equivalent Wrought | C (Max) | Cr | Mo | Ni |
| CF8 | SS 304 | 0.08 | 18–21 | — | 8–11 |
| CF3 | SS 304L | 0.03 | 17–21 | — | 8–12 |
| CF8M | SS 316 | 0.08 | 18–21 | 2–3 | 9–12 |
| CF3M | SS 316L | 0.03 | 17–21 | 2–3 | 9–13 |
CF8M is the most widely used cast valve grade in chemical process and oil & gas service
Mechanical & Physical Properties of Stainless Steel Valves
Mechanical Properties (ASTM A182 — Wrought Forged Grades)
| Grade | Yield Strength Min (MPa) | Tensile Strength Min (MPa) | Elongation Min (%) | Reduction of Area Min (%) | Hardness Max (HB) | Hardness Max (HRB) |
| 304L | 170 | 458 | 30 | 50 | 201 | 92 |
| 304 | 205 | 515 | 30 | 50 | 201 | 92 |
| 316L | 170 | 485 | 30 | 50 | 217 | 95 |
| 316 | 205 | 515 | 30 | 50 | 217 | 95 |
| 317L | 170 | 485 | 30 | 50 | 217 | 95 |
| 321 | 205 | 515 | 30 | 50 | 217 | 95 |
| 347H | 205 | 515 | 30 | 50 | 201 | 92 |
| 904L | 220 | 490 | 35 | 50 | 200 | 90 |
Source: ASTM A182 / ASTM A351. Actual values reported on mill test certificate per heat.
Physical Properties of Common SS Valve Grades
| Property | SS 304 / 304L | SS 316 / 316L | SS 321 | SS 904L |
| Density (g/cm³) | 7.93 | 7.98 | 7.90 | 7.95 |
| Melting Range (°C) | 1400–1455 | 1370–1400 | 1400–1425 | 1350–1400 |
| Thermal Conductivity (W/m·K) | 16.2 | 16.3 | 16.1 | 12.0 |
| Coefficient of Thermal Expansion (×10⁻⁶/°C) | 17.2 | 16.0 | 16.6 | 15.0 |
| Electrical Resistivity (µΩ·m) | 0.72 | 0.74 | 0.72 | 1.00 |
| Magnetic Permeability | Non-magnetic (annealed) | Non-magnetic (annealed) | Non-magnetic | Non-magnetic |
Benefits of Stainless Steel Valve vs Carbon Steel Valves
| Property | Stainless Steel Valve | Carbon Steel Valve |
| Corrosion Resistance | Excellent (no coating needed) | Poor (requires painting, galvanising) |
| Hygienic Service | Suitable (food/pharma grade) | Not suitable |
| Cryogenic Service | Yes (down to –196°C) | Limited (impact toughness issue) |
| Chloride Environments | Good (316L) to Excellent (904L) | Very poor |
| Maintenance Frequency | Low | High (corrosion, painting) |
| Life Expectancy | 20–40 years in service | 5–15 years in corrosive service |
| Initial Cost | Higher | Lower |
| Total Cost of Ownership | Often lower (less maintenance) | Often higher |
Benefits of Low-Carbon Grades (304L, 316L)
- Low carbon content eliminates carbide precipitation during welding — the sensitisation that can occur in the heat-affected zone of standard 304 and 316 valves when welded in place does not occur in L-grades, meaning weld-end valves maintain corrosion resistance at the join.
- Can be used in severe corrosive environments that require both welded installation and ongoing exposure to corrosive media — 316L is the standard specification for welded valve installation in offshore and chemical plant.
- Weld annealing only required in high-stress applications — for most process installations, 304L and 316L valves can be welded without post-weld heat treatment (PWHT).
Stainless Steel Valve Pressure-Temperature Rating (ASME B16.34 — SS 316L)
| Pressure Class | Max Working Pressure at 38°C | Max Working Pressure at 260°C | Max Working Pressure at 538°C |
| Class 150# | 19.6 bar (285 psi) | 17.0 bar | 13.8 bar |
| Class 300# | 51.1 bar (740 psi) | 44.8 bar | 36.6 bar |
| Class 600# | 102.1 bar (1480 psi) | 89.6 bar | 73.3 bar |
| Class 900# | 153.2 bar (2220 psi) | 134.4 bar | 110.0 bar |
| Class 1500# | 255.3 bar (3705 psi) | 224.0 bar | 183.3 bar |
| Class 2500# | 425.5 bar (6170 psi) | 373.3 bar | 305.4 bar |
Actual P-T ratings depend on grade, temperature, and body material. Always verify against ASME B16.34 tables for the specific grade.
Complete Stainless Steel Valve Product Matrix
| Valve Type | Available Grades | Size Range | Pressure Class | End Connection |
| Ball Valve (2-pc / 3-pc) | SS 304, 316, 316L, 904L | ⅛” – 12″ | 150# – 2500# | SW, BW, Flanged, Threaded |
| Gate Valve (Forged) | SS 304, 316, 316L | ½” – 4″ | 800# – 2500# | SW, Threaded |
| Gate Valve (Cast) | CF8, CF8M | 2″ – 48″ | 150# – 600# | Flanged (RF, RTJ) |
| Knife Edge Gate Valve | SS 304, 316 | 2″ – 24″ | 150# – 300# | Flanged |
| Globe Valve (Forged) | SS 304, 316 | ½” – 4″ | 800# – 2500# | SW, Threaded |
| Globe Valve (Cast) | CF8, CF8M | 2″ – 24″ | 150# – 900# | Flanged |
| Angle Globe Valve | SS 304, 316 | ½” – 12″ | 150# – 900# | Flanged |
| Needle Valve | SS 304, 316, 316L, 321, 347H, 904L | ⅛” – 2″ | Up to 6000 PSIG | NPT, SW, Tube |
| Check Valve (Swing) | SS 304, 316 | 2″ – 48″ | 150# – 600# | Flanged |
| Check Valve (Wafer/Piston) | SS 304, 316 | ½” – 24″ | 150# – 1500# | Wafer, Flanged |
| Foot Valve | SS 304, 316 | ½” – 6″ | 150# | Flanged, Threaded |

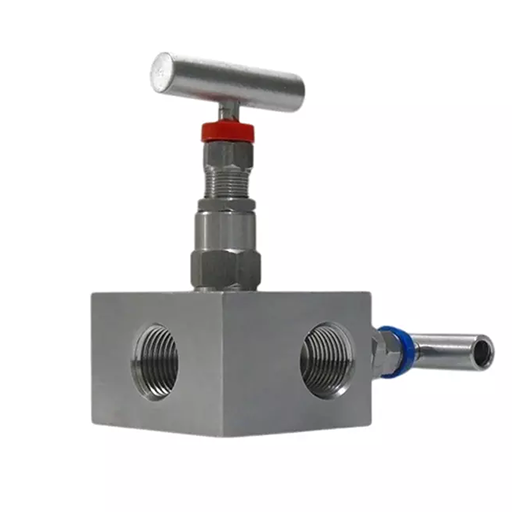

| Manifold Valve (2/3/5-way) | SS 304, 316, 316L, 904L | ⅛” – 2″ | Up to 6000 PSIG | NPT, SW, Tube |
| Butterfly Valve | SS 304, 316 | 2″ – 72″ | 150# – 300# | Wafer, Lug, Flanged |
| Pressure Relief Valve | SS 304, 316 | ½” – 8″ | Set 1–700 bar | Flanged, Threaded |
| Solenoid Valve | SS 304, 316 | ⅛” – 4″ | Up to 25 bar | NPT, SW, Flanged |
Industrial Applications of Stainless Steel Valves
| Industry | Recommended SS Grade | Valve Type Most Specified | Application Detail |
| Oil & Gas / Petrochemical | SS 316L, 317L | Ball, Gate, Globe, Check, Needle | Process isolation, pressure control, instrument connections in sour gas and crude service |
| Chemical Processing | SS 316L, 904L | Ball, Globe, Butterfly, Needle | Acid handling, solvent lines, chlorinated compound service |
| Marine & Offshore | SS 316L | Ball, Gate, Check, Manifold | Seawater cooling, firewater, ballast, offshore platform process piping |
| Power Generation | SS 321, 347H | Gate, Globe, Check | High-temperature steam and feedwater lines; thermal cycling service |
| Water & Wastewater | SS 304, 316 | Ball, Gate, Butterfly, Check | Potable water, sewage, treated effluent, water injection |
| Pharmaceutical / Biotech | SS 316L (electropolished) | Ball, Butterfly, Check, Solenoid | Sterile process lines, CIP/SIP systems, API synthesis |
| Food & Beverage | SS 304, 316L (sanitary) | Ball, Butterfly, Check, Solenoid | Hygienic process lines, dairy, brewing, beverage |
| Pulp & Paper | SS 317L | Gate, Globe, Ball, Butterfly | Bleaching liquors, washing circuits, black liquor service |
| Desalination | SS 316L, 904L | Ball, Gate, Check, Butterfly | Brine headers, evaporator lines, hot saline process streams |
| HVAC & Building Services | SS 304 | Ball, Gate, Butterfly, Float Valve | Chilled water, heating circuits, make-up water, tank level control |
| LNG & Cryogenic | SS 304L, 316L | Ball, Gate, Globe, Check | Cryogenic isolation; austenitic SS remains tough at –196°C |
| Semiconductor | SS 316L (electropolished) | Ball, Needle, Solenoid | Ultra-pure gas and chemical distribution lines |
Application Note: Choosing Between SS 304 and SS 316 Valves
The decision between SS 304 and SS 316 valves comes down to chloride exposure:- SS 304 (CF8) valves — correct for fresh water, food service, mild chemicals, indoor air, steam, and general process service where chloride concentration is below ~200 ppm and temperature below 60°C.
- SS 316 / 316L (CF8M) valves — required for seawater, marine atmospheres, swimming pools, bleach, salt solutions, and any process where chloride concentration exceeds 200 ppm or temperature is elevated. The 2–3% molybdenum content in SS 316 provides pitting corrosion resistance that SS 304 cannot replicate.
- SS 904L valves — specified for sulphuric acid (all concentrations), phosphoric acid, hydrochloric acid, and other highly aggressive media where even SS 316L is insufficient. The high molybdenum (4–5%) and nickel (23–28%) content of 904L provides resistance that sets it far above standard austenitic grades.
Quality Testing & Certifications
Stainless steel valves in process service carry fluid under pressure — a valve that fails in service creates an uncontrolled release. Every valve we supply undergoes a structured testing programme before dispatch:
| Test | Standard | What It Confirms |
|---|---|---|
| Chemical Analysis | ASTM A751 / OES | Grade identity — Cr, Ni, Mo, C content matches specification |
| Tensile & Yield Testing | ASTM A370 | Mechanical property compliance per ASTM A182 / A351 |
| Hardness Testing | ASTM E18 (Rockwell) / ASTM E10 (Brinell) | Grade and heat treatment confirmation |
| Hydrostatic Shell Test | API 598 / BS EN 12266-1 | Body and bonnet pressure-tight integrity at 1.5× rated pressure |
| Seat Leakage Test | API 598 Class A or B | Zero or allowable seat leakage at rated pressure |
| Pitting Resistance Test | ASTM G48 | Confirms Mo-bearing grades resist chloride pitting |
| IGC (Intergranular Corrosion) Test | ASTM A262 Practice E | Confirms no sensitisation in welded L-grade valves |
| Micro & Macro Analysis | ASTM E112 / ASTM E3 | Grain structure uniformity, weld quality |
| Dimensional Inspection | ASME B16.34 / B16.10 | Face-to-face, bore, port, end connections |
| PMI (Positive Material Identification) | XRF Gun | Grade confirmation at final inspection — prevents mix-ups |
| Radiographic Testing | ASME Section V | Internal weld defect detection (cast bodies, welded fittings) |
Types of Stainless Steel Valves

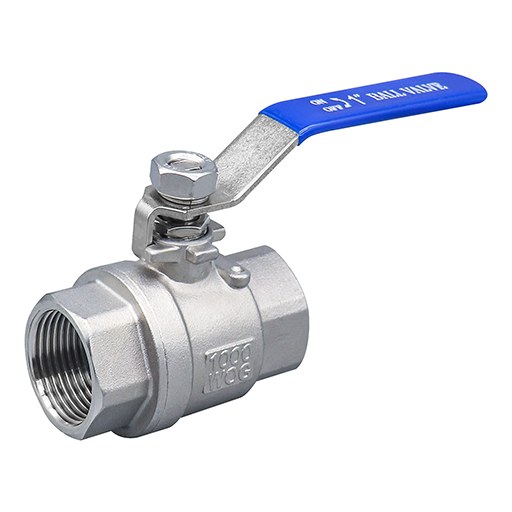

Stainless Steel Ball Valves
The stainless steel ball valve is the most widely specified isolation valve in process piping. A rotating ball with a bore provides quarter-turn on/off control with virtually zero pressure drop in the open position. We supply:
- 2-piece SS ball valve — economical, standard-duty; body splits at one joint; most common in water and utility service
- 3-piece SS ball valve — field-repairable; body splits at two joints; preferred in process and chemical service
- 2″ stainless steel ball valve, 3″ stainless steel ball valve, 4″ stainless steel ball valve — available in all standard sizes from ⅛” to 12″ (larger on request)
- 3-way stainless steel ball valve — L-port or T-port; diverts or mixes flow between three connections
- stainless steel mini ball valve — compact ⅛” to ½” for instrumentation and sampling
- socket weld ball valve — SW ends for high-pressure small-bore installations
- CF8M ball valve / cf8m 1000WOG — cast SS 316 body, 1000 psi WOG rated
- 316 stainless steel ball valve — standard specification for chloride and marine service
- SS 304 ball valve — general service where 316 is over-specified
Grade-specific pages: SS 304 Ball Valve | SS 304L Ball Valve | SS 316 Ball Valve | SS 316L Ball Valve | SS 321 Ball Valve | SS 904L Ball Valve
Stainless Steel Gate Valves
The stainless steel gate valve provides full-bore, bidirectional isolation with minimal pressure drop. Gate valves are specified where occasional isolation is needed and throttling is not — closing flow with a wedge gate seated against two parallel seats.
- Forged SS gate valve — ASTM A182 F304/F316; socket weld or threaded ends; ½” to 4″; high-pressure classes up to 2500#
- Cast SS gate valve — ASTM A351 CF8/CF8M; flanged ends; 2″ to 48″; Class 150# to 600#
- Knife edge gate valve — for slurry, pulp, and viscous fluids; SS 304/316 body
- Rising stem / non-rising stem — both configurations available
Forged Gate Valves | Cast Steel Gate Valves | Knife Edge Gate Valve
Stainless Steel Globe Valves
The stainless steel globe valve regulates and throttles flow using a plug (disc) moving perpendicular to the flow axis against a circular seat. It offers precise throttling that ball and gate valves cannot match.
- Forged SS globe valve — F304/F316; high-pressure small-bore (up to 2500#)
- Cast SS globe valve — CF8/CF8M; flanged large-bore (150# to 900#)
- Angle-type globe valve — 90° body where space constraints prevent straight-through installation; useful for pump discharge and compressor outlets
Pages: Forged Globe Valves | Cast Steel Globe Valve | Angle Type Globe Valve

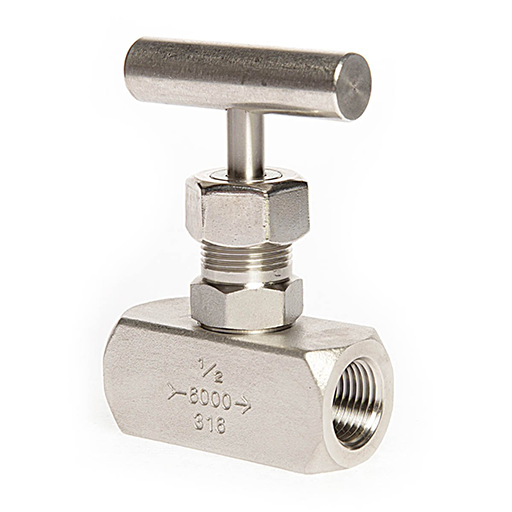

Stainless Steel Needle Valves
The stainless steel needle valve provides precise fine-throttling and metering using a long tapered needle plug. It is the standard isolation and control valve in instrumentation, gauge connections, sampling, and small-bore process piping.
- Sizes: ⅛” to 2″ (tube OD or pipe NB)
- Pressure: up to 6000 PSIG
- End connections: NPT, BSPT, SW, Dual Ferrule (tube)
- Grades: SS 304, 304L, 316, 316L, 316Ti, 317L, 321, 347H, 904L
- stainless steel needle valve configurations: angle pattern, straight pattern, and 2-way / 3-way
Grade-specific pages: SS 304 Needle Valve | SS 316 Needle Valve | SS 316L Needle Valve | SS 321 Needle Valve | SS 347H Needle Valve | SS 904L Needle Valve
Stainless Steel Check Valves (Non-Return Valves)
The stainless steel check valve — also called a stainless steel non return valve — allows flow in one direction only, preventing backflow automatically without an operator. Essential in pump discharge lines, compressor outlets, and any system where reverse flow would cause damage.
- Stainless steel swing check valve — SS 304/316; flanged ends; disc swings on a hinge; suitable for horizontal or vertical up-flow
- Wafer check valve — compact between-flange design; saves face-to-face length
- Piston check valve — spring-loaded piston; reliable at low flow rates; preferred in instrumentation lines
- stainless steel foot valve — installed at pump suction to maintain prime; SS 304/316 body
- sanitary check valve — hygienic tri-clamp or SMS-ended for food, dairy, and pharma
- cf8m check valve — cast SS 316 body; standard for process piping check applications
Page: Check Valves | Check Valves Category
Stainless Steel Manifold Valves
SS manifold valves are multi-port instrument isolation and equalising blocks that connect pressure instruments (gauges, transmitters, differential pressure cells) directly to process tapping points. Available in 2-valve, 3-valve, and 5-valve configurations.
- Grades: SS 304, 304L, 316, 316L, 317L, 321, 347H, 904L
- Pressure: up to 6000 PSIG
- End connections: NPT, SW, Flanged
Grade-specific pages: SS 304 Manifold Valve | SS 316 Manifold Valve | SS 316L Manifold Valve | SS 904L Manifold Valve
Stainless Steel Pressure Relief & Safety Valves
The stainless steel pressure relief valve opens automatically when system pressure exceeds its set point, protecting vessels, pipelines, and equipment from over-pressure. After relieving, it reseats and closes.
- stainless steel relief valve / stainless steel pressure relief valve — spring-loaded; set pressure from 1 bar to 700 bar
- stainless steel pressure reducing valve — maintains constant downstream pressure regardless of upstream variation; used in steam, gas, and water distribution
- stainless steel vacuum breaker — prevents siphoning and vacuum collapse in tank and pipeline systems
- stainless steel float valve / stainless steel float ball — level-control valve operated by a float; SS 304 or 316 body; used in tanks, cisterns, and process vessels
- stainless steel flow control valve — regulates flow rate to a set value; globe or needle design
- stainless steel solenoid valve / stainless solenoid valve — electrically operated; 24V DC, 110V AC, or 230V AC; NC or NO configuration; direct-acting or pilot-operated; stainless steel solenoid valve 24v is the most common instrumentation specification
- ½” stainless steel solenoid valve — compact inline solenoid for instrument air and process gas
Certifications & Standards
- ASME B16.34 — valve design and pressure-temperature rating standard
- API 600 — steel gate valve design standard
- API 598 — valve inspection and testing standard
- BS EN 12266-1 — industrial valves testing (European equivalent of API 598)
- EN 10204 Type 3.1 — mill test certificate; every heat traceable
- EN 10204 Type 3.2 — available with client-nominated TPI countersignature
- ISO 9001 — quality management system compliance
Third-party inspection by Lloyd’s Register, TÜV India, Bureau Veritas, SGS, or any client-nominated agency accommodated as standard.
Why Choose Kalpataru Piping Solution for Stainless Steel Valves?
- Complete SS Valve Range in One Source: Ball valves, gate valves, globe valves, needle valves, check valves, manifold valves, butterfly valves, and pressure relief valves — all grades, all types, from one supplier with one MTC package.
- Nine Stainless Steel Grades: SS 304, 304L, 316, 316L, 316Ti, 317L, 321, 347H, and 904L — most competitors stock 304 and 316 only. We cover the full austenitic range for demanding applications.
- Grade-Specific Dedicated Pages: Every grade has its own product page with specifications, dimensional data, and direct quotation — buyers find exactly what they need without navigating a general catalogue.
- Full Material Traceability: EN 10204 3.1 MTC from the mill on every order — heat number, chemical analysis, and mechanical test results are original documents, not re-issued certificates.
- Ready Stock for Common Sizes: Instrumentation valves (needle, ball, manifold) in SS 304, 316, and 316L are held in stock from ⅛” to 2″ for same-week dispatch.
- API 600 / ASME B16.34 Compliance: Our valves meet the governing design, pressure, and testing standards — not local equivalents with unverified ratings.
- Export Documentation Capability: Commercial invoice, packing list, country of origin certificate, MTC package, TPIA co-ordination — all in-house. We export regularly to the UAE, Saudi Arabia, UK, Singapore, and Australia.
- Same-Day Quoting: Submit your valve MRQ or datasheet and receive a confirmed price within 24 hours.
Kalpataru Stainless Steel Valve Grade Pages — Quick Navigation
Frequently Asked Questions – Stainless Steel Manifold Valves
A stainless steel valve is a pressure-rated flow-control device with a body made from austenitic stainless steel (SS 304, 316, 316L, or similar grades). It is used to isolate, regulate, or divert flow in piping systems handling corrosive fluids, high-purity media, seawater, food-grade liquids, pharmaceuticals, and high-temperature or cryogenic services where carbon steel would corrode or contaminate the product.
SS 316L (CF3M) is the minimum recommendation for seawater service. Its molybdenum content resists the pitting and crevice corrosion that seawater causes in SS 304. For hot concentrated brine or long-term submersion, SS 904L or super duplex grades offer even higher resistance.
Stainless steel valve pressure ratings follow ASME B16.34 classes: 150#, 300#, 600#, 800#, 900#, 1500#, and 2500#. Instrumentation needle valves and manifold valves are rated up to 6000 PSIG. The actual working pressure at temperature decreases as temperature rises — always verify against the ASME B16.34 P-T rating table for the specific grade.
Yes. Stainless steel valves are widely used for gas service — natural gas, instrument air, nitrogen, hydrogen, and specialty gases. For clean gas service, SS 304 ball valves are standard. For corrosive gases (chlorine, HCl, sour gas with H₂S), SS 316L or higher alloy grades are specified. All valves for gas service are tested to API 598 seat and shell leakage requirements before dispatch.
A stainless steel non-return check valve (also called a non-return valve or NRV) allows flow in one direction only and prevents backflow automatically without operator action. It is installed in pump discharge lines, compressor outlets, and any system where reverse flow would damage equipment. Types include swing check, wafer check, piston (spring-loaded) check, and foot valves.
Stainless steel valve price depends on type (ball, gate, globe, needle), grade (SS 304, 316, 316L, 904L), size (NB), pressure class, end connection, and order quantity. SS 316L valves cost more than SS 304 due to molybdenum content. Contact Kalpataru Piping Solution with your complete valve list — we provide grade, size, and quantity-specific pricing within 24 hours.
Need Stainless Steel Valves with Full Certification & Same-Day Quoting?
Send us your valve list — type, grade, size, pressure class, end connection, and quantity. We respond with a confirmed price and EN 10204 3.1 MTC availability within 24 hours. No size too small, no project too large.
Get a Free Quote in 24 HoursHave Any Questions ?
Please feel free to contact us. We will get back to you with 2 business days. Or just call us now.
