Nickel Pipe Fittings Manufacturer, Supplier & Exporter in India
Kalpataru Piping Solution is a reliable supplier of nickel pipe fittings manufactured from high-grade Nickel 200 and Nickel 201 alloy to meet the demanding requirement of chemical, petrochemical, marine and power generation sectors. The range of nickel fittings include elbows, tees, reducers, crosses, caps and stub ends that are produced in accordance with the ASTM B366 and ASME SB564 standard specifications that offer excellent resistance to oxidation and corrosion at elevated temperatures. Our nickel fittings are produced in-house and available in seamless butt weld and forged socket weld types that are subjected to stringent quality tests like chemical analysis and pressure testing. This ensures total customer satisfaction and reliability on each fitting that comes along with a mill test certificate. From Mumbai, we offer competitive price quotes to fabricators, EPC contractors and industrial buyers in India and abroad with reduced lead time and proper packing to meet international standards. We also specialize in supplying standard and custom size fittings with a range of dimensional specifications and technical data that can be provided on request. For more details please visit our website or contact us for a prompt reply within a day’s time.
- What Are Nickel Pipe Fittings?
- Our Nickel Pipe Fittings
- Nickel Pipe Fittings Technical Specifications
- Types of Nickel Pipe Fittings We Supply
- Nickel 200 vs Nickel 201: Which Grade Do You Need?
- Nickel Pipe Fittings Applications & Industries Served
- Why Choose Kalpataru Piping Solution
- Manufacturing Process & Quality Control
- Certifications & Standards Compliance
- Packaging & Worldwide Delivery
- FAQs About Nickel Pipe Fittings
What Are Nickel Pipe Fittings?
Nickel pipe fittings are precision-formed connectors — elbows, tees, reducers, crosses, caps and stub ends — manufactured from 99%+ pure nickel alloy (Nickel 200) or its low-carbon variant (Nickel 201). They are used to join, redirect, branch or terminate pipe runs in systems that carry caustic soda, fluorine, chlorine, hydrofluoric acid, and other aggressive media where standard steel would corrode quickly. For comparison, our stainless steel pipe fittings and duplex steel pipe fittings suit moderately corrosive service, whereas nickel is reserved for the most aggressive alkali and halogen environments. Because nickel retains its strength and ductility from sub-zero temperatures up to roughly 315°C (600°F) for Nickel 200, these fittings are equally at home in cryogenic piping and hot process lines.
Kalpataru Piping Solution manufactures and sources both categories of nickel pipe fittings, and also stocks matching nickel flanges, nickel tube fittings and nickel tubes so your entire piping system can be sourced from a single supplier:
Category | Description |
|---|---|
Butt Weld Fittings | Seamless or welded fittings designed for direct in-line welding into pipe runs (elbows, tees, reducers, caps, stub ends). |
Forged Fittings | Screwed/threaded and socket weld types used for smaller-bore, high-pressure connections (couplings, unions, plugs, bushings). |

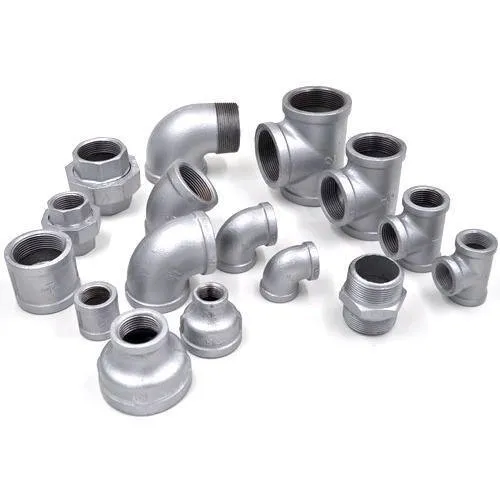

Our Nickel Pipe Fittings
Nickel Pipe Fittings Technical Specifications
Parameter | Specification |
|---|---|
Material Grades | Nickel 200 (UNS N02200), Nickel 201 (UNS N02201) |
Governing Standards | ASTM B366 (fittings) / ASME SB366, ASTM B564, ASME B16.9, ASME B16.11, MSS-SP-43, BS 1640, BS 1965 |
Fitting Types | Elbow (45°/90°/180°), Tee (equal/reducing), Cross, Reducer (concentric/eccentric), Cap, Stub End, Lateral Tee, Pipe Bend |
End Connections | Butt Weld, Socket Weld, Screwed/Threaded (NPT/BSP) |
Size Range | 1/2″ NB to 24″ NB (custom sizes on request) |
Wall Thickness / Schedule | SCH 5S, 10S, 40S, 80S, 10, 40, STD, 80, XS, 160, XXS |
Manufacturing Method | Seamless, Welded/Fabricated, Forged |
Surface Finish | Mill finish, pickled, polished, shot-blasted (as required) |
Applicable Industries | Chemical processing, petrochemical, marine, power generation, food processing, aerospace |
Testing & Certification | Chemical analysis, hydrostatic test, PMI test, radiography, mill test certificate to EN 10204 3.1 |
Types of Nickel Pipe Fittings We Supply
Butt Weld Fittings
Fitting | Typical Use |
|---|---|

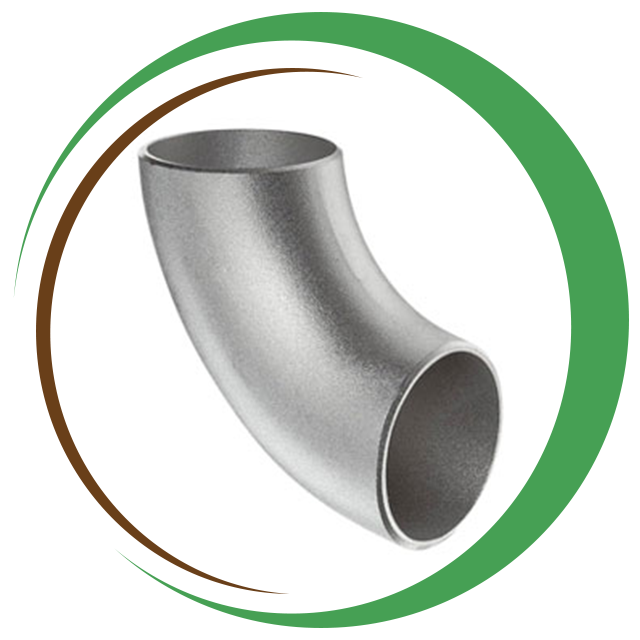

Nickel 90° / 45° Long & Short Radius Elbow | Directional change in pipe run |
Nickel 180° Return Bend | U-turn in tight layouts, heat exchanger bundles |

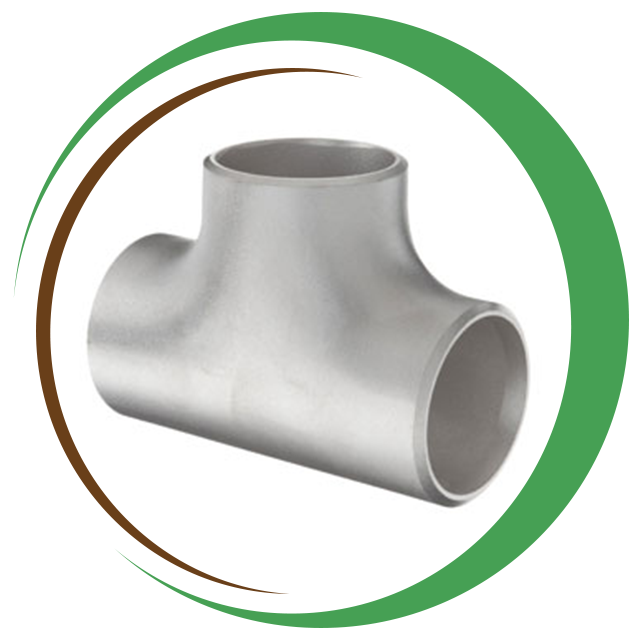

Nickel Equal Tee & Reducing Tee | Branch connection, same or reduced outlet size |

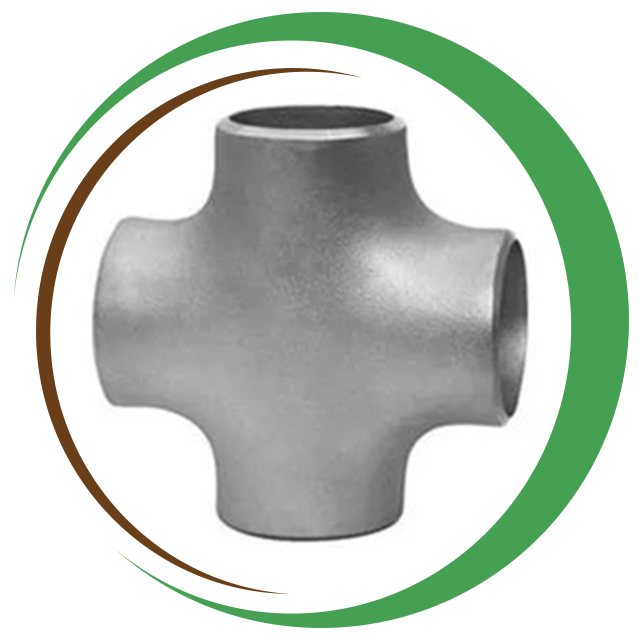

Nickel Cross (Equal & Reducing) | Four-way branch connection |

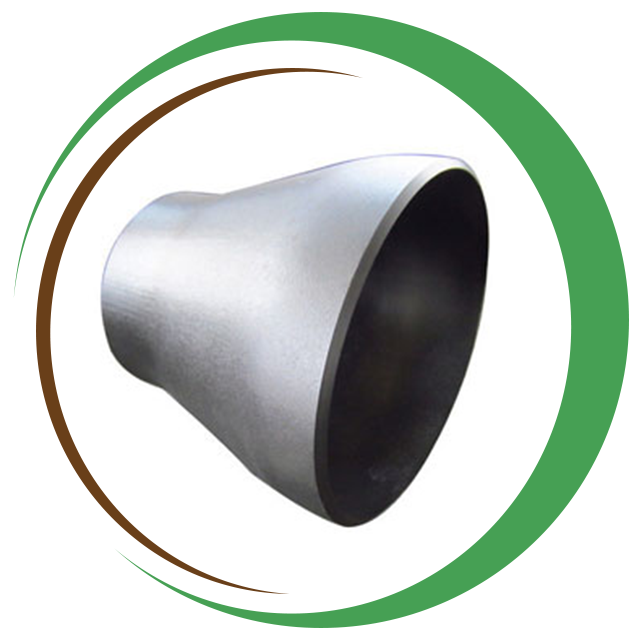

Nickel Concentric & Eccentric Reducer | Step-down/up between two pipe diameters |

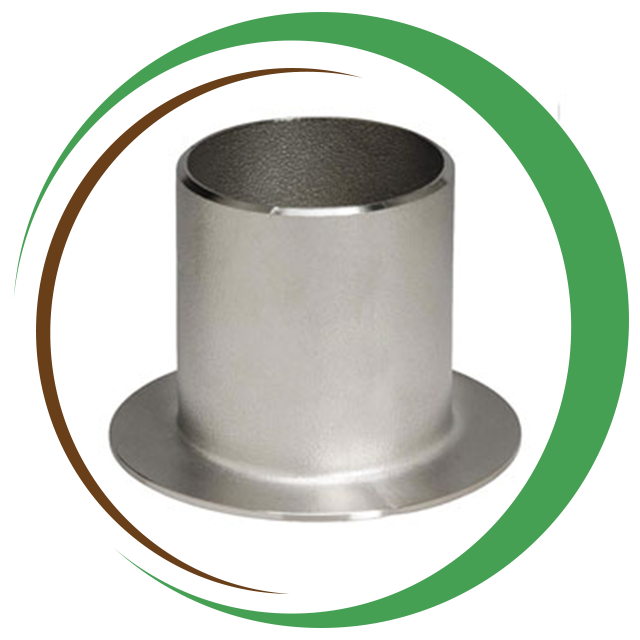

Nickel Stub End (Lap Joint) | Used with backing/lap-joint flanges for easy disassembly |
Nickel End Cap | Terminates a pipe run |

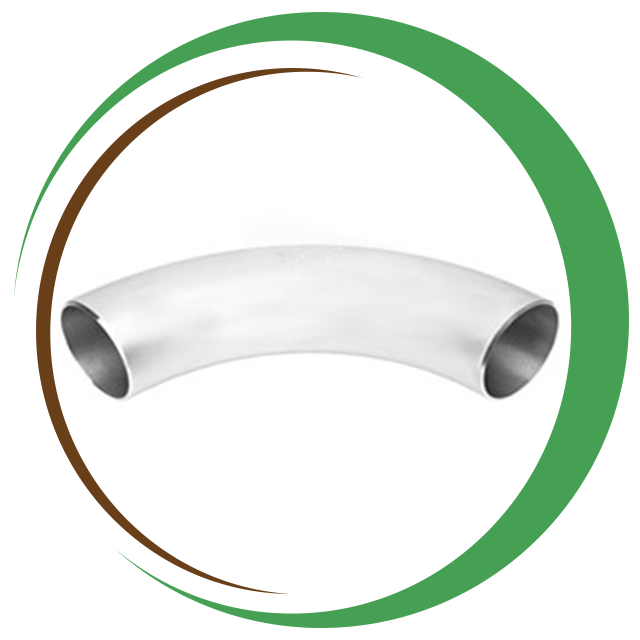

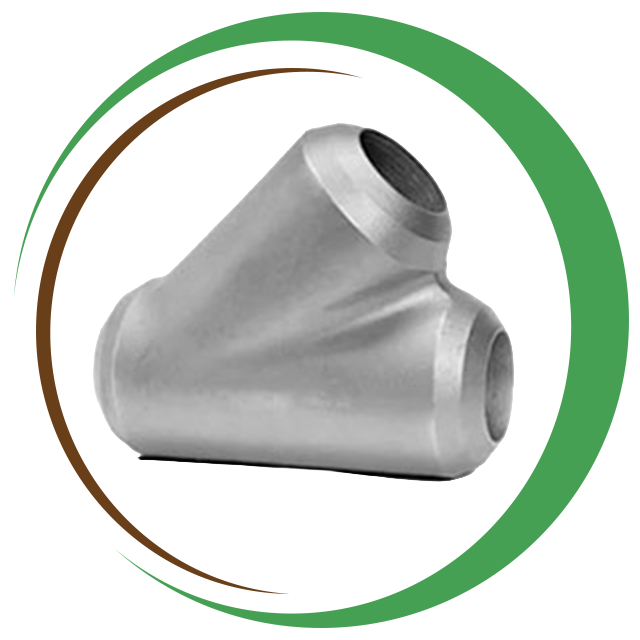

Nickel Lateral Tee / Pipe Bend | Angled branch connections and custom routing |
Forged Fittings (Threaded & Socket Weld)
Fitting | Typical Use |
|---|---|
Nickel Full / Half Coupling | Joins two pipes of equal or unequal length in-line |
Nickel Union | Allows quick disconnection for maintenance |

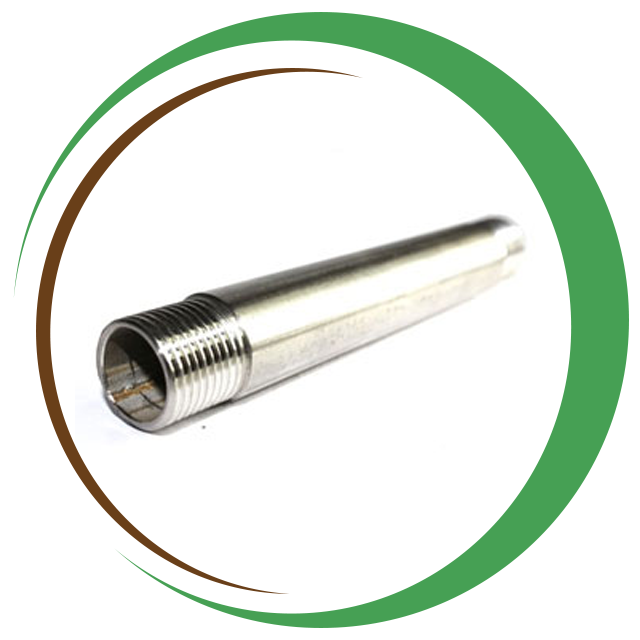

Nickel Hex Nipple & Swage Nipple | Short connector between two fittings; swage for size transition |
Nickel Hex Bushing | Reduces female thread size to fit a smaller male thread |
Nickel Cap & Plug | Seals the end of a threaded pipe or fitting |
Nickel Street Elbow | Combines male and female ends for direct fitting-to-fitting connection |
Nickel Socket Weld Elbow, Tee & Cross | Small-bore, high-pressure directional and branch connections |
Nickel Branch Outlet / Sockolet / Weldolet-type Outlet | Branch connection welded directly onto a run pipe |
Nickel 200 vs Nickel 201: Which Grade Do You Need?
Property | Nickel 200 (UNS N02200) | Nickel 201 (UNS N02201) |
|---|---|---|
Carbon Content | Up to 0.15% | Max 0.02% (low-carbon) |
Max Service Temperature | Up to ~315°C (600°F) | Above 315°C, better for high-temp service |
Best Suited For | General corrosive service, caustic handling below 600°F | High-temperature service where carbon-graphite embrittlement must be avoided |
Typical Applications | Caustic soda plants, food processing, chemical transfer lines | Furnace components, high-temperature caustic evaporators |
Nickel Pipe Fittings Applications & Industries Served
Industry | Where Nickel Fittings Are Used |
|---|---|
Chemical & Petrochemical Processing | Caustic soda, chlorine and fluorine handling systems |
Oil & Gas Refineries | Corrosive process lines and heat exchanger piping |
Marine & Offshore Engineering | Seawater and saline-exposed piping networks |
Power Generation | High-temperature steam and feedwater lines |
Food & Pharmaceutical Processing | Hygienic, non-contaminating fluid transfer |
Aerospace & Electronics | Low-magnetic-permeability components |
Working across several alloy grades on one project? Our teams also supply matching monel pipe fittings, inconel pipe fittings and copper nickel pipe fittings for the same piping network.
Why Choose Kalpataru Piping Solution
Advantage | What It Means for You |
|---|---|
Ready stock | Standard sizes and schedules available for immediate dispatch |
Standards-aligned manufacturing | Sourced and produced to ASTM / ASME / MSS international standards |
Rigorous quality inspection | In-house and third-party radiography, PMI and hydro testing available |
Transparent pricing | Competitive rates with no hidden costs |
Export-ready operations | Proper packaging and documentation for global shipments |
Technical support | Dedicated team for grade selection, custom sizing and application guidance |
Browse our complete pipe fittings range and matching steel flanges, or read more about Kalpataru Piping Solution and our manufacturing standards.
Manufacturing Process & Quality Control
Our nickel pipe fittings move through a controlled, traceable production flow:
Step | Process Stage | What Happens |
|---|---|---|
1 | Raw Material Selection | Certified nickel billets/plates sourced from approved mills |
2 | Forming | Hot forming, forging or pressing to the required fitting geometry |
3 | Heat Treatment | Solution annealing to relieve stress and restore ductility |
4 | Surface Treatment | Pickling, blasting or polishing as specified |
5 | Bevelling & Dimensional Check | Edge preparation to ASME B16.25 for weld-ready fittings |
6 | Final Inspection | Visual, dimensional, PMI and hydrostatic/radiographic testing before packing |
Certifications & Standards Compliance
Certification / Standard | Coverage |
|---|---|
ISO 9001:2015 | Quality Management System |
ASTM B366 / ASTM B564 / ASME SB366 / ASME SB564 | Material & manufacturing standard for fittings and forgings |
ASME B16.9, ASME B16.11, MSS-SP-43, BS 1640, BS 1965 | Dimensional compliance |
EN 10204 3.1 / 3.2 | Mill test certificate & third-party inspection |
SGS / BV / TUV / Lloyd’s (on request) | Independent third-party inspection agency approval |
Packaging & Worldwide Delivery
Every nickel pipe fitting is cleaned, individually wrapped, and packed in wooden crates or corrugated cartons with grade, heat number, size and standard clearly marked for easy identification at the job site. We coordinate FOB, CIF and door-delivery shipments to ports across the Middle East, Europe, Southeast Asia, Africa and the Americas, with export documentation (COO, MTC, packing list) prepared in advance to avoid customs delays.
People Ask About Nickel Pipe Fittings
Nickel Alloy Pipe Fittings are used in corrosive, high-temperature, and high-pressure applications across chemical, oil & gas, marine, and power industries.
They are commonly manufactured as per ASTM B366 / ASME SB366 and dimensions like ASME B16.9 and MSS-SP-43.
Yes, Nickel Alloy Pipe Fittings are available in both seamless and welded forms based on application requirements.
Nickel pipe is used in applications requiring high corrosion resistance, strength, and temperature stability. It is commonly used in chemical processing, oil and gas, petrochemical, marine, power generation, and heat exchanger systems where durability and reliable performance are essential.
Get the Right Nickel Pipe Fittings for Your Project — Fast.
Share your size, grade and quantity requirement and our technical team will revert with a detailed quotation, technical data sheet and delivery timeline within 24 hours.
Request a Quote Now
