Monel 400 & K500 Pipe Fittings Manufactured and Exported in Mumbai
If you’ve spent any time sourcing piping components for a marine or chemical processing job, you already know Monel doesn’t behave like ordinary stainless steel and buying it from the wrong supplier can cost you weeks of delay. That’s the gap Kalpataru Piping Solution set out to close. Working out of our Mumbai facility, we manufacture and export Monel 400 pipe fittings and Monel K500 pipe fittings elbows, tees, reducers, stub ends, caps and crosses built to ASTM B366 / ASME SB366 and dimensioned per ASME B16.9 and B16.11, so what you order is exactly what you specified, down to the wall thickness. We’ve supplied EPC contractors handling desalination lines, shipyards fabricating seawater piping, and process plants running acid duty, and in every case the ask is the same: real mill certificates, honest lead times, and a fitting that fits the first time. Every batch leaving our factory carries EN 10204 3.1 documentation, and larger orders can be inspected by Lloyds, TUV or Bureau Veritas before they ever leave the port. If you’re comparing suppliers right now, the fastest way to find out if we’re a fit is simply to send us your size list. We’ll come back with pricing the same day.
- What Exactly Are Monel 400 & K500 Pipe Fittings?
- Fitting Types We Manufacture
- Technical Specifications
- Specification Chart
- Chemical Composition
- Mechanical Properties
- Physical Properties
- Pressure–Temperature Ratings
- Dimension Chart
- Dimensional Tolerances
- Where These Fittings Actually Get Used
- Monel 400 vs Monel K500: Which One Do You Actually Need?
- How We Manufacture and Test Every Batch
- Certifications & Standards We Work To
- Indicative Price List
- Packaging & Dispatch
- FAQ’s About Monel 400 Pipe Fittings
What Exactly Are Monel 400 & K500 Pipe Fittings?
Monel is, at its core, a nickel-copper alloy — roughly two-thirds nickel, a third copper — and that ratio is what makes it shrug off seawater and hydrofluoric acid in a way carbon steel simply can’t. Monel 400 (UNS N04400, also known by its Werkstoff number 2.4360) is the workhorse grade: tough, weldable, and reliably corrosion-resistant across a wide temperature band. Monel K500 (UNS N05500 / 2.4375) starts from the same base chemistry but gets a boost from small additions of aluminium and titanium, which are then age-hardened to nearly double the tensile strength. In practice, that makes K500 the grade engineers reach for when a component also has to carry mechanical load — pump shafts, valve stems, fasteners — not just resist corrosion.
At Kalpataru Piping Solution, we turn both alloys into a complete family of fittings — and if your bill of materials also calls for matching Monel 400/K500 flanges, Monel 400 tube fittings, or Monel 400 tubes, we stock those too, so your whole piping package can come from one mill test certificate lineage instead of three different vendors.

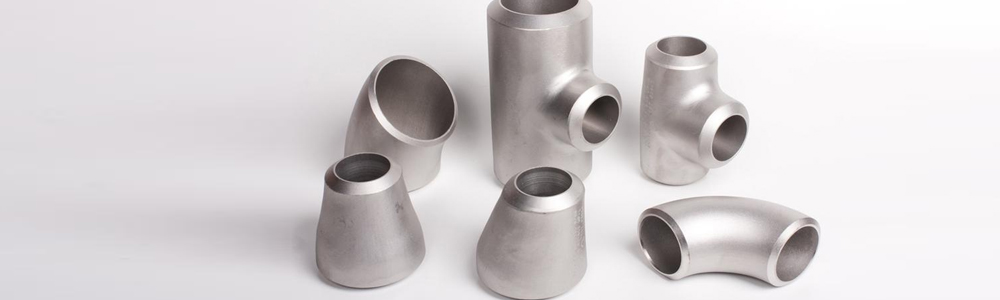

Fitting Types We Manufacture
- 90° & 45° elbows (long radius and short radius)
- 180° return bends
- equal and reducing tees
- concentric and eccentric reducers
- stub ends, both long and short pattern
- end caps
- equal and unequal crosses
- pipe bends in 1D, 2D, 3D, 5D, 6D and 10D radii
- socket-weld and threaded fittings — couplings, unions, nipples, plugs, bushings
Technical Specifications
Monel 400 Pipe Fittings Specification Chart
Parameter | Details |
|---|---|
Governing Specification | ASTM B366 / ASME SB366 |
Grade | Monel 400 (UNS N04400), Monel K500 (UNS N05500) |
Equivalent Designation | Werkstoff 2.4360 (Monel 400), 2.4375 (Monel K500) |
Size Range | 1/2″ NB to 24″ NB (DN15–DN600) |
Thickness | SCH 10S to SCH XXS |
Construction | Seamless / Welded / Fabricated |
Dimensional Standards | ANSI/ASME B16.9, B16.28, B16.11, MSS SP-43, MSS SP-79/83/95/97, BS 3799 |
Bending Radius | R = 1D, 2D, 3D, 5D, 6D, 8D, 10D, or custom on drawing |
End Finish | Beveled for welding, threaded (NPT/BSP), or socket-weld |
Testing Performed | Hydrostatic test, X-ray/UT flaw detection, PMI, spectrographic analysis |
Monel 400 Pipe Fittings Chemical Composition (%)
Element | Monel 400 | Monel K500 |
|---|---|---|
Nickel (Ni) | 63.0 min | 63.0 min |
Copper (Cu) | 28.0 – 34.0 | 27.0 – 33.0 |
Iron (Fe) | 2.5 max | 2.0 max |
Manganese (Mn) | 2.0 max | 1.5 max |
Carbon (C) | 0.3 max | 0.25 max |
Silicon (Si) | 0.5 max | 0.5 max |
Sulfur (S) | 0.024 max | 0.010 max |
Aluminium (Al) | — | 2.30 – 3.15 |
Titanium (Ti) | — | 0.35 – 0.85 |
Monel 400 Pipe Fittings Mechanical Properties
Property | Monel 400 | Monel K500 |
|---|---|---|
Tensile Strength (min) | 550 MPa / 80 ksi | 1100 MPa / 160 ksi |
Yield Strength (min) | 240 MPa / 35 ksi | 790 MPa / 115 ksi |
Elongation (min) | 40% | 20% |
Hardness | 110–150 HB | 250–350 HB |
Density | 8.80 g/cm³ | 8.44 g/cm³ |
Melting Point | 1300–1350°C | 1315–1350°C |
Monel 400 Pipe Fittings Physical Properties
Property | Metric | Imperial |
|---|---|---|
Density | 8.8 g/cm³ | 0.318 lb/in³ |
Melting Range | 1300–1350°C | 2370–2460°F |
Coefficient of Expansion (20–100°C) | 13.9 µm/m·°C | 7.7×10⁻⁶ in/in·°F |
Modulus of Elasticity | 105–120 kN/mm² | 15,230–17,405 ksi |
Electrical Resistivity | 547 µΩ·m | — |
Monel Alloy 400 / K500 Pipe Fittings Types
Pressure–Temperature Ratings (Class 300, psig)
Temperature (°F / °C) | 1/4″–1″ NB | 1 1/4″–2″ NB | 2 1/2″–3″ NB |
|---|---|---|---|
-20 to 150 / -29 to 66 | 2000 | 1500 | 1000 |
200 / 93 | 1785 | 1350 | 910 |
300 / 149 | 1360 | 1050 | 735 |
400 / 204 | 935 | 750 | 560 |
500 / 260 | 510 | 450 | 385 |
550 / 288 | 300 | 300 | 300 |
Dimension Chart (ASME B16.9, Select Sizes)
NPS (inch) | O.D. (mm) | 90° LR Elbow C-to-F (in) | 45° LR Elbow C-to-F (in) | Equal Tee C-to-E (in) |
|---|---|---|---|---|
1/2 | 21.3 | 1 1/2 | 5/8 | 1 1/2 |
1 | 33.4 | 1 1/2 | 7/8 | 1 1/2 |
2 | 60.3 | 3 | 1 3/8 | 3 |
4 | 114.3 | 6 | 2 1/2 | 4 1/2 |
6 | 168.3 | 9 | 3 3/4 | 6 |
8 | 219.1 | 12 | 5 | 7 |
12 | 323.9 | 18 | 7 1/2 | 10 |
Dimensional Tolerances
Normal Pipe Size (NPS) | O.D. Tolerance | Wall Thickness Tolerance | Center-to-End Tolerance |
|---|---|---|---|
1/2 to 2-1/2 | +0.06 / -0.03 | Not less than 87.5% of nominal | +/- 0.06 |
3 to 3-1/2 | +/- 0.06 | Not less than 87.5% of nominal | +/- 0.06 |
5 to 8 | +/- 0.06 | Not less than 87.5% of nominal | +/- 0.06 |
10 to 18 | +0.16 / -0.12 | Not less than 87.5% of nominal | +/- 0.09 |
20 to 24 | +0.25 / -0.19 | Not less than 87.5% of nominal | +/- 0.09 |
Where These Fittings Actually Get Used
We’ve supplied Monel 400 and K500 fittings into projects across:
- marine engineering and seawater piping systems
- chemical and petrochemical processing plants
- oil and gas exploration and refining
- desalination and water treatment plants
- heat exchangers and condensers
- pulp and paper manufacturing
- pharmaceutical and food processing equipment
- pumps, valves and shafting, particularly the K500 grade
If your project also involves higher-nickel or higher-chromium alternatives, it’s worth comparing against our Inconel 625 pipe fittings, Hastelloy C276 tube fittings, or Duplex Steel S31803/S32205 pipe fittings — our engineering team can help you decide which alloy actually fits the service condition rather than just the spec sheet.
Monel 400 vs Monel K500: Which One Do You Actually Need?
This is probably the single most common question we get from first-time buyers, so here’s the short version:
Criteria | Monel 400 | Monel K500 |
|---|---|---|
Strength | Moderate | High (age-hardened) |
Weldability | Excellent, no special prep needed | Good, but pre-weld solution treatment is advisable |
Typical Use | General corrosion-resistant piping, pumps, valves | Shafts, fasteners, springs, high-load marine parts |
Corrosion Resistance | Excellent in seawater and acids | Excellent, marginally lower than Monel 400 |
Relative Cost | Lower | Higher, due to the age-hardening heat cycle |
How We Manufacture and Test Every Batch
- Raw material verification — PMI testing and mill certificates traceable to EN 10204 3.1
- Forming — press machines, hot/cold bending, and hydraulic pushing for seamless bends
- Heat treatment — solution annealing, and for K500, a controlled age-hardening cycle
- Surface finishing — pickling, passivation, or bright annealing depending on your spec
- Non-destructive testing — ultrasonic flaw detection, X-ray radiography, dye penetrant inspection
- Final inspection — dimensional checks, hydrostatic testing, and third-party inspection through Lloyds, TUV, or Bureau Veritas on request
Certifications & Standards We Work To
- ISO 9001:2015 — Quality Management
- ISO 14001:2015 — Environmental Management
- ISO 45001:2018 — Occupational Health & Safety
- PED 97/23/EC — European Pressure Equipment Directive
- ASTM B366 / ASME SB366 — Manufacturing Standard
- ASME B16.9 & B16.11 — Dimensional Standards
- NACE MR-01-75 — Sour Service Compliance
Indicative Price List (FOB Mumbai, Per Piece)
Fitting Type | Size | Approx. Price (USD) |
|---|---|---|
Monel 400 90° Elbow | 2″ SCH 40 | US $28 – 35 |
Monel 400 90° Elbow | 4″ SCH 40 | US $75 – 95 |
Monel 400 Equal Tee | 2″ SCH 40 | US $40 – 55 |
Monel 400 Concentric Reducer | 4″ x 2″ | US $50 – 70 |
Monel K500 Stub End | 2″ Long Pattern | US $60 – 85 |
These figures move with schedule, seamless-versus-welded construction, and order quantity, so treat them as a starting point rather than a quote — send us your actual size list and we’ll come back with firm numbers.
Packaging & Dispatch
Aspect | Standard Practice |
|---|---|
Domestic Packaging | Jute bags / HDPE woven sacks, or as specified by the client |
Export Packaging | Wooden boxes or export-grade sacks with waterproof lining |
Port of Dispatch | Mumbai (JNPT/Nhava Sheva) or Mundra Port |
Documentation Included | Commercial invoice, packing list, mill test certificate (EN 10204 3.1), COO |
FAQ’s About Monel 400 Pipe Fittings
Monel 400 is a solid-solution alloy with excellent general corrosion resistance. Monel K500 starts from the same chemistry but is age-hardened with aluminium and titanium, which nearly doubles its tensile strength — that’s why it’s used for shafts and fasteners rather than plain piping.
We manufacture and supply Monel 400 and K500 pipe fittings from 1/2″ NB up to 24″ NB, in both seamless and welded construction, across schedules from SCH 10S through XXS.
Yes — that’s actually one of the alloy’s defining strengths. Its nickel-copper composition resists seawater, brine, and marine atmospheres well enough that it’s a standard choice for offshore and shipbuilding piping.
Every consignment ships with EN 10204 3.1 mill test certificates and radiography reports as standard. If you need third-party inspection through Lloyds, TUV, or Bureau Veritas, just flag it at order stage and we’ll arrange it.
Stock sizes typically go out within 7–10 working days. Custom sizes or larger diameters usually take 3–5 weeks, depending on quantity and the testing you’ve specified.
