Hastelloy C276 Manifold Valves Supplier & Manufacturer in India

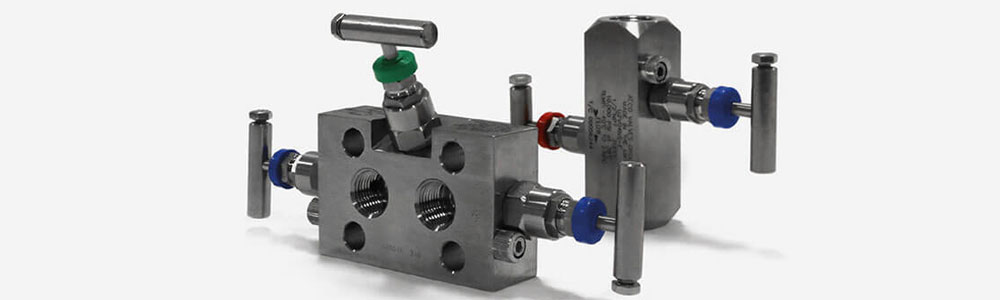

Hastelloy C276 Manifold Valves are precision-engineered instrumentation valves manufactured from UNS N10276 nickel-molybdenum-chromium alloy. Kalpataru Piping Solution, a leading Hastelloy C276 Manifold Valves Supplier and Manufacturer in India, supplies 2-way, 3-way, and 5-way configurations for oil & gas, chemical processing, and power generation applications. With exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking, these valves perform reliably up to 650°C and across pressure ratings from 1,500 to 15,000 PSI. Hastelloy C276 instrumentation manifold valves may experience reduced ductility at cryogenic temperatures. They also provide strong resistance to scaling up to about 650 °C. Nickel Alloy C276 hydraulic manifold valves can be heat-treated for fabrication and installed easily in a variety of hydraulic systems.
Available in Hastelloy C-276 (UNS N10276 / DIN 2.4819), these manifold valves are supplied in 2-way, 3-way, and 5-way layouts with direct-mount and remote-mount options. As a Hastelloy Manifold Valve Supplier in Mumbai, Kalpataru ships globally with full documentation.
Kalpataru Piping Solution is a renowned Hastelloy Alloy C276 Manifold Valves supplier, suitable for service in steam, food media, hot gases, alkalies, mild acids, dry air, and fresh water. Hastelloy C276 Three Valve Manifold Direct Mount T Type Valves and Hastelloy C276 Three Valve Manifold Direct Mount H Type Valves can show comparatively lower corrosion resistance than certain austenitic grades, so selection should match the medium and duty. Operating temperature limits for these assemblies can be influenced by strength loss at elevated temperatures and reduced ductility at sub-zero conditions. Hastelloy C276 Coplanar Mounting Three Valve Manifold with Drain Plugs Valves provide strong heat and corrosion performance when properly hardened. A smooth surface finish on Hastelloy C276 Five Valve Manifold Remote Mount Valves helps improve sealing, flow, and overall service life.
Kalpataru stocks Hastelloy C276 Block and Bleed Valves, V/VB/VL series manifolds, and H-type and T-type 3-way and 5-way remote-mount configurations. They serve as authorised dealer, distributor, stockist, and exporter of Alloy C276 manifold assemblies across India and international markets.
Hastelloy C276 Five Valve Manifold Direct Mount T Type Valves deliver reliable scaling resistance up to 650 Deg Celsius. However, the mechanical characteristics of Hastelloy C276 Five Valve Manifold Direct Mount H Type Valves can decline in the 400 Deg Celsius to 580 Deg Celsius range. Hastelloy C276 Five Valve Manifold Coplanar Mount Valves are used widely in bolts, screws, bushings, nuts, shafts, pumps, valves, petroleum fractionating structures, gas turbines, mine ladder rungs, and more.
Table of content
- Types of Hastelloy C276 Manifold Valvess
- Chemical Composition of Hastelloy C276 Manifold Valves
- Hastelloy C276 Manifold Valve Specification
- Mechanical Properties of Hastelloy C276 Manifold Valves
- Hastelloy C-276 Equivalent Standard Grade
- Instrumentation Manifold Valve Dimension Chart
- Direct Mount vs Remote Mount Manifold Valves
- Hastelloy C276 Manifold Valve Price in India
- Quality Assurance
- Material Testing
- Hastelloy C276 Manifold Valves Price
- Hastelloy C276 Manifold Valves Size
- Why Choose Kalpataru Piping Solution
- Our Related Products
- Frequently Asked Questions About Hastelloy C276 Manifold Valves
Types of Hastelloy C276 Manifold Valves
Hastelloy C276 2 Valve Manifold
Hastelloy C276 3 Valve Manifold
Hastelloy C276 5 Valve Manifold
Chemical Composition of Hastelloy C276 Manifold Valves
| Grade | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C276 | Balance | 0.01 max | 15–17 | 1.0 max | 0.08 max | 4–7 | 0.04 max | 0.03 max | 2.5 max | 14.5–16.5 | 3–4.5 | 0.35 max |
Hastelloy C276 Manifold Valve Specification
| Material | Hastelloy |
|---|---|
| Valve Size | 1/8″ to 1″ |
| Thread | NPT, BSPP, BSPT |
| Connection | Threaded, Flange End |
| Type | R Type, T Type, H Type |
| Function | 2 Way, 3 Way, 5 Way |
| Body Shape | Square, Rectangle |
| Pressure Rating | 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI |
| Orifice Size | 2 mm to 9.5 mm |
| Media Temperature | (-120°C to 500°C) Range as per Pressure |
| Body Type | Bar Stock, Forged |
| Handle | Bar T-Handle |
| Packing Details | Box Packing, Wooden Pallet |
| Equivalent Brands | Swagelok, Parker, Rosemount, Hamlet, Oliver Valves, Hoke |
Mechanical Properties of Hastelloy® C276 Manifold Valves
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
Hastelloy C-276 Manifold Valves Equivalent Standard Grade
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | OR | GOST |
|---|---|---|---|---|---|---|---|
| Hastelloy C276 | N10276 | 2.4819 | – | NiMo16Cr15W | NW 0276 | ЭП760 | ХН65МВУ |
Hastelloy C276 Instrumentation Manifold Valve Dimension Chart
| Connections | Dimension | ||
|---|---|---|---|
| Connection of Instrument | Connection of Process | A | B |
| 1/4″ Male | 1/4″ Female | 80 | 24 |
| 3/4″ Female | 3/4″ Female | 115 | 38 |
| 1/2″ Male | 1/2″ Female | 115 | 30 |
| 1/4″ Female | 1/4″ Female | 80 | 24 |
| 1/4″ Male | 1/4″ Male | 80 | 24 |
| 1/2″ Female | 1/2″ Male | 115 | 30 |
| 3/4″ Male | 3/4″ Male | 115 | 38 |
| 1/2″ Male | 1/2″ Male | 115 | 30 |
| 3/4″ Female | 1/2″ Male | 115 | 38 |
| 1/2″ Male | 3/4″ Female | 115 | 30 |
| 3/4″ Male | 3/4″ Female | 115 | 38 |
Hastelloy C276 Direct Mount vs Remote Mount Manifold Valves
Compare direct-mount and remote-mount manifold layouts for transmitters and gauges.
| Remote Mount Manifold | Direct Mount Manifold |
|---|---|
|
|
Hastelloy C276 Manifold Valve Price in India
Description | Price |
Hastelloy C276 Manifold Valve | ₹7,000/ Piece |
UNS N10276 Manifold Control Valve | ₹6,700/ Piece |
Prices shown are indicative per-piece rates for standard configurations. Actual cost varies by valve type, size, pressure rating, and order volume. Request a quote for project-specific pricing.
Quality Assurance
Our Hastelloy N10276 (C276) Manifold Valves are produced in strict compliance with globally recognized standards such as ASTM, ASME, BS, MSS, EN, DIN, and WERKSTOFFE. Each valve is carefully monitored throughout the manufacturing process to ensure consistent quality and reliability. Before dispatch, every product is thoroughly inspected to meet both industry requirements and customer expectations.
Material Testing
Hastelloy C276 Manifold Valves undergo comprehensive testing procedures to guarantee performance under demanding conditions. These include burst testing, ultrasonic examination, mechanical property evaluation, cryogenic testing, low-temperature and high-temperature assessments, as well as high-pressure gas testing. All tests are conducted at our Mumbai facility using calibrated equipment compliant with ISO 17025 standards, with reports available on request.. We also support stage-wise inspections by client representatives or authorized third-party inspection agencies to ensure complete transparency.
Hastelloy C276 Manifold Valves Price
The price of Hastelloy C276 Manifold Valves varies depending on factors such as valve configuration (2, 3, or 5 valve manifold), size, pressure rating, and customization requirements. Due to the high nickel and molybdenum content in Alloy C276, these valves are typically positioned in the premium segment. For accurate pricing, it is recommended to request a quote based on your specific application, quantity, and technical specifications. Bulk orders and long-term supply agreements may also offer cost advantages.
Hastelloy C276 Manifold Valves Size
Hastelloy C276 Manifold Valves are available in a wide range of sizes to meet diverse industrial requirements. Standard sizes typically range from 1/4” to 1”, with options for customized dimensions based on project needs. These valves are designed to handle high-pressure and high-temperature environments, making them suitable for critical applications in oil & gas, chemical processing, and power generation industries.
Why Choose Kalpataru Piping Solution
Kalpataru Piping Solution is recognized for delivering high-quality Hastelloy C276 Manifold Valves that meet international standards and industry demands. With a strong focus on precision manufacturing, strict quality control, and timely delivery, the company ensures reliable performance across all products. Their expertise in handling corrosion-resistant alloys, combined with competitive pricing and customer-centric service, makes them a preferred choice for clients worldwide. Additionally, they offer customization options, technical support, and third-party inspection to meet specific project requirements.
Our Related Products
Other Available Stock of Hastelloy Alloy C276 Manifold Valves
- Hastelloy C276 Straight Type 3 Way
- Hastelloy Alloy C276 T-Type 3 way
- Alloy C276 2 Way Manifold Valve, R Type, Block and Bleed
- Alloy UNS N06022 2 Way Manifold Valves, R Type, Remote Mounting
- DIN 2.4602 2 Way Manifold Valves, T Type, Direct Mounting
- Hastelloy Alloy C276 2 Way Manifold Valves, H Type, Direct Mounting
- Hastelloy C276 3 Way Manifold Valves, R Type, Remote Mounting
- JIS NW 0276 3 Way Manifold Valves, Coplanar, Direct Mounting
- Hastelloy C276 3 Way Manifold Valves, H Type, Direct Mounting
- Hastelloy C276 MANIFOLD-R-2 Way-01
- Hastelloy Alloy® C-276 MANIFOLD-R-2 Way-03
- Alloy C276 5 Way Manifold Valves, T Type, Direct Mounting
- Hastelloy Alloy C276 T-TYPE MANIFOLD
- Hastelloy C276 H-TYPE MANIFOLD
- UNS N06600 3 Way Manifold Valves, T Type, Direct Mounting
- Alloy C276 5 Way Manifold Valves, R Type, Remote Mounting
- Hastelloy C276 5 Way Manifold Valves, Coplanar, Direct Mounting
- Hastelloy C276 MANIFOLD-R-2 Way-02
- Hastelloy C276 5 Way Manifold Valves, H Type, Direct Mounting
- Nickel Alloy C276 MANIFOLD-R-2 Way-04
- Hastelloy C276 MANIFOLD-R-2 Way-05
- Hastelloy C276 MANIFOLD-R-2 Way-06
- Hastelloy C276 MANIFOLD-T-2 WAY
Suppliers and Exporters of Hastelloy C276 Manifold Valves in Countries Like
Frequently Asked Questions About Hastelloy C276 Manifold Valves
Hastelloy C276 Manifold Valves are primarily used in instrumentation systems to control, isolate, and measure pressure in pipelines. They are widely used in industries such as oil & gas, chemical processing, and power plants where corrosion resistance is critical.
Hastelloy C276 offers excellent resistance to corrosion, pitting, and stress corrosion cracking, especially in aggressive chemical environments. This makes it ideal for harsh applications involving acids, chlorides, and high temperatures.
These valves are commonly available in 2-valve, 3-valve, and 5-valve configurations, depending on the application requirements such as pressure measurement, isolation, and equalization.
The standard size range typically varies from 1/4” to 1”, with options for customization based on specific industrial needs and system requirements.
Yes, these valves are designed to withstand high-pressure and high-temperature conditions, making them suitable for critical and demanding industrial environments.
Yes, they are manufactured according to international standards such as ASTM, ASME, and DIN, ensuring quality, safety, and performance.
Yes, they can be customized in terms of size, configuration, end connections, and pressure ratings to meet specific project requirements.
