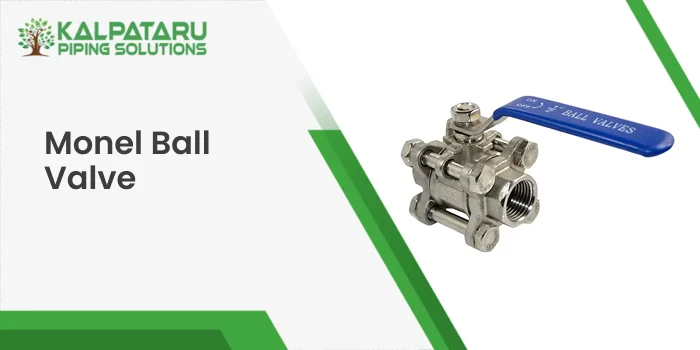

Monel Ball Valve

What Is a Monel Ball Valve?

A Monel Ball Valve is an industrial flow-control valve manufactured from Monel alloy — a nickel-copper alloy containing a minimum of 63% nickel, up to 34% copper, and trace amounts of iron, manganese, and silicon. This composition gives the valve exceptional resistance to corrosion in both oxidising and reducing environments, far outperforming stainless steel in chloride-rich, acidic, and marine conditions.

Monel alloy comes primarily in two grades used for ball valves:

• Monel 400 (UNS N04400 / DIN 2.4360): The standard grade, ideal for seawater, brackish water, brine, hydrochloric acid, and sulphuric acid service. The workhorse of marine piping and chemical plants.
• Monel K500 (UNS N05500 / DIN 2.4375): A precipitation-hardened variant with roughly three times the yield strength of Monel 400. Chosen for high-pressure subsea, pump shaft, and fastener applications where strength and corrosion resistance must coexist.

Why Industry Professionals Choose Monel Ball Valves

Monel’s unique metallurgy delivers properties that most other alloys cannot match simultaneously:

• Remains non-magnetic in most conditions — critical for subsea and instrumentation work
• Retains mechanical strength from cryogenic temperatures up to 500 °C
• Resists stress-corrosion cracking in freshwater and mildly corrosive environments
• Withstands erosion from fast-moving brackish water and steam
• Compatible with hydrofluoric acid — an application where stainless steel fails

Kalpataru Piping Solution’s Monel pipe fittings, Monel flanges, and Monel tubes are manufactured from the same alloy grades, letting engineers specify a fully compatible Monel piping system from a single supplier.

Monel Ball Valves Material Grades

Monel 400 Needle Valve

Types of Monel Ball Valves

Kalpataru Piping Solution supplies the full spectrum of Monel ball valve configurations. Each type is described below with its key characteristics:

Body Construction Options

Monel ball valves are available in three body configurations:

• One-piece (1-PC): Lowest cost; non-repairable; ideal for low-pressure, non-critical service.
• Two-piece (2-PC): Most common; one body joint reduces leakage potential; field-maintainable.
• Three-piece (3-PC): Easiest disassembly; internal port can be swapped without removing from pipeline.

End Connection Options

Threaded (NPT, BSPP, BSPT) · Socket Weld · Butt Weld · Flanged (ASME B16.5, 150 LB – 600 LB) · Compression / Ferrule · Weld Nipple · SAE

Monel 400 Ball Valve Technical Specifications

Monel 400 Chemical Composition

Monel 400 Mechanical Properties

Industries & Applications for Monel Ball Valves

Monel ball valves are specified wherever standard stainless steel valves corrode, fail, or require frequent replacement. Below are the primary industries we serve and the specific applications within each:

Why Monel Outperforms Stainless Steel in These Applications

In chloride-rich or acidic environments, standard 316L stainless steel is vulnerable to pitting corrosion and stress corrosion cracking. Monel 400’s high nickel content (≥ 63%) fundamentally alters the alloy’s electrochemical behaviour, making it passive even in dilute hydrochloric acid — an environment that would rapidly destroy SS316. For engineers specifying valves for seawater, brine, or HCl service, the total cost of ownership (TCO) over 10–15 years almost always favours Monel despite the higher upfront cost.

Pair your Monel ball valves with Kalpataru’s complete Monel piping range:

Manufacturer Quality Assurance at Kalpataru Piping Solution

• Raw material traceability from approved mills with EN10204 3.1 / 3.2 mill test certificates
• Hydrostatic shell and seat testing on 100% of production valves
• PMI (Positive Material Identification) testing using XRF equipment
• Dimensional inspection per ASME B16.34 / API 608
• Hardness testing per ASTM E18 (Rockwell) and ASTM E92 (Vickers)
• Visual inspection per MSS SP-55
• Radiographic (RT) and dye-penetrant (PT) testing on request
• Third-party inspection by TUV, Bureau Veritas, Lloyd’s Register, SGS, or DNV on request

Monel Ball Valve Price

The Monel ball valve price varies depending on the alloy grade, pressure class, end connection, body configuration, and order quantity. As a direct manufacturer and bulk stock holder, Kalpataru Piping Solution consistently offers better pricing than trading companies or distributors.

Indicative Monel Ball Valve Price List (Ex-Works, Mumbai)

Note: Prices are indicative and subject to change based on LME nickel rates, order quantity, and specifications. Contact our sales team for a firm quotation with MTR.

Factors Affecting Monel Ball Valve Price

• Alloy Grade: Monel K500 costs 20–35% more than Monel 400 due to the addition of aluminium and titanium for precipitation hardening.
• Pressure Class: Higher pressure ratings (6,000 PSI vs 3,000 PSI) require heavier wall sections and additional testing, increasing cost.
• Body Style: 3-piece bodies cost more than 1-piece equivalents; actuated versions add actuator and control costs.
• End Connections: Flanged ends are more expensive than threaded; butt-weld ends require additional machining.
• Certifications: NACE MR0175, API 607 fire-safe, or third-party inspection add 10–25% to base cost.
• Order Quantity: Factory-direct pricing offers volume discounts from 10 pieces upward.
• Nickel Market Rate: Monel is a nickel-intensive alloy (≥ 63% Ni); LME nickel prices directly influence raw material cost.

Monel 400 vs Monel K500 vs 316L Stainless Steel Ball Valve — Comparison

Monel 400 vs K500 — When to Choose Which

Choose Monel 400 when:

• The application demands corrosion resistance at moderate pressures (≤ 6,000 PSI)
• Budget is a primary consideration
• The valve will be used in seawater cooling, brine, or HCl service

Choose Monel K500 when:

• High mechanical strength is needed alongside corrosion resistance (e.g. subsea manifold isolation valves)
• Operating pressure exceeds 6,000 PSI
• Erosion from high-velocity flow is a concern alongside corrosion

Standards, Certifications & Equivalent Grades

Monel Grade Equivalent Standards

Equivalent Brands Stocked & Supplied

Kalpataru Piping Solution stocks and supplies Monel ball valves equivalent to the following internationally recognised brands: Swagelok · Parker A-lok · DK-LOK · Hamlet Letlok · Hoke · Oliver Valves · Duolok · Gyrolok · Tylok · Bilok · OS-LOK

Monel 400 Ball Valve Torque Guide

Indicative torque values can help with preliminary actuator selection for Monel 400 2-piece ball valves. Actual breakaway, running and end torque depends on valve design, seat material, pressure differential, temperature and service conditions.

Torque values are indicative only and are not a substitute for manufacturer-certified actuator sizing data. Actual torque varies with differential pressure, seat material, temperature, media and valve construction. Contact Kalpataru Piping Solutions for exact torque data and actuator selection.

Monel 400 Ball Valve Cv Values

Cv values are useful for preliminary flow calculations and valve sizing. The following indicative values apply to typical full-bore configurations; actual Cv depends on bore geometry and valve manufacturer.

Cv values are approximate and may vary according to valve bore, trim and body design. Contact Kalpataru Piping Solutions for the manufacturer’s Cv data sheet and flow-sizing information.

Fugitive Emissions

Monel 400 and Monel K500 ball valves can be supplied with low-emission packing systems and fugitive-emission testing to ISO 15848-1, where specified. Testing classification, packing arrangement and acceptance criteria depend on the valve configuration and service requirements. Third-party inspection or witness testing can be arranged on request.

This wording is safer than stating that every valve is Class BH / Tightness Class AH unless Kalpataru actually has certification for those specific valves.

NACE MR0175 / ISO 15156 Monel Ball Valves

Monel 400 (UNS N04400) and other nickel-copper alloys may be selected for sour-service applications subject to the requirements of NACE MR0175 / ISO 15156 and the actual operating environment. Compliance depends on material grade, product form, heat-treatment condition, hardness and other service-specific requirements.

For sour-service Monel ball valves, the material condition and applicable NACE requirements should be confirmed at the quotation stage. Kalpataru can provide material test reports and supporting documentation for specified NACE-compliant applications.

Monel Ball Valve Leak Testing

Monel 400 and Monel K500 ball valves can be supplied with pressure and seat-leakage testing in accordance with applicable valve testing requirements, including ISO 5208 and API 598, as specified by the purchaser. Soft-seated valves can be tested to the specified tightness requirements, while metal-seated valves require the applicable leakage acceptance criteria to be defined at the time of order.
