Nickel 200 Pipe Fittings Manufacturer, Supplier & Exporter in India

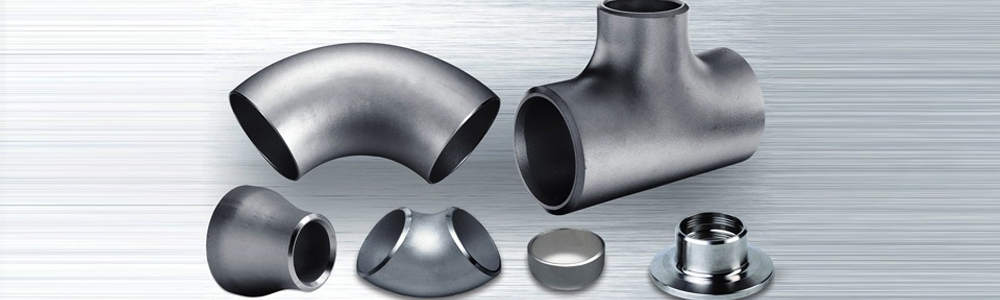

Kalpataru Piping Solution, based in Mumbai, is a leading manufacturer, stockist, and exporter of nickel 200 & 201 pipe fittings manufactured as per ASTM B366 / ASME SB366 to serve a vast range of industries that require the distinctive blend of strength, ductility, and resistance to corrosion offered by commercial nickel. Nickel 200 (UNS N02200) is recognized for its immunity tocaustic alkaliand for its exceptional thermal and electrical conductivity. Nickel 201(UNS N02201) has lower carbon content and is used at elevated temperatures where there is a possibility of carbon graphitisation and other higher temperature degradation. Our nickel pipe fitting range includes, but is not limited to, elbows, tees, reducers, stub ends, caps, and crosses. We provide these fittings from ½” to 24” NB in seamless, welded, and fabricated forms across schedules ranging from 5S to XXS.
If you require nickel alloy flanges and Nickel 200 tubes to match these nickel 200 and 201 fittings, we can supply the complete nickel alloy piping solution from a single reliable source. Every piece of fitting and accessory we produce is under an ISO 9001 approved quality management system and comes with the required material traceability, mill test certificates, and third party inspection to ascertain compliance. Kalpataru Piping Solution is your best bet if you’re involved in the manufacturing of equipment for caustic soda production, the food industry, the marine sector, or the aerospace industry. We ship quality nickel 200 and 201 fittings and other accessories to more than 80 countries worldwide. We ensure that we always cater to our customers with competitive pricing, fast deliveries, and a variety of options. Check our nickel pipe fittings range list and get a custom quote now!
Table of content
- What is Nickel 200 & 201 Pipe Fittings
- Nickel 200 Pipe Fittings Technical Specifications
- 200 / 201 Nickel Alloy Pipe Fittings Types
- Comparison: Nickel 200 vs Nickel 201
- Nickel 200 Pipe Fittings Applications / Industries
- Manufacturing Process & Quality Assurance
- Certifications & Standards
- FAQ’s About Nickel 200 Pipe Fittings
What is Nickel 200 & 201 Pipe Fittings
Explain in plain language what commercially pure nickel is, why Nickel 200’s low carbon-free structure resists caustic alkalis so effectively, and why Nickel 201’s reduced carbon content is preferred above roughly 315°C to avoid graphitisation. Compare briefly against Monel 400 pipe fittings for readers evaluating nickel-copper alternatives, and cross-link to our broader steel flanges and steel tubes category pages for readers comparing product types.
Nickel 200 Pipe Fittings Technical Specifications
| Parameter | Specification |
|---|---|
| Specification | ASTM B366 / ASME SB366 |
| Dimensional Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size Range | ½” NB to 24″ NB |
| Thickness | Sch 5S, 10S, 40S, 80S, 160S, XXS |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | 1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| End Finish | Beveled, Plain, Threaded (on request) |
200 / 201 Nickel Alloy Pipe Fittings Types
Chemical Composition (Nickel 200 / Nickel 201)
| Grade | Ni (min) | C (max) | Mn (max) | Cu (max) | S (max) | Si (max) | Fe (max) |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 99.0 | 0.15 | 0.35 | 0.25 | 0.01 | 0.35 | 0.40 |
| Nickel 201 | 99.0 | 0.02 | 0.35 | 0.25 | 0.01 | 0.35 | 0.40 |
Mechanical Properties (Nickel 200, Annealed / Cold Worked)
| Condition | Tensile Strength (min) | Yield Strength 0.2% (min) | Elongation (min) |
|---|---|---|---|
| Hot Worked / Annealed | 55 KSi (380 MPa) | 15 KSi (105 MPa) | 40% |
| Cold Worked | 75 KSi (515 MPa) | 50 KSi (345 MPa) | 15% |
Nickel 200 Pipe Fittings Equivalent International Grades
| Grade | UNS | Werkstoff Nr. | JIS | BS | GOST | AFNOR |
|---|---|---|---|---|---|---|
| Nickel 200 | N02200 | 2.4066 | NW 2200 | NA 11 | N-100M | N-100M |
Comparison: Nickel 200 vs Nickel 201
| Property | Nickel 200 (UNS N02200) | Nickel 201 (UNS N02201) |
|---|---|---|
| Carbon Content | 0.15% max | 0.02% max |
| Max Recommended Service Temp | Up to ~315°C (600°F) | Above 315°C (600°F) |
| Graphitisation Risk | Present above 315°C | Minimised due to low carbon |
| Strength (Annealed) | Slightly higher | Slightly lower |
| Typical Use | Caustic handling, general service | High-temperature caustic/chemical service |
| Relative Cost | Baseline | Comparable, slightly higher |
Dimensions Chart — 90° Elbows & Tees (Inches)
| Nom. Pipe Size | 90° LR Elbow (Center-to-Face) | 45° Elbow (Center-to-Face) | 180° Return (Center-to-Center) |
|---|---|---|---|
| 1/2 | 1 1/2 | 5/8 | 2 |
| 1 | 1 1/2 | 7/8 | 3 |
| 2 | 3 | 1 3/8 | 6 |
| 4 | 6 | 2 1/2 | 12 |
| 6 | 9 | 3 3/4 | 18 |
| 8 | 12 | 5 | 24 |
| 12 | 18 | 7 1/2 | 36 |
Nickel 200 Pipe Fittings Applications / Industries
- Caustic soda and alkali handling plants
- Food processing and synthetic fibre manufacturing
- Chemical processing and petrochemical equipment
- Valve manufacturing and heat exchangers
- Oil, gas, and hydrocarbon processing — often specified alongside our Monel 400/K500 pipe fittings and Inconel 600/601 pipe fittings for mixed nickel-alloy piping systems.
- Aerospace, defence, and rocket motor components
- Nuclear power projects and petrochemical plants
- For projects requiring higher-alloy performance, see our Incoloy 800 pipe fittings, Incoloy 825 pipe fittings, and Inconel 625 pipe fittings ranges.
Indicative Packing & Pricing Guide
| Fitting Type | Indicative Price (FOB) |
|---|---|
| Nickel 200 Elbow (90°/45°/180°) | USD 10 – 30 / Kg |
| Nickel 200 Reducer (Con./Ecc.) | USD 1 – 99 / Piece |
| Nickel 200 Tee (Equal/Unequal) | USD 100 – 1,500 / Piece |
| Nickel 200 Stub End | USD 100 – 1,500 / Piece |
| Nickel 200 End Cap | USD 100 – 1,500 / Piece |
| Nickel 200 Cross | USD 100 – 1,500 / Piece |
Key Export Destinations
| Region | Representative Countries |
|---|---|
| Middle East | UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Iran, Iraq |
| Asia Pacific | Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan |
| Europe | Germany, UK, Italy, Netherlands, Spain, France, Poland |
| Americas | USA, Canada, Brazil, Mexico, Colombia, Argentina, Peru |
| Africa | Egypt, Nigeria, South Africa, Algeria, Libya, Morocco |
Manufacturing Process & Quality Assurance
Briefly describe the forging/piercing/pressing/welding process, annealing (typically 704–871°C), and QA stages: raw material inspection, dimensional check, radiography/UT for welds, PMI and hydrostatic testing, and final visual inspection before packing. Mention ISO 9001:2015 certification and optional third-party inspection (SGS, BV, TUV) on customer request.
Certifications & Standards
- ISO 9001:2015 Certified Manufacturing Facility
- Manufactured as per ASTM B366 / ASME SB366 / ASME B16.9 / B16.11
- Dimensions per ASME B16.9, B16.28, MSS-SP-43, MSS-SP-95, BS 3799
- Mill Test Certificate as per EN 10204 3.1 / 3.2
- Third-party inspection available: SGS / BV / TUV / Lloyd’s
FAQ’s About Nickel 200 Pipe Fittings
Nickel 200 is the standard commercially pure nickel grade; Nickel 201 has a lower carbon content, which prevents graphite formation and embrittlement when used continuously above around 315°C.
Nickel 200 fittings are widely used in caustic soda production, food processing, chemical plants, aerospace components, and applications requiring high electrical or thermal conductivity.
We supply Nickel 200 and 201 fittings from ½” NB to 24″ NB, across Schedule 5S to XXS, in seamless, welded, and fabricated construction, including threaded and socket-weld types.
Yes, we manufacture custom bend radii, non-standard dimensions, and special end preparations based on customer-supplied drawings and specifications.
