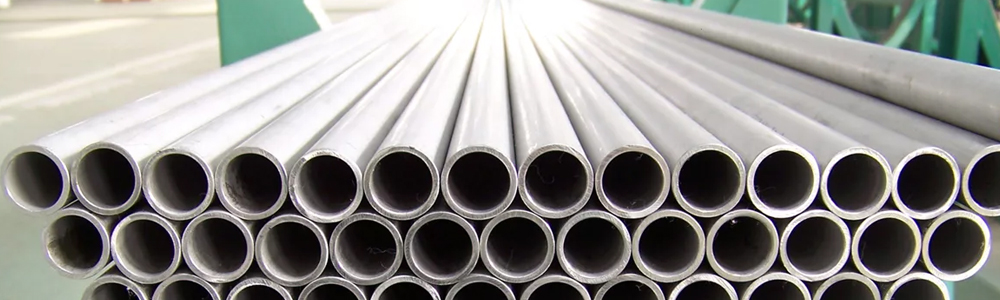

Monel 400 Tubes Stockist & Supplier in India
ASTM B165 Monel Alloy 400 Seamless Tube, ASTM B163 Monel 400 Tubes, ASTM B730 Monel 400 Welded Tubes, Nickel Alloy UNS N04400 Tubes, Monel Tubing Supplier in Mumbai, India
Kalpataru Piping Solution is a standard manufacturer and trader of Monel 400 Tubes, which is non-magnetic in an annealed form. Monel 400 Seamless Tubes cover nickel-copper alloy tubes offering excellent corrosion resistance in seawater, acids, and reducing environments that are quite appropriate for an elevated temperature or corrosive service, or both, for common applications. And the finished Monel 400 ERW Tubes shall be subjected to crossways the tension test, crossways the guided-bend weld test, and also hydrostatic test. Monel 400 Round Tubes and Square Tubes are available in both seamless and welded forms, offering consistent mechanical properties across cold-drawn, hot-rolled, and annealed conditions.
ASME SB730 Monel 400 ERW Tubes, DIN 2.4360 Tubing, SB165 Alloy 400 Seamless Pipes Stockists, ASME SB163 Monel 400 Condenser & Heat-Exchanger Tubes, Monel 400 Pipes, Monel Tubes Exporter in India.
Monel 400 Rectangular Tubes are being controlled for better strength at temperatures which would be in excess of about 800 Deg F. Monel 400 tubes can become slightly magnetic after cold working or welding. Post-weld annealing restores non-magnetic properties. Monel 400 Instrumentation Tubes are often done with a welding method that is being carried out without filler. Also, Monel 400 High Pressure Tubes, in terms of ferrous material conditions under ASME, lead to that filler metal being added. Monel UNS N04400 Tubes are formed by welding the seam and rolling the plate.
- Monel 400 Pipes and Tubes Specification
- Monel Alloy 400 Tube Equivalent Standard Grade
- Monel 400 Tubes Chemical Composition
- Monel 400 Tubing Mechanical Properties
- Monel 400 vs Monel K500 — Key Differences
- Monel 400 Seamless Tube – Thermal Properties
- Monel 400 Tube Size Chart
- ASTM B165 UNS N04400 Material Tensile Strength
- ASME SB 165 N04400 – Compression & Tensile Properties
- Monel 400 Welded Tube – Applications
- Monel 400 Tube Corrosion Resistance
- Monel Alloy 400 – Physical Properties
- Monel 400 Tubing – Pressure Rating
- UNS N04400 – Dimensional Tolerances
- Nickel Alloy 400 Annealed Tube – Weight Chart
- DIN 2.4360 Extruded Tube Dimensions
- Monel 400 Tube Packing & Delivery
- FAQ’s About Monel 400 Tubes
Monel 400 Pipes and Tubes Specification
Specifications | ASTM B163, B165, B725, B730 / ASME SB163, SB165, SB725, SB730 |
Size | 15 NB to 150 NB IN |
Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | Single Random, Double Random & Required Length |
Type | Cold Drawn/ Seamless / ERW / Welded / Capillary Tubes |
End | Plain End, Beveled End, Treaded |
Monel Alloy 400 Tube Equivalent Standard Grade
STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |
Monel 400 Pipe and Tube Types
Monel 400 Tubes Chemical Composition
Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
Monel 400 Tubing Mechanical Properties
Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 35,000 , MPa – 240 | Psi – 80,000 , MPa – 550 | 40 % |
Monel 400 vs Monel K500 — Key Differences
Monel K500 (UNS N05500) is an age-hardened variant of Monel 400 with approximately 3× higher yield strength, achieved by additions of aluminium and titanium. Use Monel 400 for corrosion resistance in seawater and chemical processing; use Monel K500 where high strength and wear resistance are required, such as pump shafts and fasteners.
Monel 400 Seamless Tube – Thermal Properties
Temp (°F) | Temp (°C) | Electrical Resistivity (ohm-circ mil/ft) | Thermal Conductivity (W/m·°C) | Expansion (µm/m·°C) | Specific Heat (J/kg·°C) |
-320 | -200 | 205 | — | — | — |
-300 | -180 | — | 16.5 | 11.1 | 223 |
-200 | -130 | — | 18.2 | 11.4 | 320 |
-100 | -70 | — | 19.8 | 12.1 | 378 |
70 | 21 | 307 | 22.0 | — | 427 |
200 | 100 | 322 | 24.0 | 14.2 | 445 |
400 | 200 | 337 | 26.9 | 15.2 | 459 |
600 | 300 | 346 | 30.1 | 15.7 | 470 |
800 | 400 | 355 | 33.4 | 16.1 | — |
1000 | 500 | 367 | 36.5 | 16.3 | — |
1200 | 600 | 379 | 39.4 | 16.6 | — |
1400 | 700 | 391 | 42.4 | 17.0 | — |
1600 | 800 | 403 | 45.5 | 17.4 | — |
1800 | 900 | 415 | 48.8 | 17.7 | — |
2000 | 1000 | 427 | — | 18.1 | — |
Monel 400 Tube Size Chart
Outer Diameter (OD) | Wall Thickness | Inner Diameter (ID) | Length |
0.8 mm | 0.1 mm | 0.6 mm | 1000 mm |
2.5 mm | 0.18 mm | 2.14 mm | 500 mm |
2.57 mm | 0.15 mm | 2.27 mm | 1000 mm |
1.27 mm | 0.25 mm | 0.77 mm | 100 mm |
0.5 mm | 0.146 mm | 0.208 mm | 1000 mm |
ASTM B165 UNS N04400 Material Tensile Strength
Condition | Tensile Strength (ksi) | Temp (°F) | Yield Strength (ksi) | Reduction (%) | Elongation (%) |
Forged | 92.00 | 70 | 67.00 | 72.7 | 31.0 |
Forged | 128.25 | -297 | 91.50 | 71.8 | 44.5 |
Forged | 142.00 | -423 | 96.40 | 61.0 | 38.5 |
Cold Drawn | 103.80 | Room | 93.70 | 71.0 | 19.0 |
Cold Drawn | 117.45 | -110 | 100.85 | 70.2 | 21.8 |
Cold Drawn | 103.40 | Room | 93.30 | 72.5 | 17.3 |
Annealed | 78.65 | 70 | 31.30 | 75.0 | 51.5 |
Annealed | 115.25 | -297 | 49.50 | 73.9 | 49.5 |
ASME SB 165 N04400 – Compression & Tensile Properties
Condition | Tensile Strength (ksi) | Yield Strength (0.01%) | Yield Strength (0.2%) | Elongation (%) | Compression Yield (0.01%) | Compression Yield (0.2%) |
Cold Drawn | 97 | 75 | 87 | 27.0 | 58 | 81 |
Hot Rolled | 84 | 37 | 41 | 39.5 | 33 | 38 |
Annealed | 78 | 28 | 33 | 44.0 | 19 | 28 |
Monel 400 Welded Tube – Applications
- Sour gas handling systems
- Aerospace components
- Chimney and exhaust linings
- Jet engine exhaust units
- Chemical processing equipment
- High-performance automotive exhaust systems
- Nuclear waste processing units
Monel 400 Tube Corrosion Resistance
Monel 400 offers excellent resistance to: seawater and marine atmospheres (no pitting at any temperature), hydrofluoric acid (up to 85% concentration at room temperature), sulfuric acid (dilute, non-oxidising), hydrochloric acid (dilute, non-aerated), alkalis and caustic solutions. It is NOT recommended for: nitric acid, oxidising acid mixtures, or moist chlorine gas.
Monel Alloy 400 – Physical Properties
Property | Imperial Units | Metric Units |
Density | 0.318 lb/in³ | 8.8 g/cm³ |
Monel 400 Tubing – Pressure Rating
Tube OD (in.) | 0.028″ | 0.035″ | 0.049″ | 0.065″ | 0.083″ | 0.095″ | 0.109″ | 0.120″ |
1/8 | — | 10100 | — | — | — | — | — | — |
1/4 | 3700 | 4800 | 7000 | 9500 | — | — | — | — |
5/16 | — | 3700 | 5400 | 7300 | — | — | — | — |
3/8 | — | 3100 | 4400 | 6100 | — | — | — | — |
1/2 | — | 2300 | 3200 | 4400 | — | — | — | — |
3/4 | — | — | 2200 | 3000 | 4000 | 4600 | — | — |
1 | — | — | — | 2200 | 2900 | 3400 | 3900 | 4300 |
UNS N04400 – Dimensional Tolerances
OD Range (in.) | Wall Thickness (in.) | Tolerance (± in.) |
1/2 – 1 | 0.0025 – 0.0065 | 0.0005 |
1/2 – 1 | 0.0065 – 0.0134 | 0.0010 |
1 – 1.5 | 0.0025 – 0.0065 | 0.0008 |
1 – 1.5 | 0.0065 – 0.0134 | 0.0010 |
1.5 – 2 | 0.0025 – 0.0049 | 0.0010 |
1.5 – 2 | 0.0049 – 0.0083 | 0.0011 |
1.5 – 2 | 0.0083 – 0.0148 | 0.0012 |
2 – 2.5 | 0.0032 – 0.0065 | 0.0012 |
2 – 2.5 | 0.0065 – 0.0109 | 0.0013 |
2.5 – 3.5 | 0.0032 – 0.0165 | 0.0014 |
2.5 – 3.5 | 0.0165 – 0.0220 | 0.0020 |
3.5 – 5 | 0.0083 – 0.0165 | 0.0020 |
3.5 – 5 | 0.0165 – 0.0220 | 0.0025 |
Nickel Alloy 400 Annealed Tube – Weight Chart
Size (mm) | Wall (mm) | Weight (kg/m) |
12.07 × 12.07 | 1.02 | 0.044 |
15 × 15 | 1.02 | 0.053 |
20 × 20 | 1.02 | 0.071 |
25 × 25 | 1.02 | 0.092 |
30 × 30 | 1.02 | 1.010 |
40 × 40 | 1.02 | 1.049 |
50 × 50 | 1.05 | 2.032 |
60 × 60 | 2.00 | 3.071 |
70 × 70 | 3.00 | 6.053 |
80 × 80 | 2.00 | 4.098 |
100 × 100 | 2.00 | 6.040 |
DIN 2.4360 Extruded Tube Dimensions
Gauge | OD Range (mm) | Regular Wall (mm) | Thin Wall (mm) | Extra Thin (mm) | Ultra Thin (mm) |
30 | 0.0304 – 0.0317 | 0.0064 – 0.0089 | — | — | — |
28 | 0.0355 – 0.0368 | 0.0076 – 0.0102 | — | — | — |
27 | 0.0406 – 0.0419 | 0.0089 – 0.0115 | 0.0064 – 0.0089 | — | — |
25 | 0.0508 – 0.0520 | 0.0115 – 0.0140 | 0.0089 – 0.0114 | — | — |
23 | 0.0635 – 0.0647 | 0.0140 – 0.0165 | 0.0089 – 0.0114 | — | 0.0051 – 0.0102 |
22 | 0.0711 – 0.0723 | 0.0140 – 0.0165 | 0.0096 – 0.0121 | 0.0077 – 0.0102 | 0.0051 – 0.0102 |
20 | 0.0901 – 0.0914 | 0.0108 – 0.0165 | 0.0108 – 0.0134 | — | — |
17 | 1.0460 – 1.0485 | 0.0177 – 0.0229 | 0.0115 – 0.0152 | 0.0083 – 0.0127 | 0.0057 – 0.0102 |
14 | 2.0082 – 2.0133 | 0.0216 – 0.0292 | 0.0165 – 0.0229 | 0.0114 – 0.0165 | 0.0076 – 0.0134 |
11 | 3.0023 – 3.0073 | 0.0293 – 0.0368 | 0.0216 – 0.0292 | — | — |
Monel 400 Tube Packing & Delivery
Tubes are packed in wooden crates or steel bundles with waterproof polythene inner lining. Each bundle is tagged with heat number, grade, size, and standard. Export packing available with fumigation certificate. Lead time: 2–7 business days for standard stock sizes; 3–5 weeks for non-stock or special dimensions.
FAQ’s About Monel 400 Tubes
Monel 400 seamless tubes are extruded from solid bar stock and contain no weld seam, making them suitable for high-pressure and critical service. Welded tubes (ERW/EFW) are formed from strip and are economical for lower-pressure or structural applications. Both conform to ASTM B165 / ASME SB165.
Monel 400 equivalent grades are UNS N04400, WNR 2.4360, AFNOR NU-30M, EN NiCu30Fe, JIS NW 4400, and BS NA 13.
Monel 400 tube price in India depends on size, wall thickness, and order quantity. Contact Kalpataru Piping Solution for the latest price list, including ASTM B165 seamless and ASTM B730 welded tube pricing.
Yes. Monel 400 exhibits exceptional resistance to seawater and brine at all temperatures, making it a standard choice for marine heat exchangers, desalination equipment, and offshore pipework.
Monel 400 instrumentation tubing is supplied to ASTM B165 (seamless) and ASME SB165 standards. Capillary and high-pressure variants are available in ODs from 0.5 mm upward.
Monel 400 retains good mechanical strength up to approximately 480 °C (900 °F). For service above 800 °F (427 °C), slight magnetic changes may occur due to precipitation reactions. Consult your engineer for high-temperature design limits.
