Brass Tube Fittings Manufacturer, Supplier & Stockist
Brass is known to be a very common copper-zinc alloy in which the elemental composition may be modified to meet particular performance requirements. The brass tube fittings produced at Kalpataru Piping Solution are produced under the close monitoring of the chemistry so as to attain the required strength, machinability, and corrosion resistance. These fittings, besides their natural attractive golden look, are not only appropriate in functioning piping systems but also those whose beauty is important.
We make our brass transmission fittings to meet the international standards of ASTM B16 and ASTM B453. Brass compression fittings that are produced as ASTM B16 are very strictly tested in terms of tensile strength, yield strength, hardness, temper and chemical composition in order to provide the same quality and reliability. In the meantime, brass flare fittings that are ready for ASTM B453 are subjected to extensive dimensional checks such as shape, diameter, length and straightness.
ASTM B453 brass ferrule and inverted flare fittings are also tested on elongation and mechanical integrity. They can be supplied in soft annealed (O60), quarter-hard (H01), or half-hard (H02) tempers, which is why they are good when it comes to the precision machining needs. Hydraulic fittings are typically cold-formed by flaring, swaging, knurling, and thread rolling, and some types of brass instrumentation fittings are made by containing controlled hot-working.
Kalpataru Piping Solution will provide reliable brass fitting that will have long-term performance in various industries.
- Material Grades of Brass Tube Fittings
- Specification of Brass Tube Fittings
- Brass Tube Fittings Types
- Red Brass C23000 Single Ferrule Fittings Mechanical Properties
- Brass C23000 Instrumentation Tube Fittings Chemical Composition
- C2600 Brass Alloy Double Ferrule Tube Fittings Equivalent Grades
- HS Code for Brass Compression Fittings
- ASTM B122 Brass Ferrule Tube Fittings Pressure Rating
- Brass Tube Fitting Sizes
- Dimensions of Brass Tube Fittings
- Other Types of Brass Alloy Tube Fittings
- Brass Tube Fittings Price
- Applications & Uses of Brass Tube Fittings
- People Ask About Nuts Manufacturer
Material Grades of Brass Tube Fittings
Specification of Brass Tube Fittings
Parameter | Details |
Standard | ASME B1.1 |
Material Specification | Straight Fittings & Tube Adapters: ASTM B62 / ASME SB62Elbows, Crosses & Tees: ASTM B122 / ASME SB122 |
Product Type | Brass Tube Fittings |
Pressure Rating | 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI, 400 Bar |
Pressure Category | Low Pressure & High Pressure Tube Fittings |
Thread Type | NPT (ASME B1.20.1, MIL-P-71058)ISO Parallel – BSPP (BS 2779, ISO 228, JIS B 0202)ISO Tapered – BSPT (BS 21, ISO 7, JIS B 0203)ISO / BSP (Gauge) (ISO 228, BS 2779)Unified (SAE) – ASME B1.1 |
Other Trade Names | Brass Instrumentation FittingsBrass IS-319 / BS-218 Pneumatic FittingsASTM B122 Brass Compression FittingsBrass BS-218 Push-To-Connect FittingsUNS C23000 Hydraulic FittingsBrass C23000 Hydraulic Hose FittingsC2600 Brass Alloy Compression Tube FittingsAlloy 230 Instrumentation Tube FittingsUNS C23000 Brass Double Ferrule FittingsBrass C2600 Double Ferrule Tube FittingsC2600 Brass Ferrule FittingsUNS C27200 Brass Twin Ferrule FittingsC27200 Brass Alloy JIC FittingsBrass UNS C36000 Flare Fittings |
Key Features | Easy to disconnect and retightenWide configuration optionsAvailable in various sizesBest suited for instrumentation, process & control systemsZero leakage under harsh working conditionsGaugeable bodiesExcellent gas-tight sealingFully interchangeable with SwagelokLeak-proof joints for high pressure, vacuum & vibration applications |
Testing & Certification | ECE R110, EC-79, NACE MR0175 / ISO 15156, NACE MR0103 |
Equivalent Brands Stocked | Swagelok, Parker, DK-LOK, Hamlet Let-Lok, DUOLOK, GYROLOK, TYLOK, BILOK |
Dispatch Port | Mumbai, India |

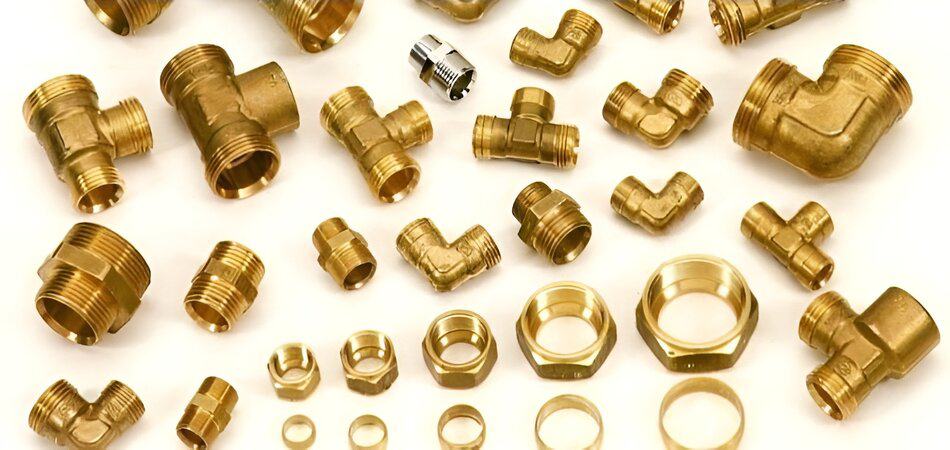

Brass Tube Fittings Types

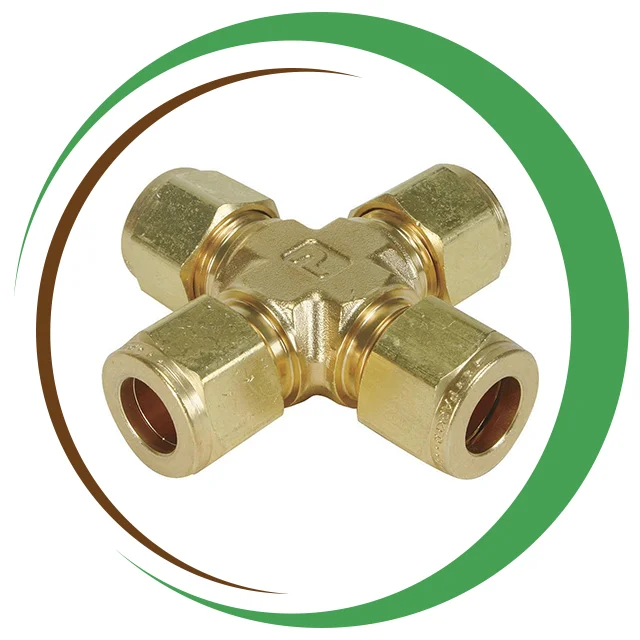

Brass Tube Fittings

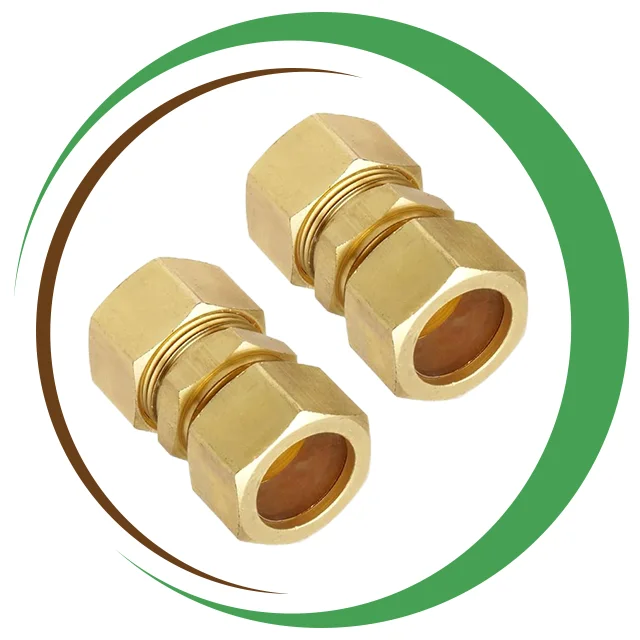

C23000 Brass Tube Union

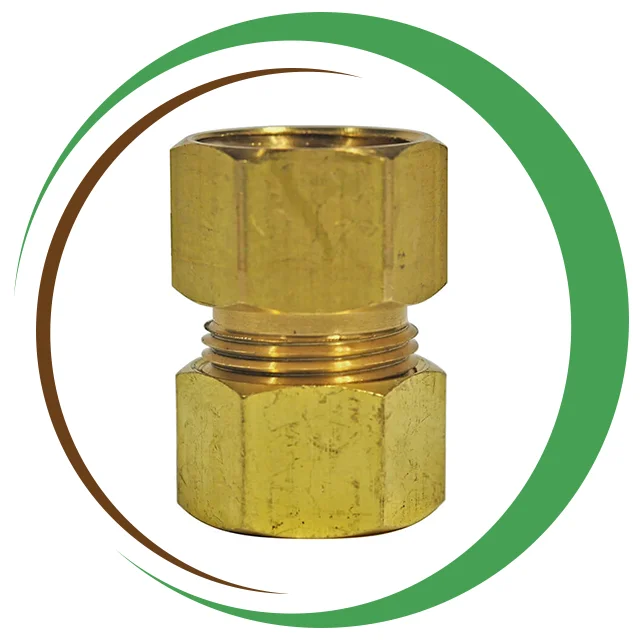

C36000 Brass Tube End Cap

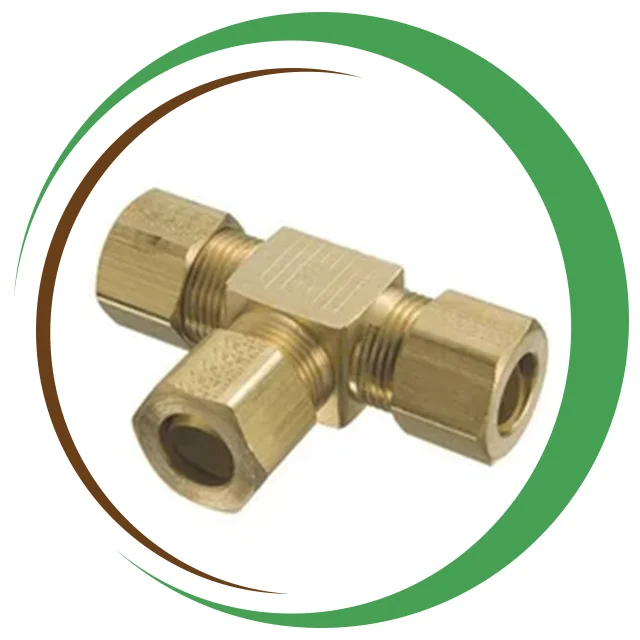

C36000 Brass Union Tee
Red Brass C23000 Single Ferrule Fittings Mechanical Properties
| Property | US Customary Units |
| Melting Point (Liquidus) | 1650 °F |
| Melting Point (Solidus) | 1630 °F |
| Density | 0.307 lb/in³ at 68 °F |
| Electrical Resistivity | 39.90 ohms·cmil/ft at 68 °F |
| Electrical Conductivity | 26 % IACS at 68 °F |
| Thermal Conductivity | 67 Btu·ft/(hr·ft²·°F) at 68 °F |
| Modulus of Elasticity (Tension) | 14,000 ksi |
Brass C23000 Instrumentation Tube Fittings Chemical Composition
| Element | Cu (%) | Fe (%) | Pb (%) | Zn (%) |
| Min / Max | 60.0 – 63.0 | 0.35 | 2.5 – 3.0 | Remainder |
| Nominal | 61.5 | – | 2.7 | 35.4 |
C2600 Brass Alloy Double Ferrule Tube Fittings Equivalent Grades
| Standard | Werkstoff Nr. | UNS |
| Brass | 934 | C36000 |
HS Code for Brass Compression Fittings
| Country | HS Code |
| Spain | 74121000 |
| China | 74122019 |
| Switzerland | 74122090 |
| United States (USA) | 74122019 |
| Sri Lanka | 84818020 |
| Saudi Arabia | 84819090 |
| Nigeria | 84818020 |
| Ghana (West Africa) | 84818020 |
| United Arab Emirates | 84818020 |
| Tanzania | 84818020 |
| Kenya | 84818049 |
ASTM B122 Brass Ferrule Tube Fittings Pressure Rating
| OD Size | Pressure (PSI) | Pressure (Bar) |
| 1/8” | 3045 | 210 |
| 3/16” | 3045 | 210 |
| 1/4” | 3045 | 210 |
| 5/16” | 3045 | 210 |
| 3/8” | 2030 | 140 |
| 1/2” | 1522 | 105 |
| 5/8” | 1522 | 105 |
| 3/4” | 1015 | 70 |
| 1” | 1015 | 70 |
Brass Tube Fitting sizes
Brass Seamless Tube Fittings| Product | Brass Seamless Tube Fittings |
| Size Range | 1/8″ to 2″ |
| Pressure Rating | 3000 PSI – 10000 PSI |
| Thread Type | NPT, BSPT, BSPP |
| Product | Brass IS-319 / BS-218 Welded Tube Fittings & Tube Adapters |
| Size Range | 24″ to 96″ or as per custom requirement |
| Pressure Rating | 3000 PSI – 10000 PSI |
| Thread Type | NPT, BSPT, BSPP |
Brass Tube Fitting sizes
Brass Seamless Tube Fittings
- Size: 1/8″ to 2″
- Pressure Rating: 3000psi -10000psi
- Threads :NPT , BSPT, BSPP
Brass IS-319 / BS – 218 Welded Tube Fittings & Tube Adapters
- Size: 24″ to 96″ or custom
- Pressure Rating: 3000psi -10000psi
- Threads :NPT , BSPT, BSPP
Dimensions of Brass Tube Fittings
| OD (Fraction Inch) | OD Actual (Inches) | Thread Designation – Nominal Size (Inches) | Threads per Inch – NPT | Threads per Inch – BSP |
| 5/16 | 0.3125 | 1/16 | 27 | 28 |
| 13/32 | 0.405 | 1/8 | 27 | 28 |
| 35/64 | 0.540 | 1/4 | 18 | 19 |
| 43/64 | 0.675 | 3/8 | 18 | 19 |
| 27/32 | 0.840 | 1/2 | 14 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 | 11 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 | 11 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 | 11 |
| 2-3/8 | 2.375 | 2 | 8 | 11 |
| 2-7/8 | 2.875 | 2-1/2 | 8 | 11 |
| 3-1/2 | 3.500 | 3 | 8 | 11 |
| 4 | 4.000 | 3-1/2 | 8 | 11 |
| 4-1/2 | 4.500 | 4 | 8 | 11 |
| 5-5/8 | 5.563 | 5 | 8 | 11 |
| 6-5/8 | 6.625 | 6 | 8 | 11 |
Other Types of Brass Alloy Tube Fittings
| Brass Tube Fittings | Brass Tube Fittings |
|---|---|
| Brass Male Connector | Brass Female Connector |
| Brass Alloy Equal Union | Brass Reducing Union |
| Brass Bulkhead Male Connector | Brass Alloy Female Elbow |
| Brass Alloy Industrial Tube Fittings | Brass Male Branch Tee |
| Brass Male Elbow | Brass Alloy Back Ferrule |
| Brass Union Tee | Brass Butt Welding Pipe Connector |
| Brass Front Ferrule | Brass Female Tube Adapter |
| Brass Alloy Plug | Brass Alloy Reducing Hex Coupling |
| Brass Socket Welding Pipe Connector | Brass Reducing Bushing |
| Brass Male Tube Adapter | Brass Reducing Street Elbow |
| Brass Reducing Hex Nipple | Brass Alloy Branch Tee |
| Brass Instrumentation Fittings | — |
Brass Tube Fittings Price
The Brass Tube Fittings are offered at competitive and economical prices. To receive the latest pricing, stock availability, and bulk order discounts, please share your requirements through the “Request a Quote” option.
Kalpataru Piping Solution maintains ready stock of a wide range of brass tube fittings, including compression fittings, double ferrule fittings, instrumentation fittings, hydraulic fittings, and pneumatic fittings. Pricing may vary depending on size, pressure rating, material grade, and order quantity to ensure the best value for every customer.
Get in touch with us today to obtain the current brass tube fittings price list, customization options, and ready-stock details for your application.
