Monel Pipe Fittings Manufacturer & Supplier in India
Kalpataru Piping Solution is a reliable manufacturer and supplier of piping products of good quality and provides a variety of solutions of stainless steel, carbon steel and Monel alloy piping products to the worldwide engineering industries. Monel pipes and fittings are among our targeted products, which are very popular because of their good mechanical strength, endurance and resistance to corrosion in harsh environments. Our quality grades, Monel Alloy 400 and Monel K500, are provided at the same grade, and there is consistency in the performance of the material over the most important industrial processes.

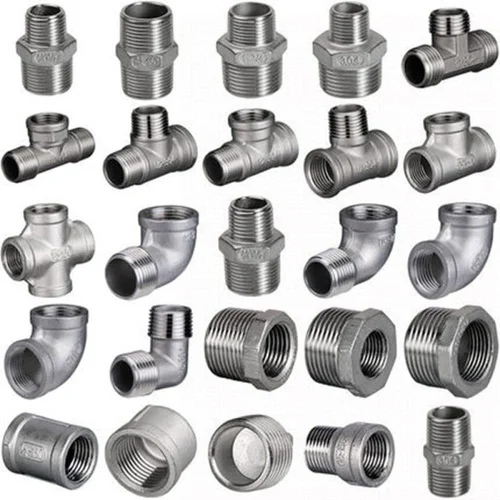

We have huge stocks that enable us to fulfil bulk and urgent needs without any problem. Monel pipe fittings are significant to piping because they facilitate easy directional flow and control flow and provide tight pipe joints. Such fittings include elbows, tees, reducers, unions, couplings, caps and crosses, which are meant to join pipes of different or equal diameter without any leakage. Some fittings are also convenient to reconstruct broken pipelines, which will not interrupt the transfer of fluids.
Monel is a nickel-copper alloy, which is strong at high temperatures and seawater resistant; thus, it is used in marine, oil and gas, power generation, heat exchangers, condensers, chemical processing, and pulp and paper industries. Although it works well in reducing and slightly oxidising conditions, it cannot be used in highly acidic conditions.
To ensure the high-quality standards, Kalpataru Piping Solution undertakes extensive testing, such as the chemical test, hardness test, flattening test, micro- and macro-test, pitting resistance test, and intergranular corrosion test. Such tests guarantee dependability, security and durability of all our products.
Monel Pipe Fittings Material Grades
Specification of Monel Pipe Fittings
Parameter | Details |
Applicable Material Standard | ASTM B366 / ASME SB366 |
Dimensional Standards | ASME/ANSI B16.9, ASME B16.28, MSS SP-43, BS 4504, BS 1560, BS 10 |
Fitting Size (Seamless) | 1/2″ to 10″ |
Fitting Size (Welded) | 1/2″ to 48″ |
Wall Thickness Options | SCH 10, SCH 20, SCH 30, STD, SCH 40, SCH 60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS (NACE MR 01-75 compliant) |
Nominal Diameter Range | DN 15 to DN 1200 |
Bend Radius Availability | 1D, 2D, 3D, 5D, 6D, 8D, 10D or custom radius as per MSS SP-43 |
NB Size Range | ½″ NB to 24″ NB in SCH 10s, 40s, 80s, 160s, XXS (DN 6 to DN 100) |
Elbow Specifications | Angles: 22.5°, 30°, 45°, 90°, 180°; Radius: 1D to 40D |
Manufacturing Standards | ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75, DIN 2605, JIS B2311/2312/2313, BS, GB, ISO |
End Connection Type | Butt Weld |
Production Methods | Forged, Cast, Hot Push, Pressed |
Major Application Industries | Bitumen upgrading units, heavy crude refineries, petrochemical processing, acid handling systems, nuclear power plants (seamless preferred) |
Quality & Test Certification | EN 10204 3.1, raw material test certificate, 100% radiography report, third-party inspection |
Manufactured Components | 90° & 45° Elbows, Tees, Crosses, Reducers, Pipe Caps, Stub Ends, Pipe Bends |
Types of Monel Pipe Fittings
Chemical Composition of Alloy 400 & K500 Elbow
Grade | Nickel (Ni) | Manganese (Mn) | Carbon (C) | Silicon (Si) | Copper (Cu) | Sulfur (S) | Iron (Fe) |
Monel 400 | Min 63.00% | Max 2.00% | Max 0.30% | Max 0.50% | 28.00–34.00% | Max 0.024% | Max 2.50% |
Monel K500 | Min 63.00% | Max 1.50% | Max 0.25% | Max 0.50% | 27.00–33.00% | Max 0.010% | 0.50–2.00% |
Mechanical Properties of Monel Pipe Fittings
Grade | Melting Point | Density | Tensile Strength | Elongation | Yield Strength (0.2% Offset) |
Monel 400 | 1350°C (2460°F) | 8.8 g/cm³ | 80,000 psi / 550 MPa | 40% | 35,000 psi / 240 MPa |
Monel K500 | 1350°C (2460°F) | 8.44 g/cm³ | 160,000 psi / 1100 MPa | 20% | 115,000 psi / 790 MPa |
Nickel Alloy 400 Equal Tee Equivalent Grades
Grade | UNS | EN | Werkstoff Nr. | JIS | GOST | BS | AFNOR |
Monel 400 | N04400 | NiCu30Fe | 2.4360 | NW 4400 | МНЖМц 28-2.5-1.5 | NA 13 | NU-30M |
Monel K500 | N05500 | – | 2.4375 | – | – | – | – |
Nickel Alloy 400 Buttweld Tee Dimensional Tolerances
Nominal Pipe Size (NPS) | Reducers – Overall Length (H) | All Fittings – ID at End | Elbows & Tees – Centre to End (A, B, C, M) | All Fittings – OD at Bevel | End Alignment (U) | 180° Return Bends – Centre to Centre (O) | Caps – Overall Length (E) |
½ to 2½ | ±0.006 / -0.003 | ±0.003 | ±0.006 | ±0.006 | ±0.003 | 0.025 | 0.012 |
3 to 3½ | ±0.006 | ±0.006 | ±0.006 | ±0.006 | ±0.003 | 0.025 | 0.012 |
4 | ±0.006 | ±0.006 | ±0.006 | ±0.006 | ±0.003 | 0.025 | 0.012 |
5 to 8 | ±0.006 / -0.006 | ±0.006 | ±0.006 | ±0.009 | ±0.003 | 0.025 | 0.025 |
10 to 18 | ±0.009 / -0.012 | ±0.012 | ±0.009 | ±0.016 | ±0.006 | 0.038 | 0.025 |
20 to 24 | ±0.009 / -0.019 | ±0.019 | ±0.009 | ±0.025 | ±0.006 | 0.038 | 0.025 |
26 to 30 | ±0.019 / -0.019 | ±0.019 | ±0.012 | ±0.025 | — | — | 0.038 |
32 to 48 | ±0.019 / -0.019 | ±0.019 | ±0.019 | ±0.025 | — | — | — |
ASTM B366 Monel Elbow Dimensions (Long Radius & 3D)
| Outside Diameter (mm) | NPS | 45° Elbow – 3D (B) | 45° Elbow – Long Radius (B) | 90° Elbow – Long Radius (A) | 90° Elbow – 3D (A) |
| 21.03 | 1/2 | – | 16 | 38 | – |
| 26.07 | 3/4 | 24 | 19 | 38 | 57 |
| 33.04 | 1 | 31 | 22 | 38 | 76 |
| 42.02 | 1¼ | 39 | 25 | 48 | 95 |
| 48.03 | 1½ | 47 | 29 | 57 | 114 |
| 60.03 | 2 | 63 | 35 | 76 | 152 |
| 73.00 | 2½ | 79 | 44 | 95 | 190 |
| 88.09 | 3 | 95 | 51 | 114 | 229 |
| 101.06 | 3½ | 111 | 57 | 133 | 267 |
| 114.03 | 4 | 127 | 64 | 152 | 305 |
| 141.03 | 5 | 157 | 79 | 190 | 381 |
| 168.03 | 6 | 189 | 95 | 229 | 457 |
| 219.01 | 8 | 252 | 127 | 305 | 610 |
| 273.00 | 10 | 316 | 159 | 381 | 762 |
| 323.08 | 12 | 378 | 190 | 457 | 914 |
| 355.06 | 14 | 441 | 222 | 533 | 1067 |
| 406.04 | 16 | 505 | 254 | 610 | 1219 |
Outside Diameter from NPS 18 to NPS 48
Outside Diameter (mm) | NPS | 45° Elbow – 3D (B) | 45° Elbow – Long Radius (B) | 90° Elbow – Long Radius (A) | 90° Elbow – 3D (A) |
457 | 18 | 568 | 286 | 686 | 1372 |
508 | 20 | 632 | 318 | 762 | 1524 |
559 | 22 | 694 | 343 | 838 | 1676 |
610 | 24 | 757 | 381 | 914 | 1829 |
660 | 26 | 821 | 406 | 991 | 1981 |
711 | 28 | 883 | 438 | 1067 | 2134 |
762 | 30 | 946 | 470 | 1143 | 2286 |
813 | 32 | – | 502 | 1219 | 2438 |
864 | 34 | 1073 | 533 | 1295 | 2591 |
914 | 36 | 1135 | 565 | 1372 | 2743 |
965 | 38 | 1200 | 600 | 1448 | 2896 |
1016 | 40 | 1264 | 632 | 1524 | 3048 |
1067 | 42 | 1326 | 660 | 1600 | 3200 |
1118 | 44 | 1389 | 695 | 1676 | 3353 |
1168 | 46 | 1453 | 727 | 1753 | 3505 |
1219 | 48 | 1516 | 759 | 1829 | 3658 |
Applications of Monel Pipe Fittings
- Marine and Offshore Engineering : Monel elbows are extensively used in marine piping systems due to their excellent resistance to seawater, salt spray, and marine atmospheres. They ensure long service life in offshore platforms and shipbuilding applications.
- Oil and Gas Industry : These elbows are widely used in upstream, midstream, and downstream oil and gas operations for handling hydrocarbons, sour gas, and high-pressure fluids under corrosive conditions.
- Chemical Processing Plants : ASTM B366 Monel elbows perform reliably in chemical processing environments where resistance to alkalis, solvents, and reducing acids is required.
- Power Generation Facilities : Monel elbows are suitable for conventional and nuclear power plants, especially in heat exchangers, condensers, and high-temperature piping systems.
- Heat Exchangers and Condensers : Due to their high thermal stability and corrosion resistance, Monel elbows are commonly used in heat transfer equipment exposed to aggressive fluids and elevated temperatures.
- Desalination and Water Treatment Plants : Their resistance to saline and brackish water makes Monel elbows ideal for desalination units and water treatment piping systems.
- Pulp and Paper Industry : Monel fittings are used in pulp and paper plants for chemical handling and high-temperature processing lines.
- Specialty Industrial Applications : These elbows are also employed in aerospace, defense, and other specialized industrial systems where strength, reliability, and corrosion resistance are critical.
People Ask About Monel Pipe Fittings
ASTM B366 Monel elbows are butt weld pipe fittings manufactured from Monel alloys, primarily Monel 400 and Monel K500. They are designed for high-strength and corrosion-resistant piping systems.
The most widely used grades are Monel 400 (UNS N04400) and Monel K500 (UNS N05500), selected based on strength and corrosion resistance requirements.
Yes, Monel elbows offer excellent resistance to seawater and salt-laden environments, making them ideal for marine and offshore applications.
They are manufactured as per ASTM B366 and dimensional standards such as ASME B16.9 and ASME B16.28.
Monel elbows are available from ½″ NB to 48″ NB, in long radius, short radius, and 3D configurations.
