Hastelloy Tubes Manufacturer, Supplier & Stockist
Kalpaturu Piping Solution company is a reputed manufacturer and supplier of high quality Hastelloy Tubes in India. High-performance nickel-based superalloy, Hastelloy, is a compound that includes molybdenum and chromium, which provides excellent resistance to oxidation and corrosion, as well as hardness and strength. Our tubes come in different industrial sizes, ranging from 3.35 mm OD to 101.6 mm OD.
We offer Hastelloy C276 Tubes & Pipe and Hastelloy welded tubes. Seamless tubes are made without joints to guarantee homogenous tensile strength of at least 690 Mpa and yield strength of 283 Mpa and up to 40 percent elongation. Welded tubes are made by welding sheets or coils and are used in high- and low-temperature uses. The tubes suit very well in heat exchangers, condensers, pressure vessels and piping systems.
We have Hastelloy Tubing, 1/16, 1/8, 1/4 and 3/8 in any schedule, thickness and length (up to 6 meters). The tubes are very ductile, machinable, cleanable and maintainable and have prolonged durability.
Kalpataru Piping Solution makes sure that all its products are in line with the international and national standards. Our customised shapes, sizes, and end finishes are also provided, such as plain, bevelled, and threaded tubes. The Hastelloy Instrument Tubing is ideal to use in ventilation and flow monitoring systems in industries.
Get in touch with us today and discuss our Hastelloy tubing products and have professional help on your individual industrial needs.
Monel Pipe Fittings Material Grades
Hastelloy Tube Specification
Parameter | Details |
Standard | ASTM, AISI, GB, JIS, or as per customer’s request |
Welding Line Type | ERW (Electrical Resistance Welded) |
Shape | Round, Square, Rectangular |
Applications | Decorations, Construction, Food Industry, etc. |
Certification | ISO, SGS |
Origin | West Europe, Japan, India, USA, Korea, Europe |
Round Tube OD | 16–119 mm (custom sizes available) |
Outer Diameter (Overall Range) | 6.35–219 mm |
Square Pipe Sizes (mm) | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 |
Rectangular Pipe Sizes (mm) | 10×30, 10×40, 10×50, 20×10, 23×11, 24×12, 25×13, 28×25, 28×13, 29×14, 30×15, 30×20, 30×22, 34×22, 36×23, 50×25, 60×30, 75×45, 95×45 |
Round Pipe Sizes (mm) | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 |
Thickness Range | 0.25–3.0 mm |
Exact Thickness Available (mm) | 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 |
Standard Length | 6 m |
Custom Length | As per customer’s requirement |
Tolerance – Outer Diameter | ±0.2 mm |
Tolerance – Thickness | ±0.02 mm / ±0.05 mm |
Tolerance – Length | ±0.5 mm |
Pipe Ends | Plain End, Bevelled End, or as required |
Surface Finish | Sanded, Gloss #400, Mirror #600–#1000, Brushed, Wood Grain, Embossed, Threaded |
Manufacturing Process | Cold Drawn, Annealed with Nitrogen Protection, Ultrasonic Tested, Automatic Shaping, Polished |
Testing Methods | Direct Reading Spectrograph, Hydrostatic Test, X-Ray Detection, Ultrasonic Flaw Detection, Magnetic Particle Test |
Equipment Used | Press Machine, Bending Machine, Pushing Machine, Electric Bevelling Machine, Sand Blasting Machine |
Sample Policy | Free sample available (freight to be paid by buyer) |
Test Certificates | EN 10204 3.1B, Raw Material Certificate, 100% Radiography Report, Third Party Inspection |
Types of Hastelloy Tubes

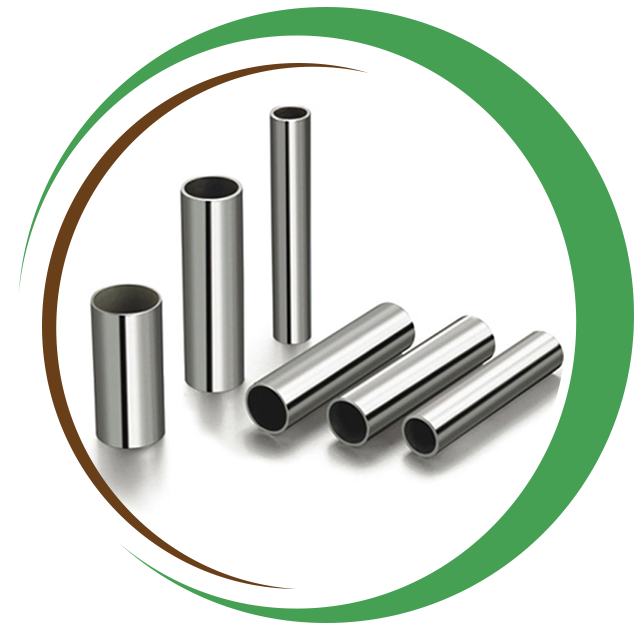

Hastelloy Gas Tube

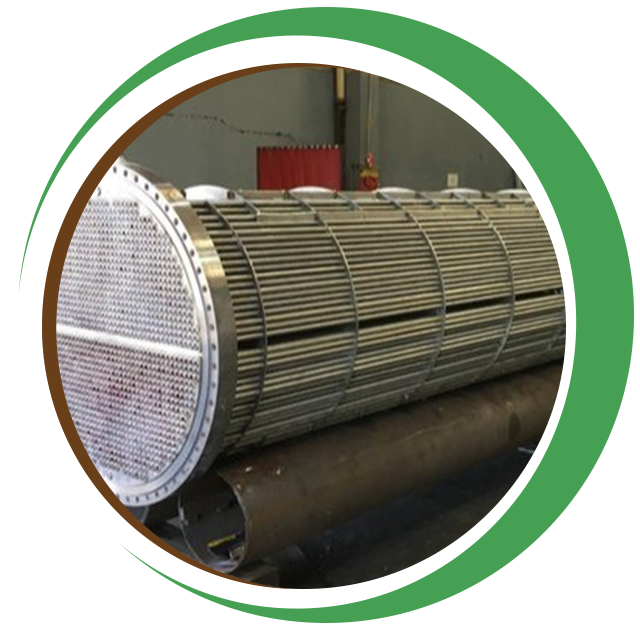

Hastelloy Heat Exchanger Tubes

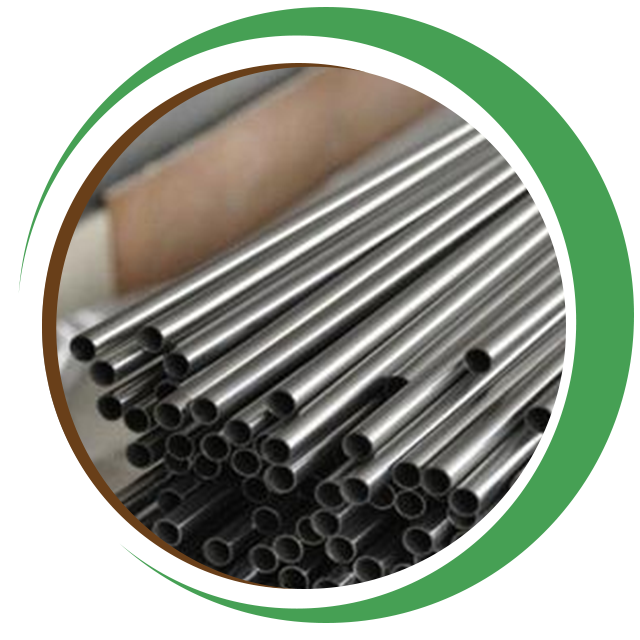

Hastelloy Instrumentation Capillary Tube

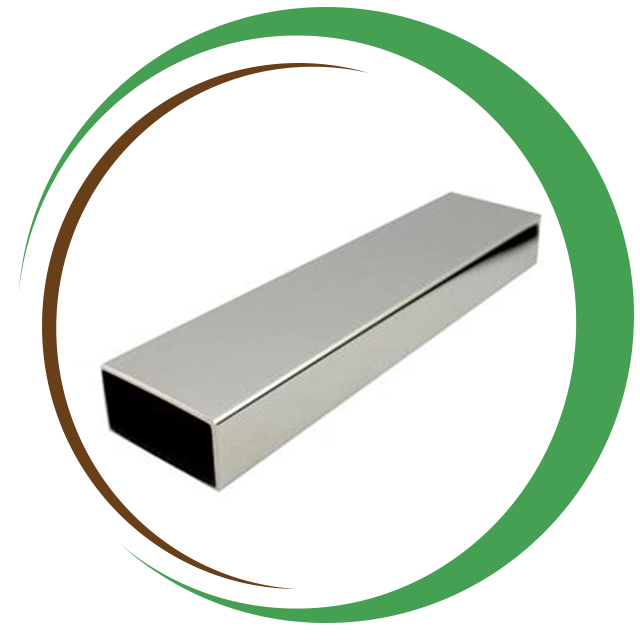

Hastelloy Rectangle Tube

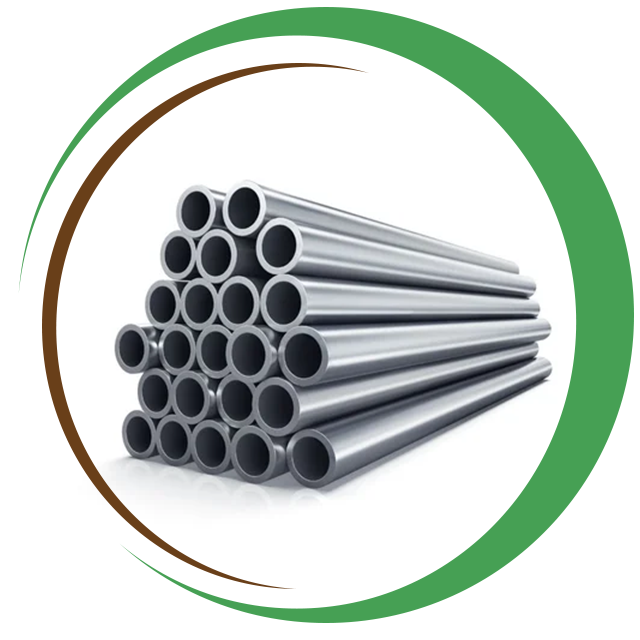

Hastelloy Seamless Tubing

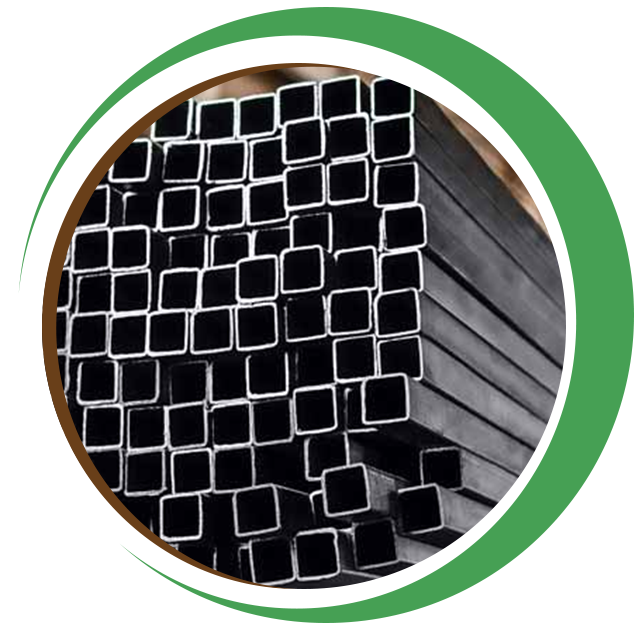

Hastelloy Square Tube

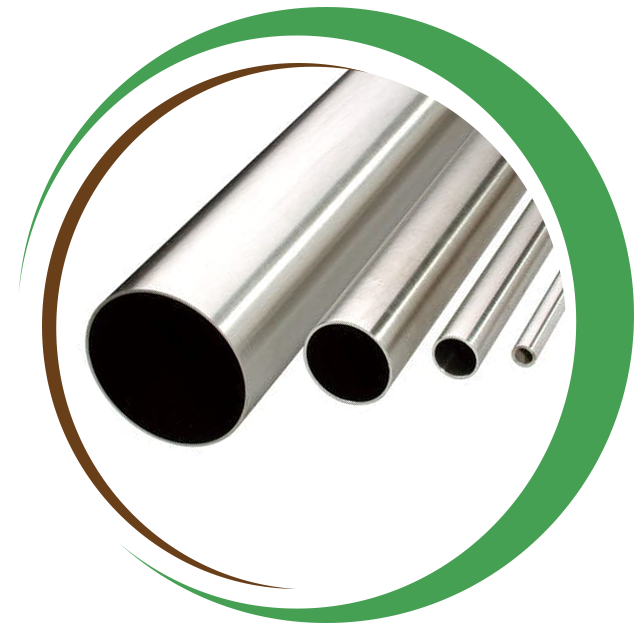

Hastelloy Thin Wall Tube

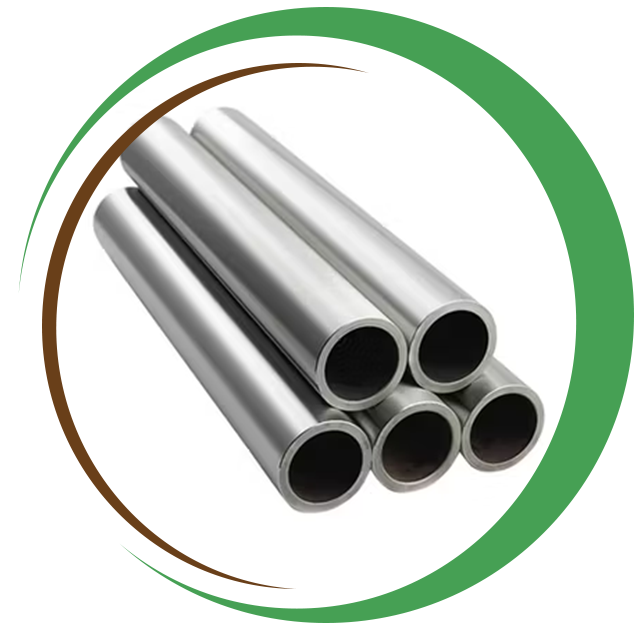

Hastelloy Tubing

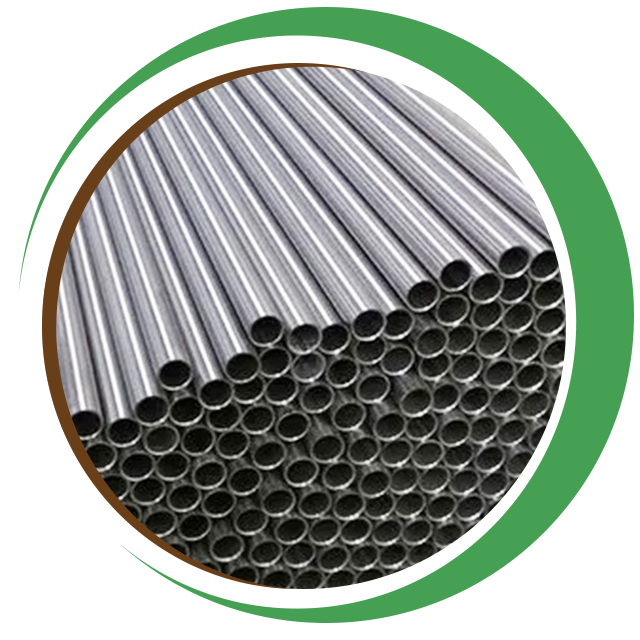

ASTM B619 Hastelloy Coiled Tubing

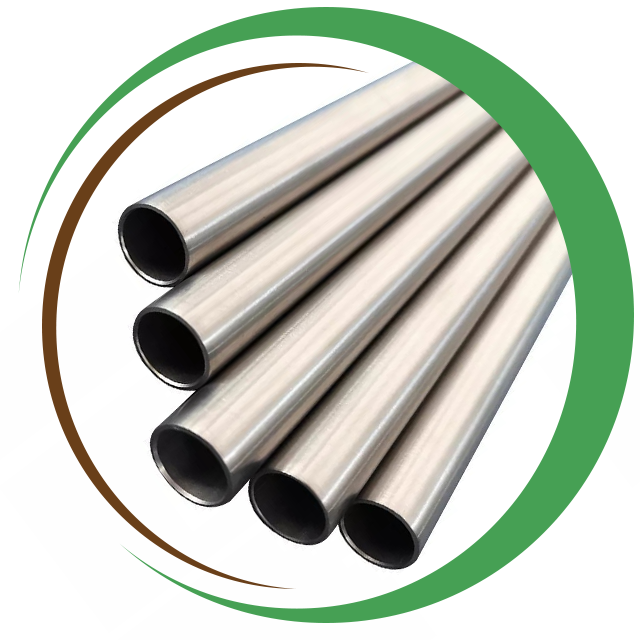

ASTM B622 Hastelloy Gas Tube

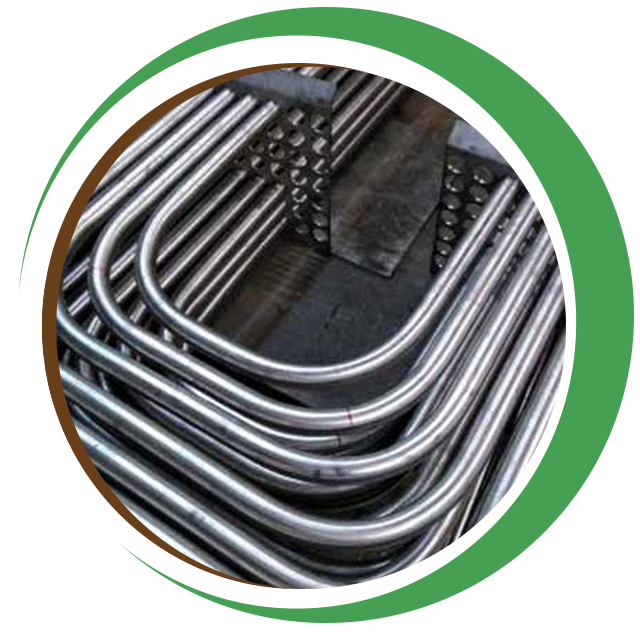

Hastelloy U Shaped Tubing

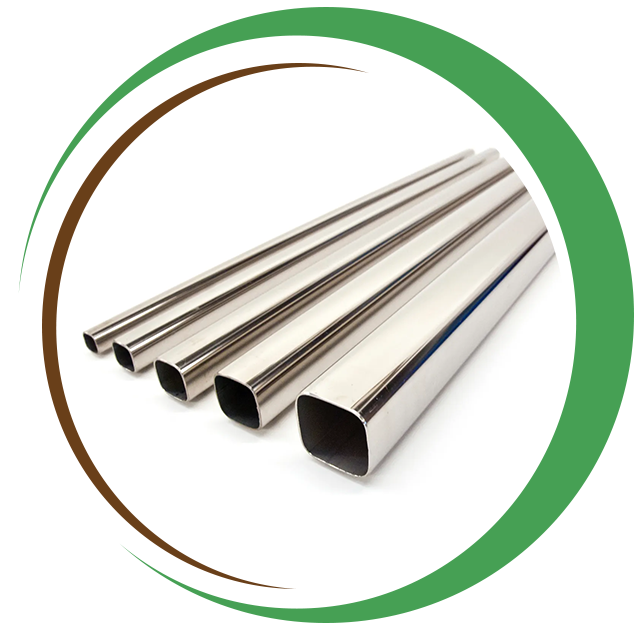

Hastelloy Alloy Square Tube (Radius Corners)

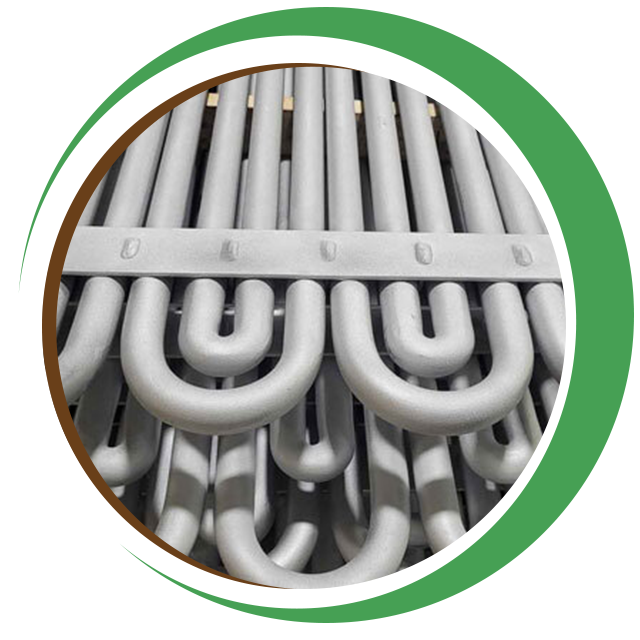

Hastelloy Boiler Tube

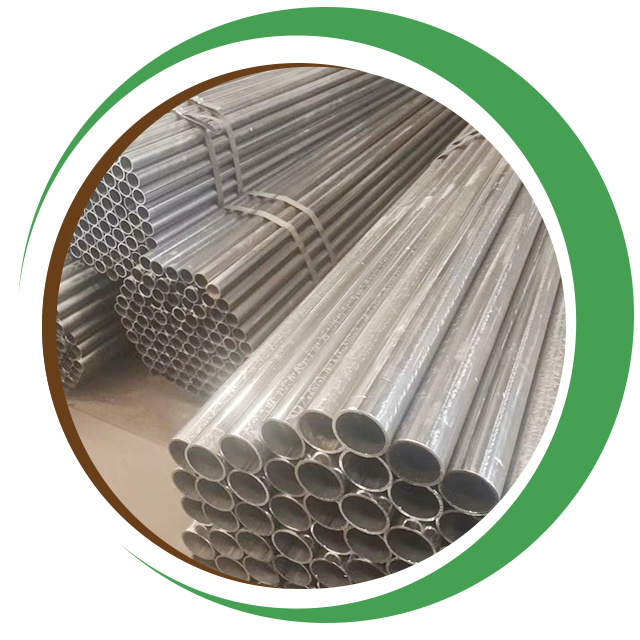

Hastelloy Bright Annealed Welded Tubing

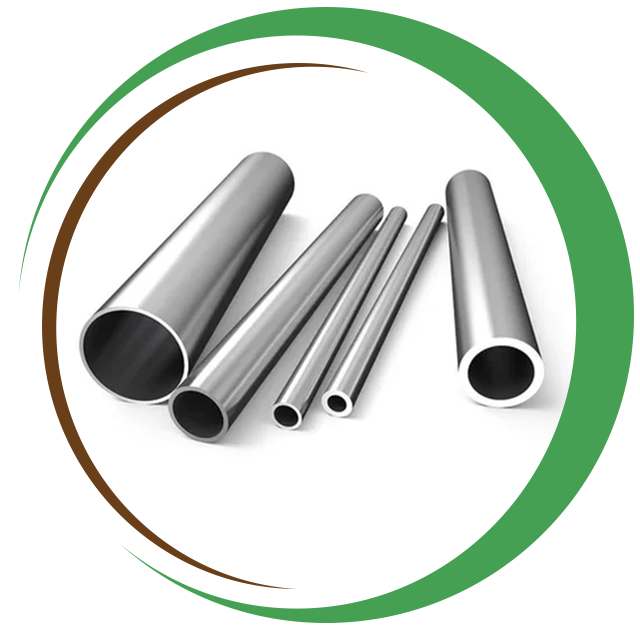

Hastelloy Furnace Tube
Hastelloy Tube Size Range
Type | Outer Diameter (OD) | Wall Thickness | Length |
NB Sizes (In Stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Up to 6 Meters |
Seamless (Custom Sizes) | 5.0 mm ~ 203.2 mm | As per requirement | Up to 6 Meters |
Welded (Stock + Custom) | 5.0 mm ~ 1219.2 mm | 1.0 ~ 15.0 mm | Up to 6 Meters |
ASME SB 619 Hastelloy Tube Standards & Composition
Standard | Hastelloy C276 |
UNS | N10276 |
Werkstoff Nr. | 2.4819 |
EN | NiMo16Cr15W |
BS | – |
GOST | ХН65МВУ |
OR | ЭП760 |
JIS | NW 0276 |
Hastelloy Seamless Tube Physical Properties
Property | Value |
Density (g/cm³) | 8.89 |
Density (lb/in³) | 0.321 |
Melting Point (°C) | 1325 – 1370 |
Melting Point (°F) | 2415 – 2500 |
Hastelloy Seamless Tube Chemical Composition (C276)
Element | Composition |
Ni | 50.99 min* |
Cr | 14.50 – 16.50 |
Mo | 15.00 – 17.00 |
Fe | 4.00 – 7.00 |
W | 3.00 – 4.50 |
C | 0.010 max |
Si | 0.08 max |
Co | 2.50 max |
Mn | 1.00 max |
V | 0.35 max |
P | 0.04 max |
S | 0.03 max |
Hastelloy Seamless Tube Mechanical Properties
Condition | Tensile Strength (ksi / Mpa) | Yield Strength (ksi / Mpa) | Elongation (%) |
Annealed | 100 (690) | 41 (283) | 40 |
Standard of Hastelloy Cold Drawn Tube
Country | Standard | Full Form / Description |
USA | AISI | American Iron and Steel Institute |
USA | ASTM | American Society of Mechanical Engineers |
GER | DIN | Deutsches Institut für Normung e.V. |
JP | JIS | Japanese Industrial Standards |
USA | UNS | Unified Numbering System |
Hastelloy Seamless Tube Grades
UNS | Short Term | Alloy No. | Alloy | ASTM | SAE / AMS | ASME | ATI Allvac | AFNOR (F) | Haynes | Thyssen-Krupp VDM |
N10624 | NiMo24Cr8 | 2.4710 | – | B 619 | – | – | – | – | B-10 Nimofer 6224 | – |
N10003 | NiMo16Cr7Fe5 | – | – | B 434, 366 | 5607, 5771 | – | ATI H-N | – | Hastelloy N | – |
N10665 | NiMo28 | 2.4617 | Alloy B-2 | B 333, 335, 619, 622, 626 | – | SB 333, 335, 619, 622, 626 | ATI HB-2 | NiMo28 | Hastelloy B-2 | Nimofer 6928 |
N10001 | NiMo3 | 2.4810 | Alloy B | B 333, 619, 622, 626 | – | SB 333, 619, 622, 626 | – | – | Hastelloy B | – |
N10002 | NiMo | – | Alloy C | B 494 | – | – | – | – | Hastelloy C | – |
N10675 / N10629 | NiMo29Cr | 2.4600 | Alloy B-3 / B-4 | B 333, 335, 619, 622, 626 | – | SB 333, 335, 619, 622, 626 | – | – | Hastelloy B-3 | Nimofer 6629 |
Hastelloy Alloy Welded Tube Surface Finish
Surface Finish | External Surface (OD) | Internal Surface (ID) |
Roughness Average (Ra) | Roughness Average (Ra) | |
μm | μinch | |
BA (Bright Annealed) | 0.8 | 32 |
AP (Annealed & Pickled) | 1.0 or Not defined | 40 or Not defined |
EP (Electro Polish) | 0.8 | 32 |
MP (Mechanical Polish) | 0.8 | 32 |
Hastelloy Tubing Sizes, Pressure & Pricing
ID | Max Pressure @72°F | OD | Wall Thickness | Temper | Price / 1 ft | Price / 3 ft | Price / 6 ft |
0.055″ | 9,000 psi | 1/8″ | 0.035″ | Soft | $12.46 | $34.89 | $62.30 |
0.18″ | 4,900 psi | 1/4″ | 0.035″ | Soft | $20.29 | $56.82 | $101.46 |
0.257″ | 2,900 psi | 5/16″ | 0.028″ | Soft | $23.31 | $65.27 | $116.56 |
0.305″ | 3,000 psi | 3/8″ | 0.035″ | Soft | $26.69 | $74.73 | $133.44 |
0.37″ | 4,200 psi | 1/2″ | 0.065″ | Soft | $53.27 | $149.16 | $266.35 |
0.277″ | 4,300 psi | 3/8″ | 0.049″ | Soft | $33.83 | $94.72 | $169.15 |
0.87″ | 2,100 psi | 1″ | 0.065″ | Soft | $77.70 | $217.57 | $388.52 |
0.555″ | 1,800 psi | 5/8″ | 0.035″ | Soft | $55.47 | $155.30 | $277.33 |
0.43″ | 2,200 psi | 1/2″ | 0.035″ | Soft | $47.73 | $133.66 | $238.67 |
0.62″ | 2,800 psi | 3/4″ | 0.065″ | Soft | $71.33 | $199.74 | $356.67 |
0.569″ | 1,400 psi | 5/8″ | 0.028″ | Soft | $37.44 | $104.84 | $187.22 |
0.834″ | 2,700 psi | 1″ | 0.083″ | Soft | $167.96 | $470.30 | $839.82 |
Hastelloy ERW Tube Schedule Chart
Size (in.) | OD (in.) | Pipe Schedule |
DBL, E.H. | ||
1/4 | 0.540 | – |
1/8 | 0.405 | – |
3/8 | 0.675 | – |
3/4 | 1.050 | 0.308, 2.441 |
1/2 | 0.840 | 0.294, 1.714 |
1 | 1.315 | 0.358, 3.659 |
1-1/2 | 1.900 | 0.400, 6.408 |
1-1/4 | 1.660 | 0.382, 5.214 |
2 | 2.375 | 0.436, 9.029 |
3 | 3.500 | 0.600, 18.58 |
2-1/2 | 2.875 | 0.552, 13.70 |
3-1/2 | 4.000 | 0.636, 22.85 |
4 | 4.500 | 0.674, 27.54 |
4-1/2 | 5.000 | 0.710, 32.53 |
5 | 5.563 | 0.750, 38.55 |
6 | 6.625 | 0.864, 53.16 |
7 | 7.625 | 0.875, 63.08 |
8 | 8.625 | 0.885, 72.42 |
9 | 9.625 | – |
10 | 10.750 | – |
Hastelloy Seamless Tube Weight Chart
Wall (mm) | Dimensions (mm) | Weight per metre (kg) | Wall (mm) | Dimensions (mm) | Weight per metre (kg) |
1.50 | 12.7 x 12.7 | 0.55 | 1.50 | 40 x 40 | 1.85 |
1.20 | 12.7 x 12.7 | 0.44 | 1.20 | 40 x 40 | 1.49 |
1.50 | 15 x 15 | 0.65 | 3.00 | 40 x 40 | 3.75 |
1.20 | 15 x 15 | 0.53 | 2.00 | 40 x 40 | 2.45 |
1.20 | 20 x 20 | 0.71 | 1.50 | 50 x 50 | 2.32 |
2.00 | 20 x 20 | 1.19 | 3.00 | 50 x 50 | 4.65 |
1.50 | 20 x 20 | 0.88 | 2.00 | 50 x 50 | 3.08 |
1.20 | 25 x 25 | 0.92 | 2.00 | 60 x 60 | 3.71 |
2.00 | 25 x 25 | 1.49 | 3.00 | 70 x 70 | 6.53 |
1.50 | 25 x 25 | 1.14 | 3.00 | 60 x 60 | 5.49 |
3.00 | 25 x 25 | 2.20 | 2.00 | 80 x 80 | 4.98 |
1.50 | 30 x 30 | 1.37 | 2.00 | 100 x 100 | 6.40 |
1.20 | 30 x 30 | 1.10 | 3.00 | 80 x 80 | 7.53 |
3.00 | 30 x 30 | 2.72 | 3.00 | 100 x 100 | 9.53 |
2.00 | 30 x 30 | 1.84 | – | – | – |
Tolerances of Hastelloy Coiled Tubing
Wall Thickness (in.) | O.D. (in.) | O.D. Tolerance (± in.) |
0.025 – 0.065 | 1 – 1 ½” | 0.008 |
Over 0.065 – 0.134 | 1 – 1 ½” | 0.010 |
0.025 – 0.065 | ½ – 1″ | 0.005 |
Over 0.065 – 0.134 | ½ – 1″ | 0.010 |
0.083 – 0.165 | 3 ½ – 5″ | 0.020 |
Over 0.165 – 0.220 | 3 ½ – 5″ | 0.025 |
0.032 – 0.065 | 2 – 2 ½” | 0.012 |
Over 0.065 – 0.109 | 2 – 2 ½” | 0.013 |
Over 0.109 – 0.165 | 2 – 2 ½” | 0.014 |
0.025 – 0.049 | 1 ½ – 2″ | 0.010 |
Over 0.049 – 0.083 | 1 ½ – 2″ | 0.011 |
Over 0.083 – 0.148 | 1 ½ – 2″ | 0.012 |
0.032 – 0.165 | 2 ½ – 3 ½” | 0.014 |
Over 0.165 – 0.220 | 2 ½ – 3 ½” | 0.020 |
Pressure Rating of Hastelloy Alloy Tube (psig @ 72°F)
Tube O.D. (in.) | Wall Thickness (in.) | 0.065 | 0.035 | 0.028 | 0.049 | 0.095 | 0.083 | 0.120 | 0.109 |
1 | Working Pressure | 2200 | – | – | – | 3400 | 2900 | 4300 | 3900 |
¼ | Working Pressure | 9500 | 4800 | 3700 | 7000 | – | – | – | – |
1/8 | Working Pressure | – | 10100 | 7900 | – | – | – | – | – |
½ | Working Pressure | 4400 | 2300 | – | 3200 | – | – | – | – |
5/16 | Working Pressure | 7300 | 3700 | – | 5400 | – | – | – | – |
3/8 | Working Pressure | 6100 | 3100 | – | 4400 | – | – | – | – |
¾ | Working Pressure | 3000 | – | – | 2200 | 4600 | 4000 | – | – |
Hastelloy X Tubing Gauge Chart
Tube O.D. | BWG 10 | BWG 9 | BWG 8 | BWG 7 | BWG 6 | BWG 5 | BWG 4 | BWG 3 | BWG 2 | BWG 1 | BWG 0 |
3/8″ | 0.107 | 0.079 | 0.045 | 0.015 | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
5/8″ | 0.357 | 0.329 | 0.295 | 0.265 | 0.219 | 0.185 | 0.149 | 0.107 | 0.057 | 0.025 | N/A |
½” | 0.232 | 0.204 | 0.170 | 0.140 | 0.094 | 0.060 | 0.024 | N/A | N/A | N/A | N/A |
¾” | 0.482 | 0.454 | 0.420 | 0.390 | 0.344 | 0.310 | 0.274 | 0.232 | 0.182 | 0.150 | 0.070 |
1″ | 0.732 | 0.704 | 0.670 | 0.640 | 0.594 | 0.560 | 0.524 | 0.482 | 0.432 | 0.400 | 0.320 |
7/8″ | 0.607 | 0.579 | 0.545 | 0.515 | 0.469 | 0.435 | 0.399 | 0.357 | 0.307 | 0.275 | 0.195 |
1 1/8″ | 0.857 | 0.829 | 0.795 | 0.765 | 0.719 | 0.685 | 0.649 | 0.607 | 0.557 | 0.525 | 0.445 |
1 1/2″ | 1.232 | 1.204 | 1.170 | 1.140 | 1.094 | 1.060 | 1.024 | 0.982 | 0.932 | 0.900 | 0.820 |
1 1/4″ | 0.982 | 0.954 | 0.920 | 0.890 | 0.844 | 0.810 | 0.774 | 0.732 | 0.682 | 0.650 | 0.570 |
1 3/4″ | 1.482 | 1.454 | 1.420 | 1.390 | 1.344 | 1.310 | 1.274 | 1.232 | 1.182 | 1.150 | 1.070 |
2 1/4″ | 1.982 | 1.954 | 1.920 | 1.890 | 1.844 | 1.810 | 1.774 | 1.732 | 1.682 | 1.650 | 1.570 |
2″ | 1.732 | 1.704 | 1.670 | 1.640 | 1.594 | 1.560 | 1.524 | 1.482 | 1.432 | 1.400 | 1.320 |
2 ½” | 2.232 | 2.204 | 2.170 | 2.140 | 2.094 | 2.060 | 2.024 | 1.982 | 1.932 | 1.900 | 1.820 |
3″ | 2.732 | 2.704 | 2.670 | 2.640 | 2.594 | 2.560 | 2.524 | 2.482 | 2.432 | 2.400 | 2.320 |
2 ¾” | 2.482 | 2.454 | 2.420 | 2.390 | 2.344 | 2.310 | 2.274 | 2.232 | 2.182 | 2.150 | 2.070 |
3 ¼” | 2.982 | 2.954 | 2.920 | 2.890 | 2.844 | 2.810 | 2.774 | 2.732 | 2.682 | 2.650 | 2.570 |
3 ¾” | 3.482 | 3.454 | 3.420 | 3.390 | 3.344 | 3.310 | 3.274 | 3.232 | 3.182 | 3.150 | 3.070 |
3 ½” | 3.232 | 3.204 | 3.170 | 3.140 | 3.094 | 3.060 | 3.024 | 2.982 | 2.932 | 2.900 | 2.820 |
4″ | 3.732 | 3.704 | 3.670 | 3.640 | 3.594 | 3.560 | 3.524 | 3.482 | 3.432 | 3.400 | 3.320 |
4 ½” | 4.232 | 4.204 | 4.170 | 4.140 | 4.094 | 4.060 | 4.024 | 3.982 | 3.932 | 3.900 | 3.820 |
4 ¼” | 3.982 | 3.954 | 3.920 | 3.890 | 3.844 | 3.810 | 3.774 | 3.732 | 3.682 | 3.650 | 3.570 |
4 ¾” | 4.482 | 4.454 | 4.420 | 4.390 | 4.344 | 4.310 | 4.274 | 4.232 | 4.182 | 4.150 | 4.070 |
5 ¼” | 4.982 | 4.954 | 4.920 | 4.890 | 4.844 | 4.810 | 4.774 | 4.732 | 4.682 | 4.650 | 4.570 |
5″ | 4.732 | 4.704 | 4.670 | 4.640 | 4.594 | 4.560 | 4.524 | 4.482 | 4.432 | 4.400 | 4.320 |
Physical Properties of Hastelloy C Tubing
Property | Value | Unit |
Specific Heat | 381 | J/kg•°C |
Specific Heat | 0.091 | Btu/lb•°F |
Density | 8.61 | g/cm³ |
Density | 0.311 | lb/in³ |
Permeability | ≤1.001 | 200 oersted (15.9 kA/m) |
Melting Range | 1351 – 1387 | °C |
Melting Range | 2464 – 2529 | °F |
Young’s Modulus | 209 | GPa |
Young’s Modulus | 30.3 | 10³ ksi |
Coefficient of Expansion | 12.42 | μm/m • °C (21 – 193°C) |
Coefficient of Expansion | 6.9 | 10⁶ in/in • °F (70 – 200°F) |
Electrical Resistivity | 1.215 | μΩ•m |
Electrical Resistivity | 730.7 | ohm•circ mil/ft |
Applications & Uses of Hastelloy Tubes
- Heat Exchangers and Condensers : Hastelloy Tubes are widely used in heat exchangers and condensers due to their excellent resistance to corrosion, oxidation, and high temperatures. They ensure efficient heat transfer and long service life in aggressive environments.
- Chemical Processing Equipment : In chemical plants, Hastelloy Tubing is preferred for handling acids, chlorides, and corrosive chemicals. Its superior strength and corrosion resistance help maintain safety and performance.
- Oil and Gas Industry : Hastelloy Tubes are used in oil and gas pipelines, offshore platforms, and refineries where high pressure, extreme temperatures, and corrosive fluids are common.
- Pressure Vessels and Piping Systems : These tubes are ideal for pressure vessels and industrial piping systems due to their high tensile strength, durability, and resistance to cracking and pitting.
- Power Generation Plants : Hastelloy Tubing is utilized in power plants for boiler components, heat recovery systems, and high-temperature piping applications.
- Pharmaceutical and Food Processing : Because of their cleanliness, smooth surface finish, and corrosion resistance, Hastelloy Tubes are suitable for pharmaceutical and hygienic processing systems.
- Instrumentation and Control Systems : Hastelloy Instrument Tubing is used for flow monitoring, ventilation lines, and control systems where precision and reliability are critical.
Get in Touch
Looking for high-quality Hastelly Tubes Tubes for your industrial project? Contact Kalpataru Piping Solution today to get expert assistance, technical support, and a competitive quote tailored to your requirements.
Request a QuotePeople Ask About Nuts Manufacturer
Hastelloy is a nickel-based alloy containing chromium and molybdenum, known for its superior corrosion resistance and high mechanical strength.
Seamless tubes are manufactured without weld joints and offer uniform strength, while welded tubes are formed by welding sheets or coils and are suitable for cost-effective applications.
Hastelloy is used in applications that require high corrosion resistance, strength, and durability in extreme temperatures and pressures, such as chemical processing equipment, oil and gas components, heat exchangers, aerospace parts, and power generation systems.
