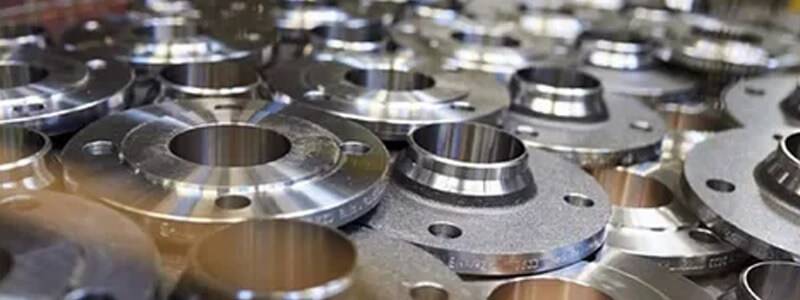

Nickel Flanges Manufacturer & Supplier in India
Kalpataru Piping Solution is a reputed manufacturer and supplier of good-quality nickel flanges that fulfil the high expectations of the current industries, such as nickel 200 flanges and nickel 201 flanges. The nickel flanges offered by our company come in a vast variety of sizes and pressure classes, as well as standards and custom specifications to cater to different project requirements. These flanges are also known to have high tensile strength, have a long service life, have a high surface finish, and have corrosion resistance and are able to be used under harsh operational environments. They are good for welding and workable, hence applicable in fabrication as well as in installation.
At Kalpaturu Piping Solution, nickel flanges are produced with high-grade raw materials and the best methods of production in regard to the national and international standards. Our modernised manufacturing plant is also constantly modernised by modern tools and machinery to maintain a standard of quality and precision. Nickel flanges have high resistance against the acidic and alkaline media, and hence, they are suitable in critical applications.
We provide nickel flanges to the oil and gas, petrochemicals, power generation, pharmaceuticals, aerospace, pulp and paper, food processing and heat exchanger systems industries. We subject our products to rigorous quality tests, including mechanical, chemical, hardness, and corrosion resistance tests. Every supply is accompanied by complete test certificates and documentation.
Kalpaturu Piping Solution keeps stocks to fulfil the immediate needs, and prices are competitive. Safe and convenient services to the customers in every part of the country are provided through secure packaging, effective logistics, and on-time delivery.
Table of content
- What is Nickel Flange?
- Nickel Flanges Material Grades
- Specification of Nickel Flanges
- Nickel Steel Flange Equivalent Material Grades
- Mechanical Properties of Pure Nickel Flanges
- Chemical Composition of Pure Nickel Alloy Flanges (%)
- Weight & Dimensions of 300 mm (12”) Pure Nickel Flanges
- Nickel Threaded Flange Dimensions Standard
- Size Chart of Nickel 201 Blind Flanges (Dimensions in Inches)
- People Ask About Nuts Manufacturer
What is Nickel Flange?
The Nickel Slip-on Flange is well suited to low-pressure as well as temperature applications, with the flange placed on the pipe and fillet and then welded on the inside and outside. High-nickel-alloy slip-on flange is made in a way that it possesses a hole on itself with an identical outside diameter of pipe through which a pipe can pass.
Nickel Flanges Material Grades
Specification of Nickel Flanges
These properties ensure the anchors can withstand thermal expansion, vibration, and heavy mechanical loads inside furnaces and kilns.| Parameter | Pure Nickel Alloy SORF Flange Details |
| Applicable Standards | ASME/ANSI B16.5, B16.47 Series A & B, B16.48, ASME B16.36, MSS SP-44, API 605, API 7S-15, API 7S-43, BS 4504, BS 10, BS 1560 (Part 3.1), EN 1092, DIN, GOST, ISO 7005-1, JIS B2220 |
| ANSI Pressure Classes | Class 150, 300, 600, 900, 1500, 2500 LBS |
| DIN Pressure Ratings | PN6, PN10, PN16, PN25, PN40, PN64 (6 Bar to 64 Bar) |
| JIS Pressure Ratings | 5K, 10K, 16K, 20K, 30K, 40K, 63K |
| UNI Pressure Ratings | 6 Bar, 10 Bar, 16 Bar, 25 Bar, 40 Bar |
| EN Pressure Ratings | 6 Bar, 10 Bar, 16 Bar, 25 Bar, 40 Bar |
| Surface Coating Options | Oil Black Finish, Anti-Rust Paint, Zinc Plated, Yellow Passivation, Hot Dip & Cold Dip Galvanized |
| Common Flange Types | Forged Flanges, Threaded / Screwed Flanges, Plate Flanges |
| Manufacturing Process | Forging, Heat Treatment, Precision Machining |
| Flange Face / Connection Types | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Lap Joint Face (LJF), Large & Small Male-Female, Tongue & Groove, Grooved Face |
| Special Design Availability | Manufactured strictly as per customer drawings and specifications |
| Size Range | 15 NB (1/2”) to 200 NB (8”) |
| Configuration Options | Equal and Reducing Types |
| Testing & Inspection Methods | Spectro Analysis, Hydrostatic Testing, Radiography (RT), Ultrasonic Testing (UT), Magnetic Particle Testing (MPT) |
| Test Certifications | EN 10204 3.1 / 3.2, Raw Material Certificate, 100% Radiography Report, Third Party Inspection Report |
| Compliance Certifications | NACE MR0103, NACE MR0175 Certified |
Nickel Steel Flange Equivalent Material Grades
| Standard Grade | UNS | Werkstoff Nr. | AFNOR | EN | JIS | BS | GOST |
| Nickel 200 | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | NA 11 | НП-2 |
| Nickel 201 | N02201 | 2.4068 | — | LC-Ni 99 | NW 2201 | NA 12 | НП-2 |
Mechanical Properties of Pure Nickel Flanges
| Property | Value |
| Density | 8.9 g/cm³ |
| Melting Point | 1446°C (2635°F) |
| Yield Strength (0.2% Offset) | 21,500 PSI / 148 MPa |
| Tensile Strength | 67,000 PSI / 462 MPa |
| Elongation | 45% |
Chemical Composition of Pure Nickel Alloy Flanges (%)
Nickel 200| Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| 99.0 Min | 0.15 Max | — | 0.35 Max | 0.10 Max | 0.40 Max | — | 0.01 Max | 0.25 Max | — |
| Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| Balance | 0.15 Max | — | 0.35 Max | 0.35 Max | 0.40 Max | — | 0.01 Max | 0.25 Max | — |
Weight & Dimensions of 300 mm (12”) Pure Nickel Flanges
| Standard | Class / Rating | OD (mm) | Bolt Circle (mm) | Bolts | Bolt Size | Bolt Hole Dia. (mm) |
| AS 4087 | PN14 | 455 | 406 | 12 | M20 | 22 |
| PN16 | 455 | 406 | 12 | M20 | 22 | |
| PN21 | 490 | 438 | 16 | M24 | 26 | |
| PN35 | 490 | 438 | 16 | M24 | 26 | |
| AS 2129 | Table C | 455 | 406 | 12 | 19 | 22 |
| Table D | 455 | 406 | 12 | 19 | 22 | |
| Table E | 455 | 406 | 12 | 22 | 26 | |
| Table F | 490 | 438 | 16 | 22 | 26 | |
| Table H | 490 | 438 | 16 | 22 | 26 | |
| Table J | 490 | 438 | 16 | 25 | 30 | |
| ANSI B16.5 | Class 150 | 483 | 432 | 12 | 22 | 25 |
| Class 300 | 521 | 451 | 16 | 29 | 32 | |
| Class 600 | 559 | 489 | 20 | 32 | 35 | |
| Class 900 | 610 | 533 | 20 | 35 | 38 | |
| Class 1500 | 673 | 571 | 16 | 51 | 54 | |
| DIN / ISO 7005 | PN6 | 440 | 395 | 12 | M20 | 22 |
| PN10 | 445 | 400 | 12 | M20 | 22 | |
| PN16 | 460 | 410 | 12 | M24 | 26 | |
| PN20 | 485 | 432 | 12 | M24 | 26 | |
| PN25 | 485 | 430 | 16 | M27 | 30 | |
| PN40 | 515 | 450 | 16 | M30 | 33 |
Nickel Threaded Flange Dimensions Standard
| Pipe Size (NPS) | Flange OD A (in.) | Raised Face Dia. B (in.) | Flange Thickness C (in.) | Hub Dia. at Base J (in.) | Hub Length L (in.) | Min. Thread Length N (in.) | No. of Bolt Holes | Approx. Weight (lbs) |
| 1/2 | 3 1/2 | 1 3/8 | 7/16 | 1 3/16 | 5/8 | 5/8 | 4 | 2 |
| 3/4 | 3 7/8 | 1 11/16 | 1/2 | 1 1/2 | 5/8 | 5/8 | 4 | 2 |
| 1 | 4 1/4 | 2 | 9/16 | 1 15/16 | 11/16 | 11/16 | 4 | 2 |
| 1 1/4 | 4 5/8 | 2 1/2 | 5/8 | 2 5/16 | 13/16 | 13/16 | 4 | 3 |
| 1 1/2 | 5 | 2 7/8 | 11/16 | 2 9/16 | 7/8 | 7/8 | 4 | 3 |
| 2 | 6 | 3 5/8 | 3/4 | 3 7/16 | 1 | 1 | 4 | 5 |
| 2 1/2 | 7 | 4 1/8 | 7/8 | 3 9/16 | 1 1/8 | 1 1/8 | 4 | 7 |
| 3 | 7 1/2 | 5 | 15/16 | 4 1/4 | 1 3/16 | 1 3/16 | 4 | 8 |
| 3 1/2 | 8 1/2 | 5 1/2 | 15/16 | 4 13/16 | 1 1/4 | 1 1/4 | 8 | 11 |
| 4 | 9 | 6 3/16 | 15/16 | 5 5/16 | 1 5/16 | 1 5/16 | 8 | 13 |
| 5 | 10 | 7 5/16 | 15/16 | 6 7/16 | 1 7/16 | 1 7/16 | 8 | 15 |
| 6 | 11 | 8 1/2 | 1 | 7 9/16 | 1 9/16 | 1 9/16 | 8 | 19 |
| 8 | 13 1/2 | 10 5/8 | 1 1/8 | 9 11/16 | 1 3/4 | 1 3/4 | 8 | 30 |
| 10 | 16 | 12 3/4 | 1 3/16 | 12 | 1 15/16 | 1 15/16 | 12 | 43 |
| 12 | 19 | 15 | 1 1/4 | 14 3/8 | 2 3/16 | 2 3/16 | 12 | 64 |
| 14 | 21 | 16 1/4 | 1 3/8 | 15 3/4 | 2 1/4 | 2 1/4 | 12 | 85 |
| 16 | 23 1/2 | 18 1/2 | 1 7/16 | 18 | 2 1/2 | 2 1/2 | 16 | 93 |
| 18 | 25 | 21 | 1 9/16 | 19 7/8 | 2 11/16 | 2 11/16 | 16 | 120 |
| 20 | 27 1/2 | 23 | 1 11/16 | 22 | 2 7/8 | 2 7/8 | 20 | 155 |
| 22 | 29 1/2 | 25 1/4 | 1 13/16 | 24 | 3 1/8 | 3 1/8 | 20 | 159 |
| 24 | 32 | 27 1/4 | 1 7/8 | 26 1/8 | 3 1/4 | 3 1/4 | 20 | 210 |
Size Chart of Nickel 201 Blind Flanges (Dimensions in Inches)
| Nominal Size | O.D. (O) | Hub Dia. at Base (X) | Raised Face Dia. (R) | Thickness (Q) | Length Thru Hub (Y) | Radius of Fillet (r) | Hub Dia. at Bevel (H) | Bore Dia. (B) | Lap Joint | Slip-On | Threaded / Socket | Socket Depth (Z) |
| 1/2″ | 3-1/2 | 1-3/16 | 1-3/8 | 7/16 | 5/8 | 5/8 | 1-7/8 | 1/8 | 0.84 | 0.90 | 0.88 | 3/8 |
| 3/4″ | 3-7/8 | 1-1/2 | 1-11/16 | 1/2 | 5/8 | 5/8 | 2-1/16 | 1/8 | 1.05 | 1.11 | 1.09 | 7/16 |
| 1″ | 4-1/4 | 1-15/16 | 2 | 9/16 | 11/16 | 11/16 | 2-3/16 | 1/8 | 1.32 | 1.38 | 1.36 | 1/2 |
| 1-1/4″ | 4-5/8 | 2-5/16 | 2-1/2 | 5/8 | 13/16 | 13/16 | 2-1/4 | 3/16 | 1.66 | 1.72 | 1.70 | 9/16 |
| 1-1/2″ | 5 | 2-9/16 | 2-7/8 | 11/16 | 7/8 | 7/8 | 2-7/16 | 1/4 | 1.90 | 1.97 | 1.95 | 5/8 |
| 2″ | 6 | 3-1/16 | 3-5/8 | 3/4 | 1 | 1 | 2-1/2 | 5/16 | 2.38 | 2.46 | 2.44 | 11/16 |
| 2-1/2″ | 7 | 3-9/16 | 4-1/8 | 7/8 | 1-1/8 | 1-1/8 | 2-3/4 | 5/16 | 2.88 | 2.97 | 2.94 | 3/4 |
| 3″ | 7-1/2 | 4-1/4 | 5 | 15/16 | 1-3/16 | 1-3/16 | 2-3/4 | 3/8 | 3.50 | 3.60 | 3.57 | 13/16 |
| 3-1/2″ | 8-1/2 | 4-13/16 | 5-1/2 | 15/16 | 1-1/4 | 1-1/4 | 2-13/16 | 3/8 | 4.00 | 4.10 | 4.07 | 7/8 |
| 4″ | 9 | 5-5/16 | 6-3/16 | 15/16 | 1-5/16 | 1-5/16 | 3 | 7/16 | 4.50 | 4.60 | 4.57 | 15/16 |
| 5″ | 10 | 6-7/16 | 7-5/16 | 15/16 | 1-7/16 | 1-7/16 | 3-1/2 | 7/16 | 5.56 | 5.69 | 5.66 | 15/16 |
| 6″ | 11 | 7-9/16 | 8-1/2 | 1 | 1-9/16 | 1-9/16 | 3-1/2 | 1/2 | 6.63 | 6.75 | 6.72 | 1-1/16 |
| 8″ | 13-1/2 | 9-11/16 | 10-5/8 | 1-1/8 | 1-3/4 | 1-3/4 | 4 | 1/2 | 8.63 | 8.75 | 8.72 | 1-1/4 |
| 10″ | 16 | 12 | 12-3/4 | 1-3/16 | 1-15/16 | 1-15/16 | 4 | 1/2 | 10.75 | 10.92 | 10.88 | 1-5/16 |
| 12″ | 19 | 14-3/8 | 15 | 1-1/4 | 2-3/16 | 2-3/16 | 4-1/2 | 1/2 | 12.75 | 12.92 | 12.88 | 1-9/16 |
| 14″ | 21 | 15-3/4 | 16-1/4 | 1-3/8 | 3-1/8 | 2-1/4 | 5 | 1/2 | 14.00 | 14.18 | 14.14 | 1-5/8 |
| 16″ | 23-1/2 | 18 | 18-1/2 | 1-7/16 | 3-7/16 | 2-1/2 | 5 | 1/2 | 16.00 | 16.19 | 16.16 | 1-3/4 |
| 18″ | 25 | 19-7/8 | 21 | 1-9/16 | 3-13/16 | 2-11/16 | 5-1/2 | 1/2 | 18.00 | 18.20 | 18.18 | 1-15/16 |
| 20″ | 27-1/2 | 22 | 23 | 1-11/16 | 4-1/16 | 2-7/8 | 5-11/16 | 1/2 | 20.00 | 20.25 | 20.20 | 2-1/8 |
| 24″ | 32 | 26-1/8 | 27-1/4 | 1-7/8 | 4-3/8 | 3-1/4 | 6 | 1/2 | 24.00 | 24.25 | 24.25 | 2-1/2 |
Applications & Uses of Nickel Flanges
- Oil & Gas Processing Systems: Nickel 201 flanges are widely used in upstream and downstream oil and gas facilities where resistance to corrosive fluids and high operating temperatures is essential.
- Chemical & Petrochemical Plants: These flanges perform reliably in reactors, pipelines, and storage units handling acids, alkalis, and aggressive chemical media.
- Power Generation & Thermal Plants: Nickel 201 flanges are suitable for heat exchangers, condensers, and boiler systems due to their excellent thermal stability and oxidation resistance.
- Pharmaceutical Manufacturing Units: Used in clean and contamination-sensitive environments, Nickel 201 flanges support high-purity process lines and controlled manufacturing systems.
- Food Processing & Beverage Industry: Their corrosion resistance and material purity make them suitable for hygienic piping systems in food and beverage processing plants.
- Heat Exchangers & Pressure Vessels: Nickel 201 flanges are ideal for high-temperature and high-pressure applications requiring long service life and mechanical strength.
- Marine & Offshore Applications: These flanges are used in marine piping systems exposed to moisture and corrosive environments, ensuring durability and safety.
- Aerospace & Advanced Engineering: Nickel 201 flanges are applied in aerospace and precision engineering systems where reliability and material performance are critical.
People Ask About Nuts Manufacturer
Nickel Alloy Flanges are used to connect pipes, valves, pumps, and equipment in systems exposed to corrosive chemicals, high temperatures, and pressure conditions.
Nickel 200 contains higher carbon content and is suitable for general applications, while Nickel 201 has lower carbon, making it better for high-temperature services to prevent graphite precipitation.
Yes, Nickel Flanges offer excellent resistance to a wide range of acids, alkalis, and neutral salts, making them ideal for chemical processing industries.
The three common types of flanges are Welding Neck, Slip-On, and Blind Flanges, each used based on pressure, temperature, and application requirements.
Nickel flanges are generally available from 1/2 inch (15 NB) to 24 inch (600 NB), with custom sizes and pressure ratings offered as per standards and project needs.
