Copper Nickel Pipe Fittings Manufacturers in India
Copper-nickel, also known as cupronickel, is an alloy that consists of copper and nickel mainly with traces of manganese and iron. This alloy makes copper nickel pipe fittings very strong, non-corrosive and simple to make. These fittings are also excellent in thermal stability and moderately strong at high temperatures and thus can be used in the application of marine engineering, heat exchangers, condensers and oil refineries.

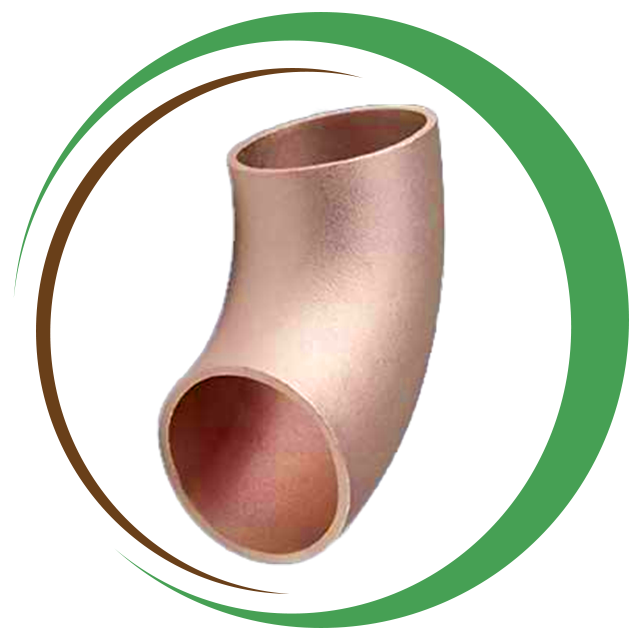

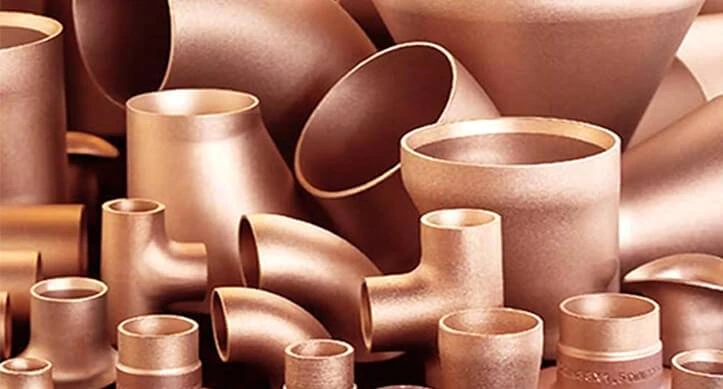

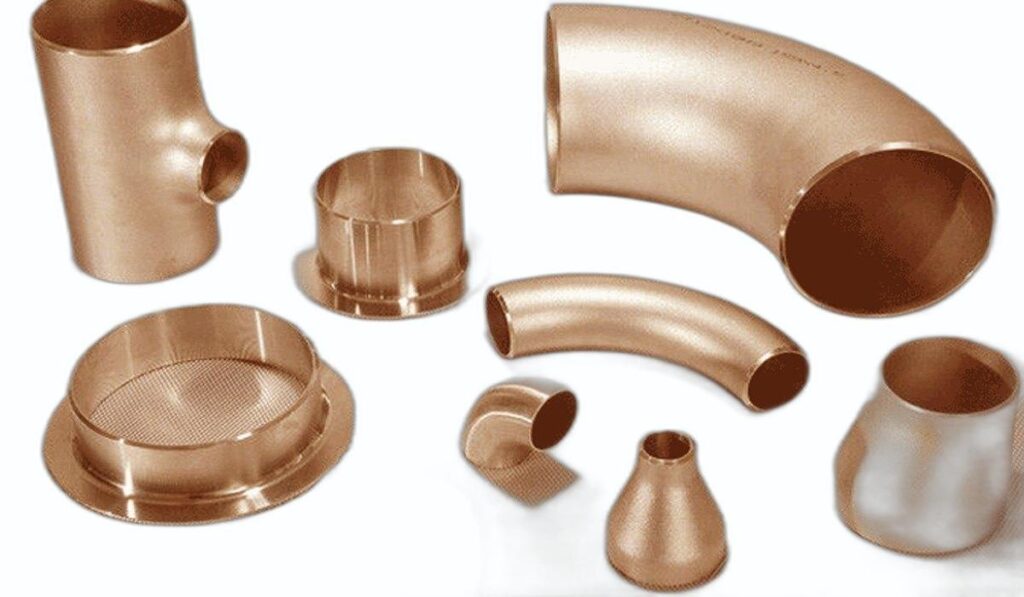

We are Kalpaturu Piping Solutions, which deals in copper nickel butt weld fittings with 25 per cent nickel, which are mainly used in the manufacture of coins, medals and other high-value applications. The 70/30 copper elbows are made of 70 per cent copper and 30 per cent nickel, and they enable the change of direction of fluid and gas flows. They are three-angle interchangeable in sizes, starting with NPS 1/2 up to NPS 48. The Cupro Nickel 90/10 Long Radius Elbows are made out of 90 per cent copper and 10 per cent nickel and designed so that they can be used in a variety of sizes, so that there is no leakage in the connections that may be on the industrial setups requiring this.

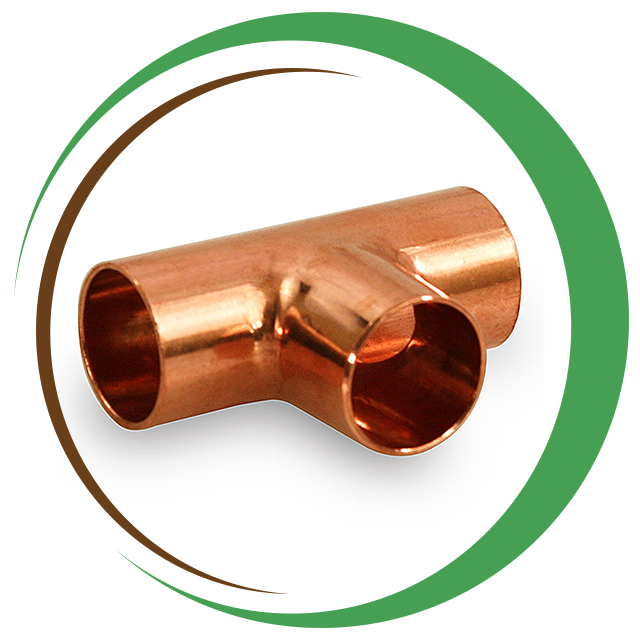

CUNI 90/10 tees are effectively known to separate or mix liquids using three holes and are available in female thread, solvent-weld and opposed solvent-weld forms. The 90/10 end caps secure the ends of the pipes, preventing moisture and mechanical damage during transportation or installation. Our team provides customers with high-quality copper nickel pipe fittings made of high-grade raw material and with innovative technologies in production.
To enquire for more information or to get a price for our copper nickel pipe fittings, call Kalpaturu Piping Solutions today.
Table of content
- Specification of Copper Nickel Pipe Fittings
- Types Of Copper Nickel Pipe Fittings
- Chemical Composition and Standards of Cupro Nickel Pipe Fittings
- Mechanical Properties of Copper Nickel Tube Fittings
- Equivalent Standards for Cupro Nickel Alloy Pipe Fittings
- Copper Nickel Pipe Fittings Applications & Uses
- People Ask About Copper Nickel Pipe Fittings Suppliers
Copper Nickel Pipe Fittings Material Grades
Specification of Copper Nickel Pipe Fittings
Specification | Details |
Size | Seamless Butt Weld Fittings: ½” – 10″ Welded Butt Weld Fittings: ½” – 48″ |
Size Range | ½” NB to 24″ NB in SCH 10s, 40s, 80s, 160s, XXS (DN6–DN100) ASTM A403 Stainless Steel Buttweld Fitting |
Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS1560, BS10 |
Type | DN15 – DN1200 |
Connection | Welding |
Manufacturing Process | Push, Press, Forge, Cast, etc. |
Origin & Mills | Japan, India, USA, Korea, Europe, Ukraine, Russia |
Key Markets & Industries | Bitumen upgraders, Heavy oil refineries, Nuclear power (mostly seamless), Petrochemicals, Acids |
Specialized Manufacturer Of | 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Caps, Stub Ends, Pipe Bends |
Test Certificates | EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc. |
Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS Available with NACE MR01-75 |
Bending Radius | R = 1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom (MSS SP-43) |
Elbows | Angle: 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D–40D Standard: ASME B16.9, ASME B16.28, ASME B16.25, 22.5°, 30°, 45°, 90°, 180°, MSS SP-75, JISB2312, JISB2313, DIN2605, JISB2311, BS, GB, ISO |
Export To | Canada, Ireland, Brazil, Dubai, Iran, Spain, Thailand, Egypt, Saudi Arabia, Singapore, Indonesia, Ukraine, Korea, Oman, India, USA, Peru, etc. |
Certificates Provided | Material Test Certificates (MTC) as per EN 10204 3.1 & 3.2, NACE MR0103, NACE MR0175 |
Types Of Copper Nickel Pipe Fittings
Chemical Composition and Standards of Cupro Nickel Pipe Fittings
We offer high-quality cupro nickel pipe fittings available in 90/10 and 70/30 grades. The chemical composition of these alloys ensures durability, corrosion resistance, and optimal performance in marine, industrial, and heat exchanger applications.
Grade | Cu (%) | Mn (%) | Pb (%) | Ni (%) | Fe (%) | Zn (%) |
88.6 min | 1.0 max | 0.05 max | 9–11 | 1.8 max | 1 max | |
Cupro Nickel 70/30 | 65 min | 1.0 max | 0.05 max | 29–33 | 0.4–1.0 max | 1 max |
We are a trusted supplier of 70/30 Copper Nickel Reducers and have a global network for Cupro Nickel 90/10 Long Radius Elbows, ensuring timely delivery worldwide.
Mechanical Properties of Copper Nickel Tube Fittings
Property | Value |
Density | 0.323 lb/in³ at 68°F |
Melting Point | 2260°F |
Tensile Strength | 50,000 psi |
Yield Strength (0.2% Offset) | 20,000 psi |
Elongation | 30% |
Equivalent Standards for Cupro Nickel Alloy Pipe Fittings
Grade | Werkstoff Nr. | UNS |
2.0872 | C70600 | |
Cupro Nickel 70/30 | 2.0882 | C71500 |
70/30 Copper Fittings Weight Chart
DN | Schedule 10S (kg) | Schedule 40S (kg) | Schedule 80S (kg) |
900 Elbow | 450 Elbow | Equal Tee | |
8 | 0.02 | 0.01 | 0.03 |
10 | 0.03 | 0.02 | 0.05 |
15 | 0.06 | 0.03 | 0.09 |
20 | 0.07 | 0.03 | 0.13 |
25 | 0.14 | 0.08 | 0.28 |
32 | 0.23 | 0.11 | 0.49 |
40 | 0.30 | 0.17 | 0.68 |
50 | 0.50 | 0.25 | 0.85 |
65 | 0.85 | 0.48 | 1.41 |
80 | 1.25 | 0.63 | 1.77 |
90 | 1.70 | 0.75 | 2.67 |
100 | 2.10 | 1.08 | 3.46 |
150 | 5.45 | 2.72 | 8.07 |
200 | 10.20 | 5.33 | 15.65 |
250 | 18.15 | 9.75 | 26.46 |
300 | 25.80 | 13.62 | 39.46 |
ASME B16.9 CUNI 90/10 Fittings Size Chart
| Nominal Pipe Size | Outside Diameter (mm) | Outside Diameter (inches) | 90° Elbows Long Radius (Center to Face, in) | 90° Elbows Short Radius (Center to Face, in) | 45° Elbows Long Radius (Center to Face, in) | 180° Returns Radius (in) | 180° Returns Center to Center (in) | 180° Returns Back to Face (in) |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | – |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | – |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | – |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | – |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Cupro Nickel Pipe Fittings Physical Properties
Cu-Ni Alloy | UNS / Def Stan | Hardness (Hv) | % Elongation | Tensile Strength (N/mm²) | 0.2% Proof Strength (N/mm²) |
70/30 | C71500 | 100 | 35 | 350 | 120 |
C70600 | 90 | 30 | 300 | 100 |
ASME B16.9 CUNI 90/10 Fittings Size Chart
Nominal Pipe Size | Outside Diameter (mm) | Outside Diameter (inches) | 90° Elbows Long Radius (in) | 90° Elbows Short Radius (in) | 45° Elbows Long Radius (in) | 180° Returns Radius (in) | 180° Returns Center to Center (in) | 180° Returns Back to Face (in) |
1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | – |
3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | – |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | – |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | – |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
70/30 Copper Fittings Weight Chart
DN | Schedule 10S (kg) | Schedule 40S (kg) | Schedule 80S (kg) |
900 Elbow | 450 Elbow | Equal Tee | |
8 | 0.02 | 0.01 | 0.03 |
10 | 0.03 | 0.02 | 0.05 |
15 | 0.06 | 0.03 | 0.09 |
20 | 0.07 | 0.03 | 0.13 |
25 | 0.14 | 0.08 | 0.28 |
32 | 0.23 | 0.11 | 0.49 |
40 | 0.30 | 0.17 | 0.68 |
50 | 0.50 | 0.25 | 0.85 |
65 | 0.85 | 0.48 | 1.41 |
80 | 1.25 | 0.63 | 1.77 |
90 | 1.70 | 0.75 | 2.67 |
100 | 2.10 | 1.08 | 3.46 |
150 | 5.45 | 2.72 | 8.07 |
200 | 10.20 | 5.33 | 15.65 |
250 | 18.15 | 9.75 | 26.46 |
300 | 25.80 | 13.62 | 39.46 |
Cupro Nickel 90/10 Reducers Dimensions
Nominal Pipe Size | Outside Diameter (mm) | Outside Diameter (inches) | Reduced From (inches) | Reduced To (inches) | Concentric & Eccentric Length (inches) |
1/2 | 21.3 | 0.840 | 1/4 | 3/8, 1/2 | 1 1/2, 3/8, 1 1/2 |
3/4 | 26.7 | 1.050 | 3/8, 1/2 | 1/2, 2 | 2 |
1 | 33.4 | 1.315 | 3/8, 1/2, 3/4 | 1/2, 2 | 2 |
1 1/4 | 42.2 | 1.660 | 1/2, 3/4, 1 | 2, 2 1/2 | 2 |
1 1/2 | 48.3 | 1.900 | 1/2, 3/4, 1, 1 1/4 | 2 1/2 | 2 1/2 |
2 | 60.3 | 2.375 | 3/4, 1, 1 1/4, 1 1/2 | 3 | 3 |
2 1/2 | 73.0 | 2.875 | 1, 1 1/4, 1 1/2, 2 | 3 1/2 | 3 1/2 |
3 | 88.9 | 3.500 | 1, 1 1/2, 2, 2 1/2 | 3 1/2 | 3 1/2 |
3 1/2 | 101.6 | 4.000 | 1 1/4, 1 1/2, 2, 2 1/2, 3 | 4 | 4 |
4 | 114.3 | 4.500 | 1 1/2, 2, 2 1/2, 3, 3 1/2 | 4 | 4 |
5 | 141.3 | 5.563 | 2, 2 1/2, 3, 3 1/2, 4 | 5 | 5 |
6 | 168.3 | 6.625 | 2 1/2, 3, 3 1/2, 4, 5 | 5 1/2 | 5 1/2 |
8 | 219.1 | 8.625 | 3, 3 1/2, 4, 5, 6 | 6 | 6 |
10 | 273.1 | 10.750 | 4, 5, 6, 8 | 7 | 7 |
12 | 323.9 | 12.750 | 5, 6, 8, 10 | 8 | 8 |
Copper Nickel Pipe Fittings Applications & Uses
- Marine Industry
- Oil & Gas Industry
- Power Plants
- Chemical & Petrochemical Industry
- Industrial Manufacturing
People Ask About Copper Nickel Pipe Fittings Suppliers
Copper Nickel Pipe Fittings are corrosion-resistant fittings made from copper and nickel alloys, available in 90/10 and 70/30 compositions, suitable for marine, chemical, and industrial piping systems.
Common types include elbows (90° and 45°), tees, reducers (concentric and eccentric), crosses, end caps, and stub ends.
70/30 Cu-Ni has higher nickel content for superior corrosion resistance and strength, while 90/10 Cu-Ni is ideal for moderate strength and standard marine applications.
These fittings are widely used in marine, oil & gas, power plants, chemical, petrochemical, and industrial manufacturing.
