Titanium tube fittings Manufacturer, Supplier & Stockist

Kalpataru Piping Solution is a reliable manufacturer and supplier of high-end titanium tube fittings based in India. Our fittings are engineered to provide a high level of corrosion resistance, lightweight performance, and superior strength designed to meet the most demanding capabilities of industries that require a leak-free, reliable performance. Kalpataru Piping Solution manufactures Titanium Grade 2 Tube Fittings and Titanium Grade 5 Tube Fittings with high standards of production and quality assurance; each is manufactured with the industrial standards of the globe so that they are excellent in performing their duties in aerospace, marine, chemical processing, desalination, and medical segments where quality and consistent performance are very important.

The titanium tube fittings that we manufacture are mainly made out of high-grade titanium, which has been alloyed with such elements as aluminium and vanadium. This special structure gives it a high corrosion resistance, low density and high strength-to-weight ratio. The fittings possess excellent mechanical characteristics, such as high tensile strength, toughness, and extreme temperature resistance. They are also non-magnetic and biocompatible, and they do not fatigue, thus making them even more suitable in high-demand industrial and medical applications.

We have placed importance on long-term performance and low maintenance at Kalpataru Piping Solution, and we ensure that our titanium tube fittings give reliable service in a broad variety of life-or-death applications. Through the integration of precision engineering, tough material and expertise in the industry, we can provide products that constantly surpass expectations, enabling the business to operate safely and efficiently in harsh environments.

Titanium Instrumentation Tube Fittings Supplier in Mumbai, Titanium Back Ferrule Manufacturer in Mumbai, Titanium Double Ferrule Tube Fittings Price List in Mumbai, Titanium Single Ferrule Fittings In India, Titanium Bulkhead Union, Titanium Instrumentation Fittings Manufacturer in India, Titanium Ferrule Fittings Exporter in Mumbai, Titanium Compression Tube Fittings in Mumbai, India.

Specification of Titanium tube fittings

SpecificationDetails
StandardsASTM B366 / ASME SB366
Size1/16 in. to 2 in. (imperial), 2 mm to 50 mm (metric)
Dimensional Range1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working PressureUp to 2000–6000 PSI (depends on tubing material)
Thread TypeNPT – ASME B1.20.1, SAE AS71051; ISO/BSP Parallel – ISO 228; ISO/BSP Tapered – ISO 7, BS EN 10226-1; SAE (Unified) – ASME B1.1
End ConnectionsNPT, ISO/BSP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types / ConfigurationsTube-to-Union, Tube-to-Male, Tube-to-Female, Instrument Pipe Fittings, Accessories; Straights, Elbows, Tees, Crosses, Caps, Plugs, Nuts, Ferrules
Equivalent BrandsSWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure8 MPa / 1200 PSI (depending on tubing material)
Working Temperature-40°C to 250°C (-40°F to 482°F)
Applications / UsesConnects imperial or metric tubes, or both; ideal for petroleum, power, chemical, construction, gas, metallurgy, shipbuilding; withstands extreme temperatures and pressures; compatible with aggressive fluids; suitable for gas lines, plumbing, and industrial process lines

Types of Titanium Tube Fittings

Titanium Tube Fittings

Titanium Tube Fittings

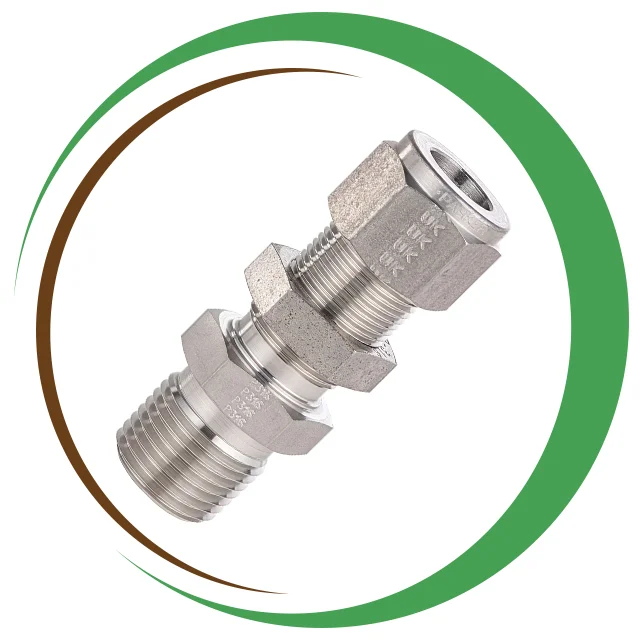

Titanium Bulkhead Union

Titanium Bulkhead Union

Titanium Female Adapter

Titanium Female Adapter

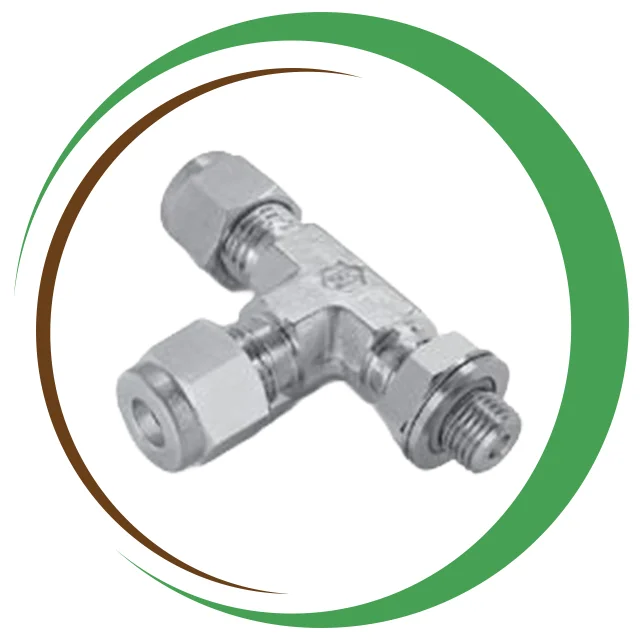

Titanium Female Branch Tee

Titanium Female Branch Tee

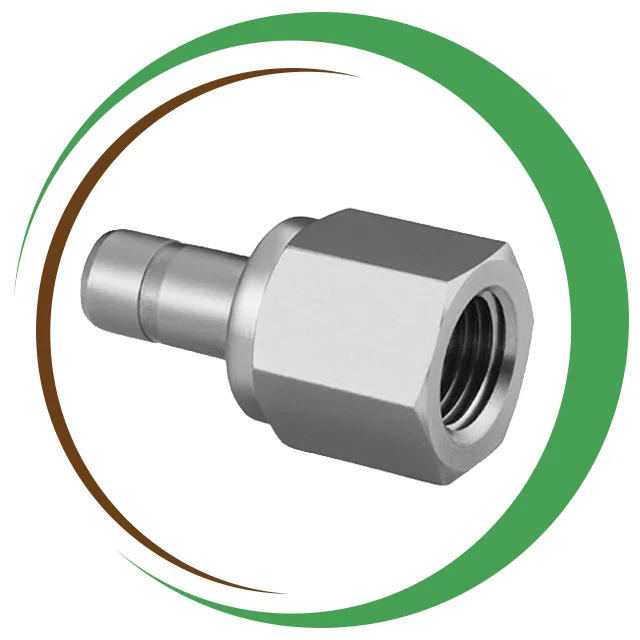

Titanium Instrumentation Tube Fittings

Titanium Instrumentation Tube Fittings

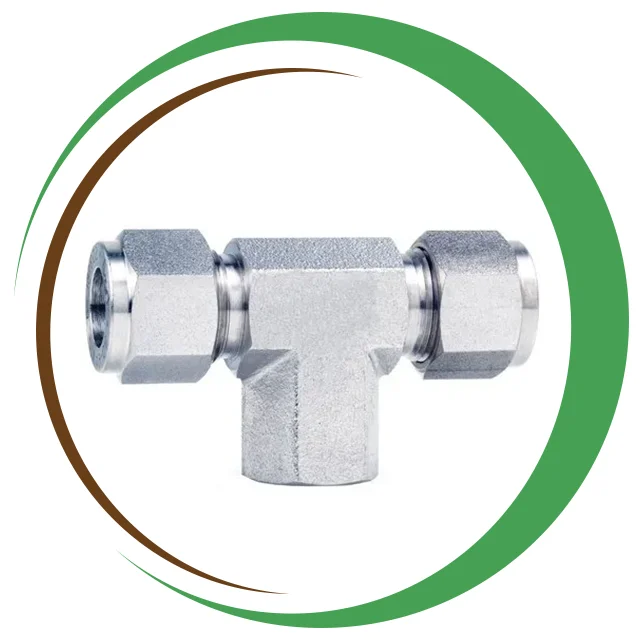

Titanium Male Run Tee

Titanium Male Run Tee

Chemical Composition of Titanium Tube Fittings

Grade Ti C Fe H N O Al V
Titanium Tube Fittings 99.2 min 0.1 max 0.3 max 0.015 max 0.03 max 0.25 max

Mechanical Properties of Titanium Tube Fittings

Property Value
Density 4.5 g/cm³
Melting Point 1665 °C (3030 °F)
Tensile Strength 49,900 Psi / 344 MPa
Yield Strength (0.2% Offset) 39,900 Psi / 275 MPa
Elongation 20%

Equivalent Grades of Titanium Tube Fittings

Standard Werkstoff Nr. UNS
Titanium Tube Fittings 3.7035 R50400

Titanium Tube Fittings Sizes

Type Size Pressure Rating Threads
Seamless Compression Fittings ⅛” to 2” 3000–10000 PSI NPT, BSPT, BSPP
Ti Grade 2/5 Welded Compression Fittings & Adapters 24” to 96” or Custom 3000–10000 PSI NPT, BSPT, BSPP

Titanium Compression Tube Fittings Dimensions

OD (Fraction Inch) OD Actual (inches) Thread Designation – Nominal Size (inches) Thread Per Inch (NPT) Thread Per Inch (BSP)
5/16 0.3125 1/16 27 28
13/32 0.405 1/8 27 28
35/64 0.540 1/4 18 19
43/64 0.675 3/8 18 19
27/32 0.840 1/2 14 14
1-3/64 1.050 3/4 14 14
1-5/16 1.315 1 11-1/2 11
1-21/32 1.660 1-1/4 11-1/2 11
1-29/32 1.900 1-1/2 11-1/2 11
2-3/8 2.375 2 8 11
2-7/8 2.875 2-1/2 8 11
3-1/2 3.5 3 8 11
4 4.0 3-1/2 8 11
4-1/2 4.5 4 8 11
5-5/8 5.563 5 8 11
6-5/8 6.718 6 8 11

Applications & Uses of Titanium Tube Fittings

Hastelloy Tube Fittings are widely used in industries where corrosion resistance and high durability are critical:
  • Aerospace: Fuel lines, hydraulic systems, and structural tubing.
  • Marine: Seawater piping, desalination plants, and shipbuilding.
  • Chemical & Petrochemical: Corrosion-resistant process lines and valves.
  • Medical: Surgical instruments, implants, and biocompatible tubing.
  • Industrial: High-pressure systems, heat exchangers, and manufacturing equipment.

People Ask About Nuts Manufacturer

Titanium Tube Fittings are used in aerospace, marine, chemical processing, desalination, and medical industries for their corrosion resistance, strength, and durability.
Titanium offers high strength-to-weight ratio, excellent corrosion resistance, biocompatibility, and can withstand extreme temperatures, making it ideal for demanding industrial applications.
Yes, due to their non-magnetic and biocompatible properties, they are widely used in medical devices, surgical equipment, and other healthcare systems.
Absolutely. Titanium Tube Fittings resist corrosive chemicals and high temperatures, making them suitable for chemical, desalination, and industrial applications.
