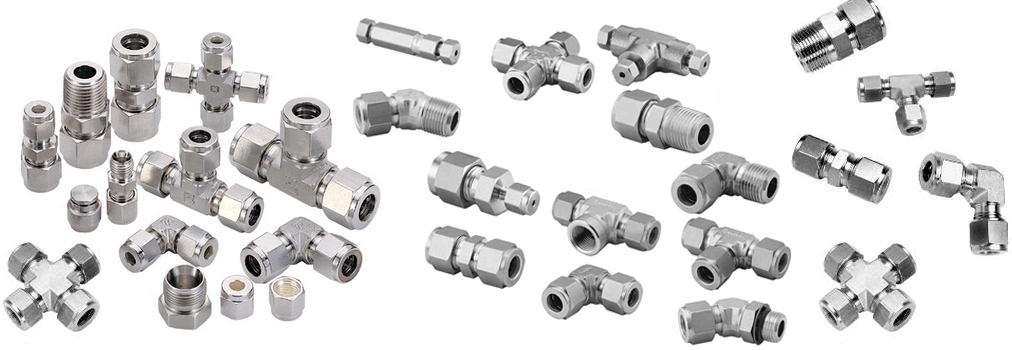

Stainless Steel Tube Fittings Manufacturer in India
Kalpataru Piping Solution is a reputable and established producer and distributor of high-quality stainless steel tube fittings in India, which produces precisely engineered products to serve global industries. We develop our stainless steel fittings based on well-regulated chemical compositions that increase their durability, resistance to corrosion, and overall performance in harsh environments. In our SS Tube Fittings, chromium is the main alloying element so that the strong passivated oxide covering offers long-term reliability since the surface is not susceptible to oxidation and rusting.
As a way of satisfying the various needs of industries, we produce stainless steel compression fittings, push-in fittings, pneumatic fittings, tube nuts, and sleeves to meet the different grades. Our fittings can be alloyed with molybdenum and are able to resist reducing acids and other harsh chemicals as well, and thus are suitable for chemical processing, manufacturing of fertilizers, and sea use. Such grades are also extremely effective in the presence of phosphoric and nitric acids at room temperatures.
Wherever possible, we absorb nitrogen in some of our stainless steel 304 tube fittings grades in environments likely to be exposed to pitting or chloride attack. This addition also contributes greatly to pitting resistance and strength, and so our fittings are suitable for high-pressure and high-temperature utilization.
At Kalpataru Piping Solution, we have integrated high-level production, rigorous quality testing, and international standards to provide reliable, high-performance tube fittings in stainless steel that can be used in all types of industries.
- What are Stainless Steel Tube Fittings?
- Specification of Stainless Steel Tube Fittings
- Stainless Steel Tube Fittings Types
- Equivalents of Stainless Steel Tube Fittings
- Stainless Steel Tube Fittings Chemical Composition
- Mechanical Properties of Stainless Steel Tube Fittings
- Applications of Stainless Steel Tube Fittings
- FAQs about Stainless Steel Tube Fittings
What are Stainless Steel Tube Fittings
Specification of Stainless Steel Tube Fittings
| Category | Details |
| ASME / Material Standards | ASME B1.1 – Covers dimensional and material guidelines for stainless steel tube fittings |
| Material Specifications | Straight Fittings & Tube Adapters: ASTM A276 / A479, ASME SA276 / SA479 Elbows, Crosses & Tees: ASTM A182, ASME SA182 |
| Pressure Ratings (PSI & Bar) | High-Pressure & Low-Pressure Options 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI 400 Bar rating for selective fittings |
| Available Types | ISO/BP, NPT, AN, SAE/MS, weld-end fittings, sanitary connectors, and stainless steel tube adapters |
| Pipe Thread Standards | NPT – ASME B1.20.1, MIL-P-71058 BSPP – ISO 228, BS 2779, JIS B 0202 BSPT – ISO 7, BS 21, JIS B 0203 ISO/BSP Gauge (ISO 228, BS 2779) Unified SAE – ASME B1.1 |
| Alternate Trade Names | Stainless Steel Instrumentation Fittings SS 304 Pneumatic Fittings 304/304L Compression & Hydraulic Fittings DIN 1.4301 / 1.4306 Instrumentation Fittings ASTM A182 304 Double Ferrule Fittings UNS S30400 / 316L Ferrule & Twin Ferrule Fittings SS 310S JIC Fittings SS 321 Flare Fittings |
| Key Features | Simple assembly & re-tightening Wide size and configuration range Ideal for instrumentation and process control Zero-leak sealing even under vibration & vacuum Gaugeable design Excellent gas-tight performance Fully compatible with Swagelok designs |
| Certifications | ECE R110, EC-79, NACE MR0175 / ISO 15156, NACE MR0103 |
| Brands Stocked | Swagelok, Parker, DK-LOK, Letlok, DUOLOK, GYROLOK, TYLOK, BILOK |
| Primary Port | Mumbai, India |
| Other Available Grades | 6 Moly, 254 SMO |
Stainless Steel Tube Fittings Types

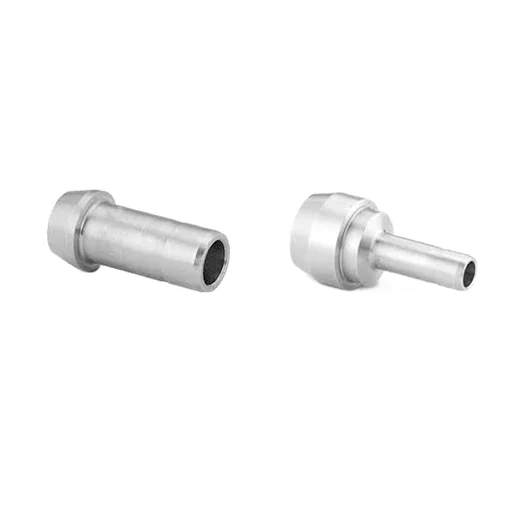

ASTM A276 SS 304 Port Connector

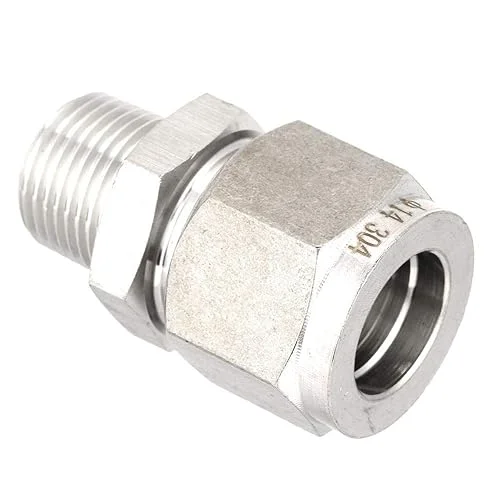

SS 304 Tube to Female Pipe Thread

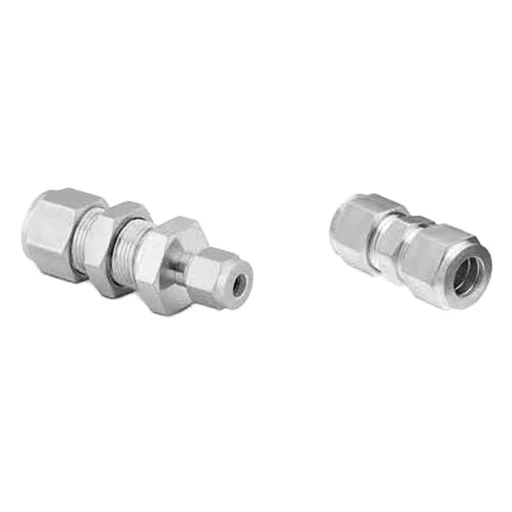

SS 304L Tube to Tube

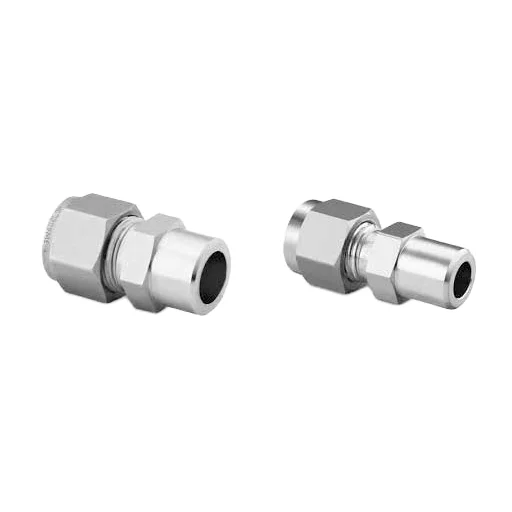

SS DIN 1.4301 Weld Fitting

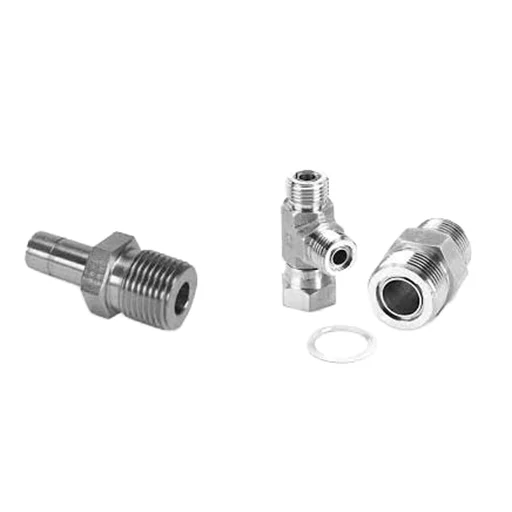

SS DIN 1.4306 Hose Fitting

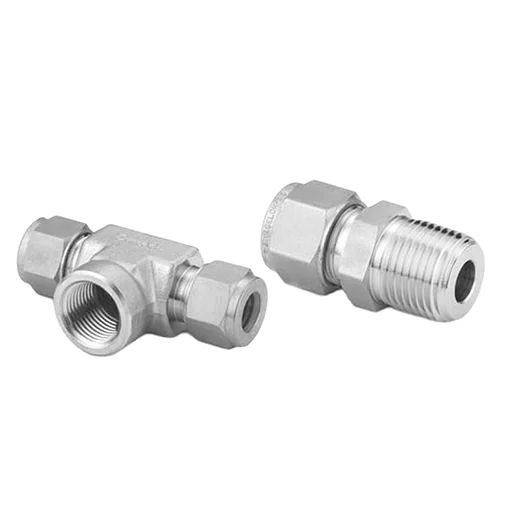

Stainless Steel Tube Elbow

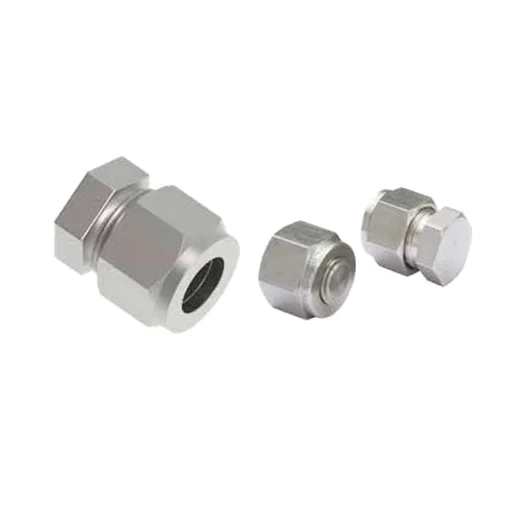

304 Austenitic Stainless Steel Tube Ends

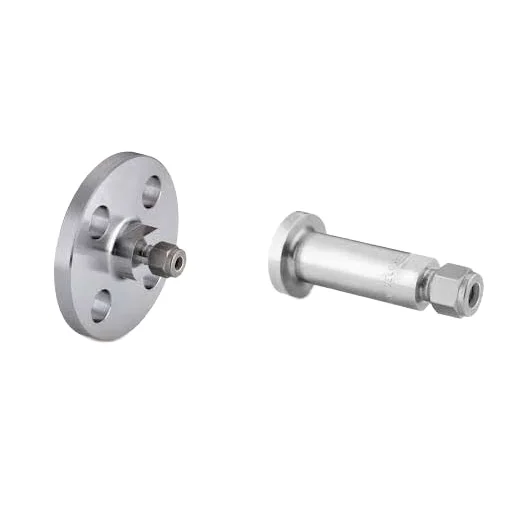

ASME SA276 SS 304 Special Fitting

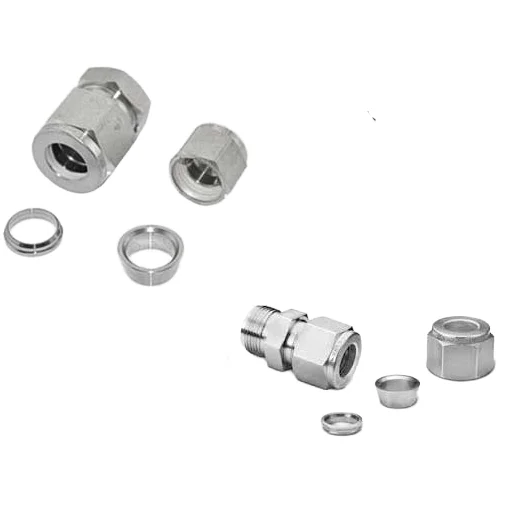

ASTM A182 SS 304 Tube Fitting Accessories
Equivalents of Stainless Steel Tube Fittings
|
Grade |
UNS |
WNR / DIN |
AFNOR |
EN Standard |
JIS |
BS |
GOST |
|---|---|---|---|---|---|---|---|
|
SS 304 |
S30400 |
1.4301 |
Z7CN18-09 |
X5CrNi18-10 |
SUS 304 |
304S31 |
08Х18Н10 |
|
SS 304L |
S30403 |
1.4306 / 1.4307 |
Z3CN18-10 |
X2CrNi18-9 / X2CrNi19-11 |
SUS 304L |
304S11 |
03Х18Н11 |
|
SS 304H |
S30409 |
1.4301 |
– |
– |
– |
– |
– |
Stainless Steel Tube Fittings Chemical Composition
|
Material Grade |
C (%) |
Mn (%) |
Si (%) |
P (%) |
S (%) |
Cr (%) |
Mo (%) |
Ni (%) |
N (%) |
|---|---|---|---|---|---|---|---|---|---|
|
A182 F304 |
≤ 0.08 |
≤ 2.00 |
≤ 0.75 |
≤ 0.045 |
≤ 0.030 |
18 – 20 |
– |
8 – 11 |
– |
|
A182 F304L |
≤ 0.035 |
≤ 2.00 |
≤ 1.00 |
≤ 0.045 |
≤ 0.030 |
18 – 20 |
– |
8 – 13 |
– |
|
A182 F304H |
≤ 0.10 |
≤ 2.00 |
≤ 0.75 |
≤ 0.045 |
≤ 0.030 |
18 – 20 |
– |
8 – 10.5 |
– |
Mechanical Properties of Stainless Steel Tube Fittings
|
Property |
Value |
|---|---|
|
Density |
8.0 g/cm³ |
|
Melting Temperature |
Approx. 1400°C (≈ 2550°F) |
|
Tensile Strength |
75,000 psi (≈ 515 MPa) |
|
Yield Strength (0.2% Offset) |
30,000 psi (≈ 205 MPa) |
|
Elongation |
Around 40% |
Applications of Stainless Steel Tube Fittings
- Oil & Gas Industry: Used in pipelines, control systems, and high-pressure fluid handling.
- Chemical & Petrochemical Plants: Ideal for corrosive fluid transfer, acid processing, and instrumentation lines.
- Pharmaceutical & Biotechnology: Ensures contamination-free flow in hygienic and sterile environments.
- Food & Beverage Processing: Suitable for clean piping systems, sanitary lines, and beverage transfer.
- Power Generation: Used in boiler lines, steam systems, and turbine instrumentation.
- Water Treatment Plants: Suitable for desalination, high-pressure water lines, and filtration systems.
- Automotive & Aerospace: Applied in fuel lines, hydraulic systems, and engine test setups.
- Marine & Offshore: Performs well in saltwater environments, pump lines, and corrosion-prone areas.
- HVAC & Refrigeration: Used for pressure control lines, cooling systems, and gas connections.
- Instrumentation & Control Panels: Ensures precise flow regulation in monitoring and measuring systems.
FAQs
Stainless steel tube fittings are used to connect, control, and direct the flow of liquids or gases in industrial piping systems. They ensure leak-free, high-performance connections in critical applications.
They are widely used in oil & gas, chemical processing, food & beverage, pharmaceuticals, water treatment, marine, power generation, and instrumentation systems.
SS 304, 304L, 316, and 316L are the most popular grades due to their corrosion resistance, strength, and suitability for high-pressure environments.
Common types include elbows, tees, unions, couplings, adapters, compression fittings, ferrule fittings, and push-to-connect fittings.
